IDEAL 46-369 Heavy-Wall Heat Shrink, 9IN, 500 - 1000 MCM, 5 Pack

Product Description

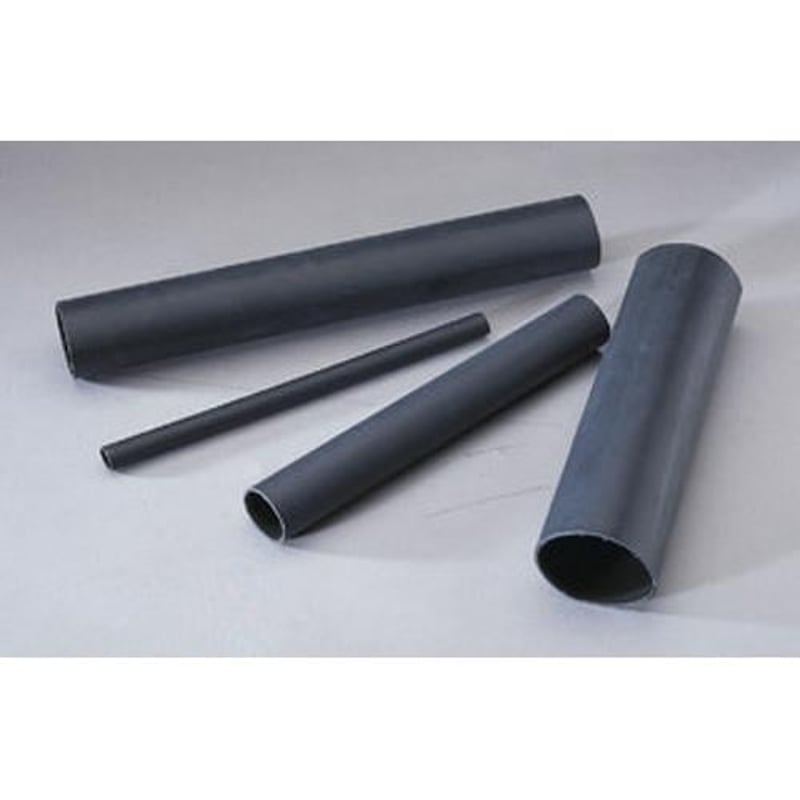

IDEAL 46-369 Heavy-Wall Heat Shrink Tubing offers reliable insulation for electrical splices in various environments. This product features a shrink ratio of 3:1, suitable for cable sizes ranging from five hundred to one thousand MCM. The heat shrink tubing is nine inches long and comes in a pack of five.

• Shrinkable tubing with a 3:1 shrink ratio
• Continuous operating temperature between negative fifty-five to one hundred ten degrees Celsius
• Meets various industry standards including UL 486D and CSA C22.2

Product Highlights

This heavy-wall heat shrink tubing provides excellent flame retardancy and ensures complete protection for electrical connections.

Product Information

Standard Information

• Brand: IDEAL
• Part Number: 23703

Technical Specifications

• Shrink Ratio: 3:1
• Thickness: 0.160 IN
• Length: 9 IN
• Volume Resistivity: 1013 OHM -CM MIN
• Dielectric Strength: 500 V/MIL (20 KV MINT)
• Temperature Range: -55 to 110 DEG C
• Minimum Shrink Temperature: 120 to 250 DEG C
• Cable Range: 500 - 1000 MCM
• Ultimate Elongation: 600 PCT MIN
