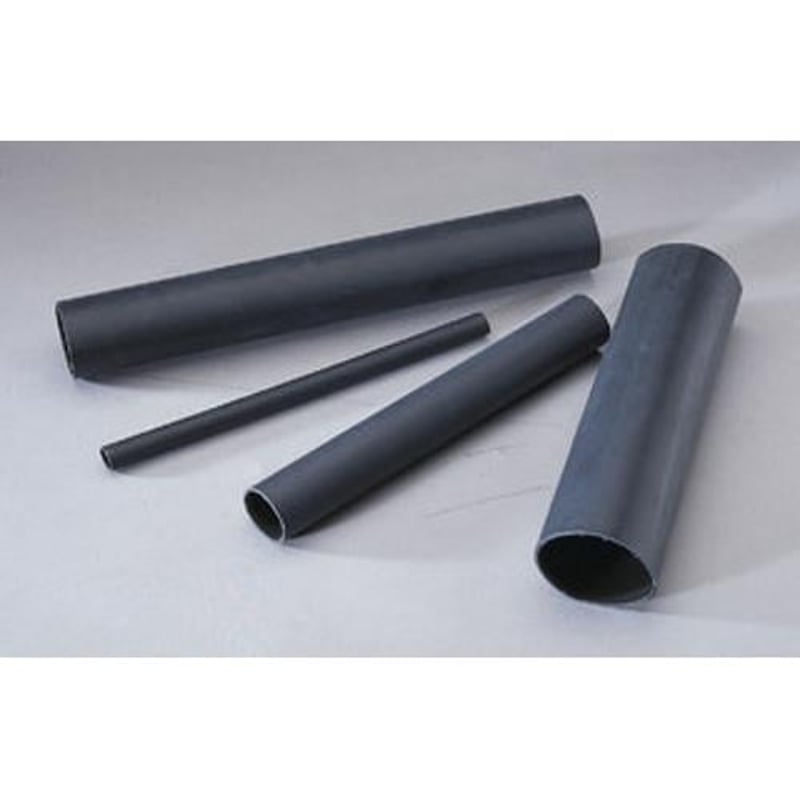

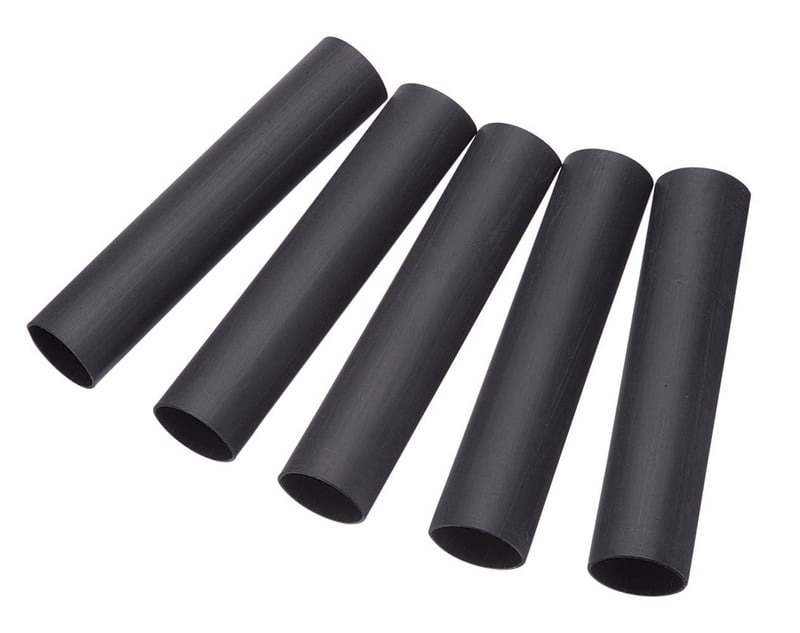

IDEAL 46-356 Heavy-Wall Heat Shrink, 9IN, 4/0 - 400 MCM, 5 Pack

Product Description

The IDEAL 46-356 Heavy-Wall Heat Shrink Tubing offers reliable protection for electrical splices. This heat shrinkable tube is designed for use in various environments. It has a shrink ratio of 3:1, ensuring a snug fit for different wire sizes. The maximum cable range is 4/0 AWG to 400 MCM.

• Rated for continuous use at 600 volts, with a maximum operating temperature of one hundred ten degrees Celsius.
• Adhesive liner ensures complete insulation and protection.
• Non-corrosive and compliant with various safety standards.

Product Highlights

The tubing is suitable for above-grade, underground, or underwater applications. It maintains its integrity under harsh conditions.

Product Information

Standard Information

• Brand: IDEAL
• Model: TS-46-1500

Technical Specifications

• Shrink Ratio: 3:1
• Thickness: 0.160 IN
• Length: 9 IN
• Dielectric Strength: 500 V/MIL
• Volume Resistivity: 1013 OHM -CM MIN
• Continuous Operating Temperature: -55 to 110 DEG C
• Minimum Shrink Temperature: 120 - 250 DEG C
• Cable Range: 4/0 AWG - 400 MCM
