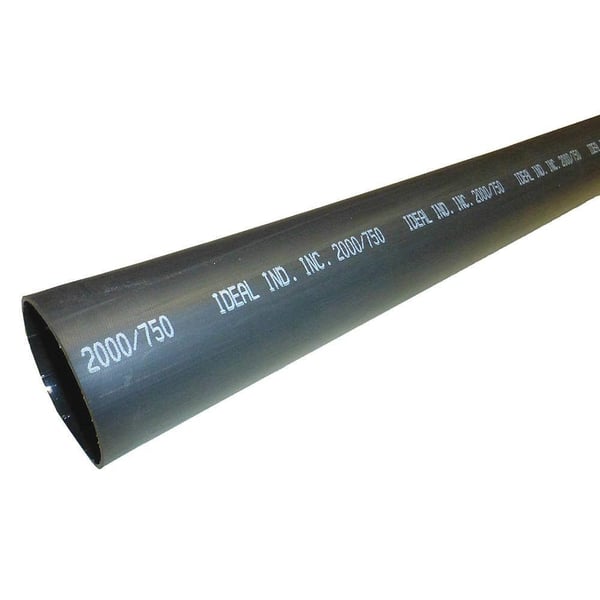

Ideal 46-351 Thermo-Shrink Heavy-Wall Heat Shrink 1.100 inches Expanded ID 6 inches (5/PK)

Product Description

The IDEAL 46-351 Thermo-Shrink Heavy-Wall Heat Shrink Tubing is a solution for protecting cable splices. Constructed from TS-46 irradiated cross-linked polyolefin, it features a 3:1 shrink ratio and comes in pre-cut sleeves. Its adhesive liner ensures insulation and protection, making it suitable for above-grade, underground, or underwater applications.

• Constructed from durable TS-46 irradiated cross-linked polyolefin
• 3:1 shrink ratio
• Adhesive liner provides complete insulation and protection for electrical splices

Product Highlights

This heat shrink tubing is flame retardant and rated for 600V, 90°C continuous use. It meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, and other standards.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 46-351
• Country of Origin: United States

Technical Specifications

• Heat Shrink Type: Heavy-Wall
• Quantity: Bag of 5
• Recovered Wall Thickness: 0.12"
• Elongation: 6
• Minimum Cable Size: 1/0 AWG
• Minimum Shrink Temperature: 248 °F
• Shrink Ratio: 3 to 1
• Tensile Strength: 2100 PSI
• Warranty: Limited 90 Day
• Dielectric Strength: 500V/mil (20KV/min)
• Color: Black
• Extended Length: 6"
• Inner Diameter Recovered: 0.35 in
• Length: 6 in
• Material: Cross-Linked Polyolefin
• Shrink Temperature: 120 - 250 deg C
• Temperature Rating: -55 to 110 deg C
• Voltage Rating: 600 VAC
• Wall Type: Heavy
• Standard & Approvals: UL Listed, RoHS Complaint, Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA Insulation Thickness Requirements
• Wire Size: 4 to 3/0 AWG
• Wall Thickness Recovered: 0.12 in
• Inner Diameter Expanded: 1.1 in
• Brand: Ideal Industries
• Heat Shrink Ratio: 6:1
• Country of Origin: United States
• UNSPSC Code: 26120000
• Inner Diameter: 1.1 in
• Manufacturer Part Number: 46-351
• Series: 46 Series
• Unit of Measure: EA
• UPC Code: 783250731268
• ECCN: EAR99
• UNSPSC: 39121723
