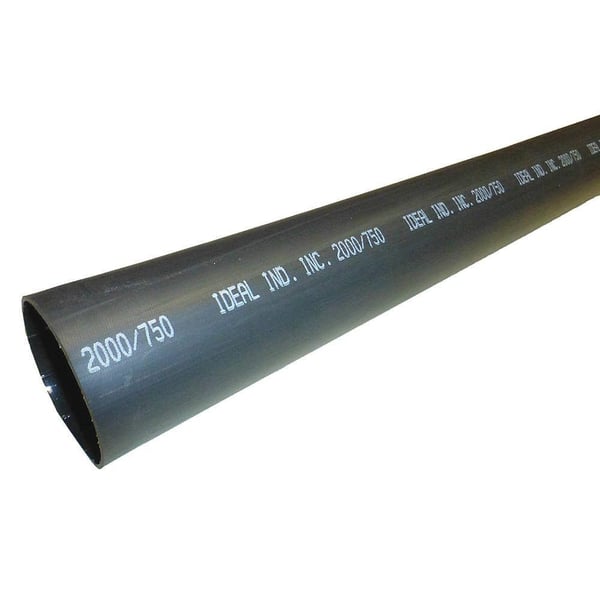

Ideal 46-347 Heat Shrinkable Tube Thermo-Shrink Heavy-Wall Heat Shrink Tubing 6 IN

Product Description

The IDEAL 46-347 thermo-shrink heavy-wall heat shrink tubing is made from TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio. The adhesive liner provides complete insulation and protection to electrical splices for above-grade, underground, and underwater applications. It meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1 and is rated for 600V, 90C continuous use.

• TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio
• Adhesive liner provides complete insulation and protection to electrical splices in above-grade, underground or underwater applications
• Maximum flame retardancy

Product Highlights

The IDEAL heat shrink tubing provides insulation and protection for electrical splices. It is flame retardant and suitable for various applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 46-347
• Country of Origin: United States

Technical Specifications

• Catalog Number: 46-347
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Thermo-Shrink
• Country of Origin: United States
• Made in USA: Yes
• Standard: CSA, UL Listed,RoHS
• Item Type: Heavy-Wall Heat Shrink Tubing
• Length: 6 Inch
• Length UOM: Inch
• Thickness: 090 IN
• Heat Shrink Type: Heavy-Wall
• Shrink Ratio: 3:1
• Tensile Strength: 2100 PSI
• Dielectric Strength: 500 V/mil
• Minimum Shrink Temperature: 248 °F
• Voltage: 600 V
• Continuous Use Temperature: 90 °C
• Wire Gauge Range: 6-1 AWG
• Material: Irradiated cross-linked polyolefin
• Compliance: UL 486D CSA C22.2 No. 198.2 ANSI C119.1 MIL-DTL-23053/15 IEEE 383 ANSI C37.20.2 ICEA S-19-8 NEMA
• Flame Retardancy: Maximum
• Size: 6 In.
• Inner Diameter Expanded: 3/4 in
• Inner Diameter Recovered: 0.24 in
• Shrink Temperature: 120 - 250 deg C
• Temperature Rating: -55 to 110 deg C
• Voltage Rating: 600 VAC
• Wall Thickness Recovered: 0.09 in
• Wall Type: Heavy
• Wire Size: 6 to 1 AWG
• Standard & Approvals: UL Listed, RoHS Complaint, Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA Insulation Thickness Requirements
• Inner Diameter: 0.75 in
• Manufacturer Part Number: 46-347
• Series: 46 Series
• Recovered Wall Thickness: 0.090"
• Elongation: 6
