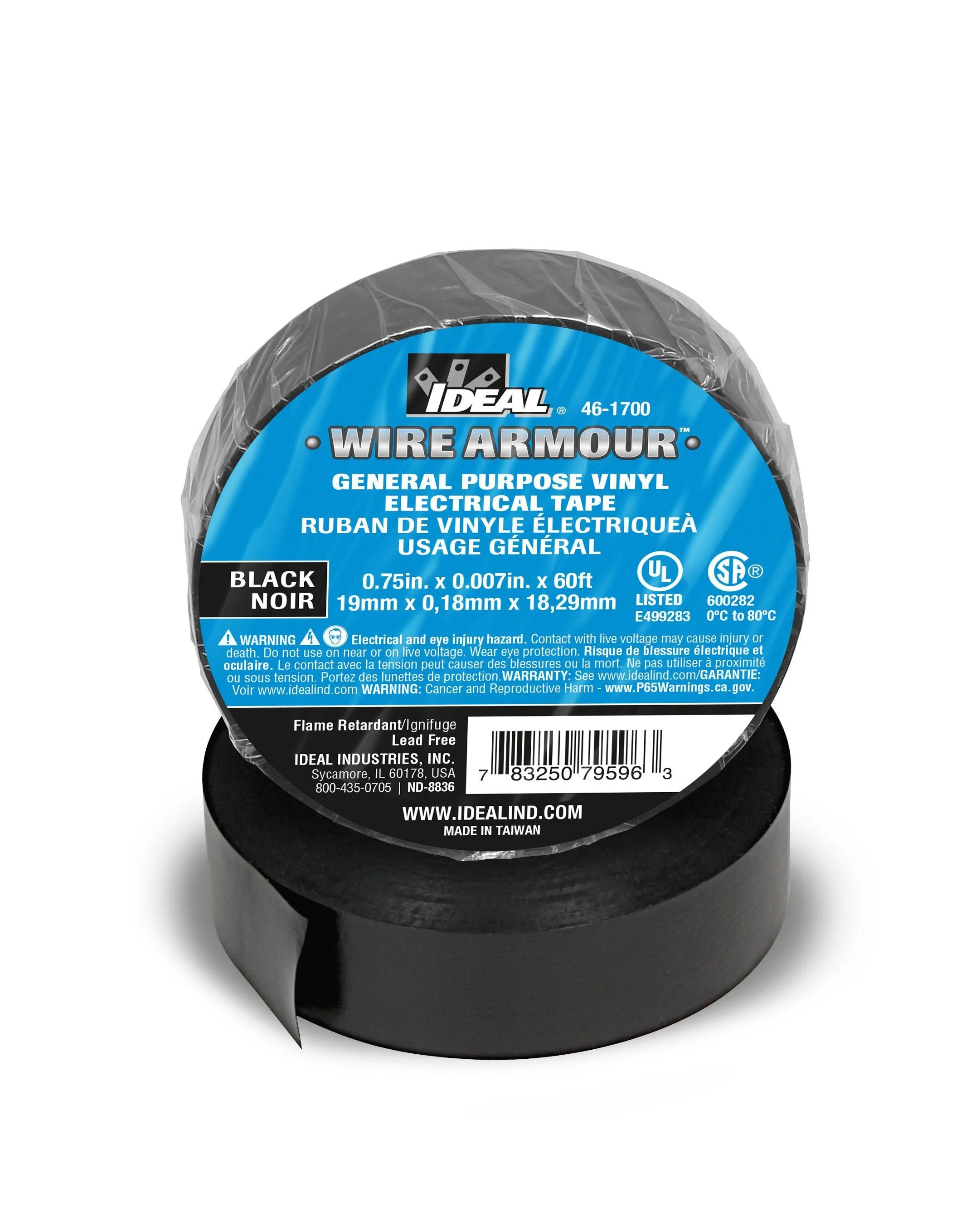

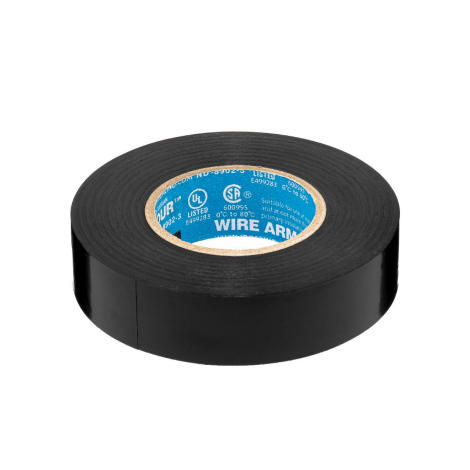

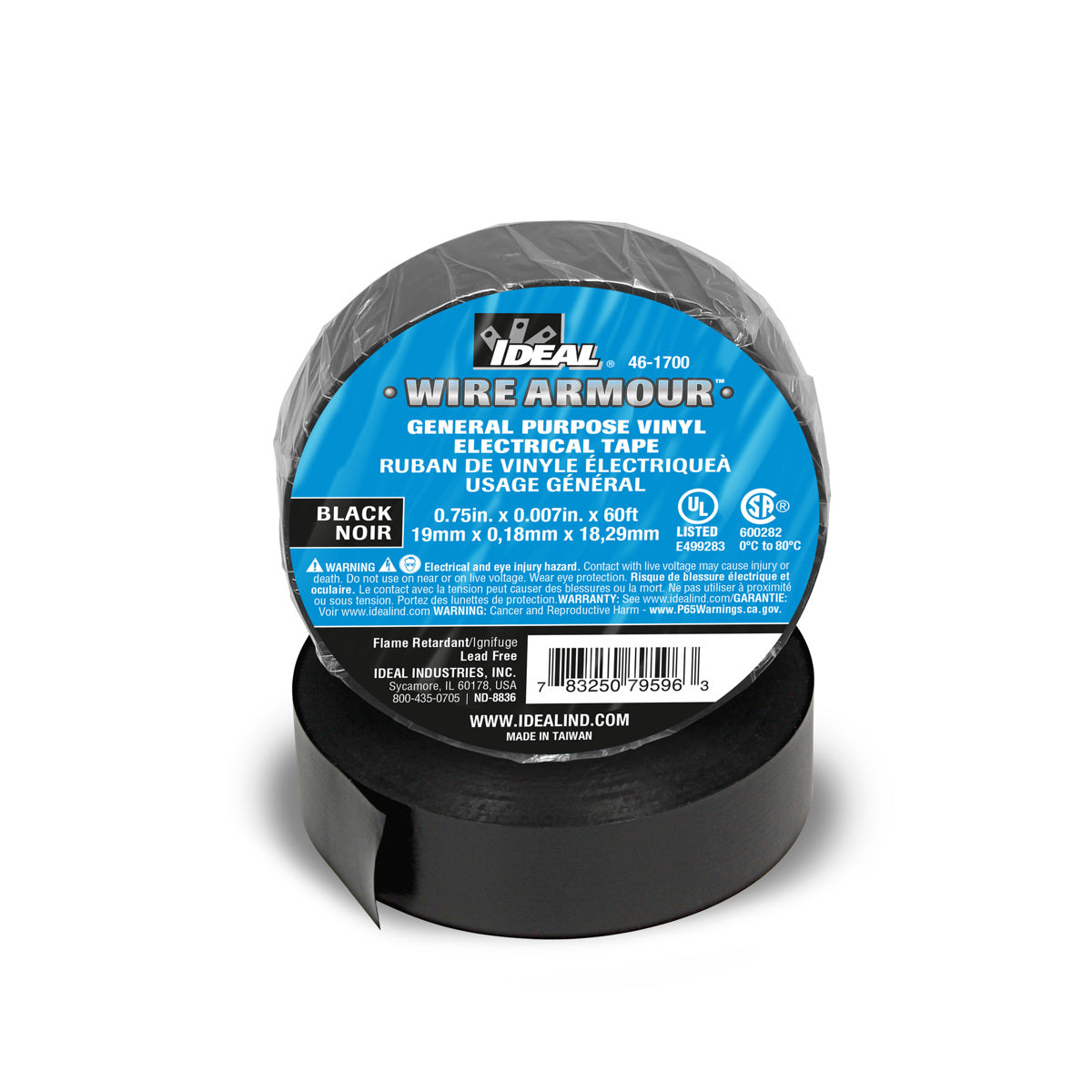

Ideal 46-1700 vinyl tape 3/4 inches x 60ft

Product Description

The IDEAL 46-1700 Vinyl Tape is a general-purpose, pressure-sensitive tape suitable for mechanical and electrical applications. This 7 mil vinyl tape provides primary insulation for splices up to 600 volts and can be used as a protective outer jacket for splices and general repairs. It is flame retardant and weather-resistant.

• Provides reliable primary insulation for splices up to 600 volts
• Resistant to sun, water, oil, acids, alkalis, and corrosive chemicals
• Flame-retardant and weather-resistant

Product Highlights

Ideal for electrical and mechanical applications requiring a durable, versatile, and weather-resistant tape.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 46-1700
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 46-1700
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• UPC: 783250795963
• GTIN: 00783250795963
• Application: Mechanical and electrical
• Material: Vinyl
• Resistance: Resistant to sun, water, oil, acids, alkalis and corrosive chemicals
• Standards Met: ASTM D 1000, UL 510, CSA C 22.2 No. 197, RoHS (Pb, Cd, Hg, Cr6, PBB, PBDE)
• Voltage: Up to 600 volts
• Adhesion Strength: 16 in-oz
• Adhesive Material: Rubber
• Alternative Part Number: 15583942
• Dielectric Strength: 7000 V
• Maximum Operating Temperature: 176 deg F
• Minimum Operating Temperature: 32 deg F
• Tensile Strength: 16 in-lb
• Thickness: 7 mil
• Voltage Rating: 600 V
• Elongation: 2
• Maximum Rated Voltage: 600V
• Maximum Temperature (C): 80�C
• Adhesive: Rubber
• Standard: CSA Certified, UL E499283, RoHS Compliant
