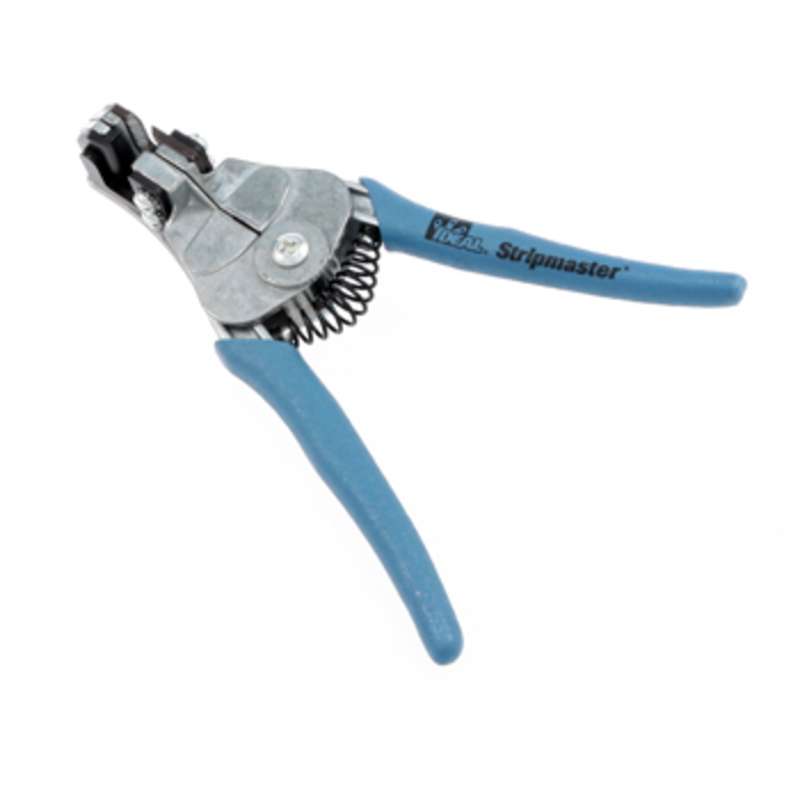

Ideal 45-672 Stripmaster Standard Wire Stripper 24 - 30 AWG

Product Description

The IDEAL 45-672 Stripmaster Standard Wire Stripper is the industry standard, incorporating a gripper that firmly holds the wire in a center-line position with the stripping hole. The lever action offers a mechanical advantage for easier stripping, reducing operator fatigue. One squeeze strips the wire clean, up to 7/8 IN (22 MM).

• Knife-type blades
• Cleanly strip wire up to 7/8 IN (22 MM)
• Requires one-third less hand pressure for each strip

Product Highlights

This wire stripper eliminates nicking, cutting, and fraying of wire with a sturdy die-cast frame providing long-term durability.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 45-672
• Country of Origin: US

Technical Specifications

• Catalog Number: 45-672
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Stripmaster
• Country of Origin: United States
• Made in USA: Yes
• Material: Die-Cast Frame
• Special Features: Knife-type blades; Cleanly strip wire up to 7/8 IN (22 MM); Requires one-third less hand pressure for each strip; Eliminates nicking, cutting and fraying of wire; Wire gripper holds wire centered in hole; Sturdy die-cast frame provides long-term durability
• Item Type: Standard Wire Stripper
• Size: 24 - 30
• Series: 45 Series
• Product Type: Wire Stripper
• Jaw Type: Straight
• Overall Length: 5-1/2in
• Cutting Capacity: 30 to 24AWG
• Material Category: Metal
• Minimum Wire Size: 30 AWG
• Maximum Wire Size: 24 AWG
• Stripping Capacity - Solid Wire: 24 AWG, 26 AWG, 28 AWG, 30 AWG
• Stripping Capacity- Stranded Wire: 24 AWG, 26 AWG, 28 AWG, 30 AWG
• Grip Style: Standard
• Cushion: Cushion
• Insulated: No
• For Wire/Cable Type: Copper, Cable
• Handle Style: Standard
• Adjustment Mechanism: None
• Application: Stripping
• Body Material: Die Cast, Zinc
• Maximum Stripping Capacity - Solid Wire: 24 AWG
• Maximum Stripping Capacity - Stranded Wire: 24 AWG
• Maximum Wire/Cable Diameter: 24 ga
• Minimum Stripping Capacity - Solid Wire: 30 AWG
• Minimum Stripping Capacity - Stranded Wire: 30 AWG
• Minimum Wire/Cable Diameter: 30 ga
• Tether Ready: No
• Type: Electrical Wire Strippers
• Manufacturer Part Number: 45-672
• Sub-brand: STRIPMASTER(R)
• UNSPSC: 27111510
• Width: 4.0 in.
• Height: 1.0 in.
• Length: 9.0 in.
• Wire Size: 24-30 AWG AWG
