Product Description

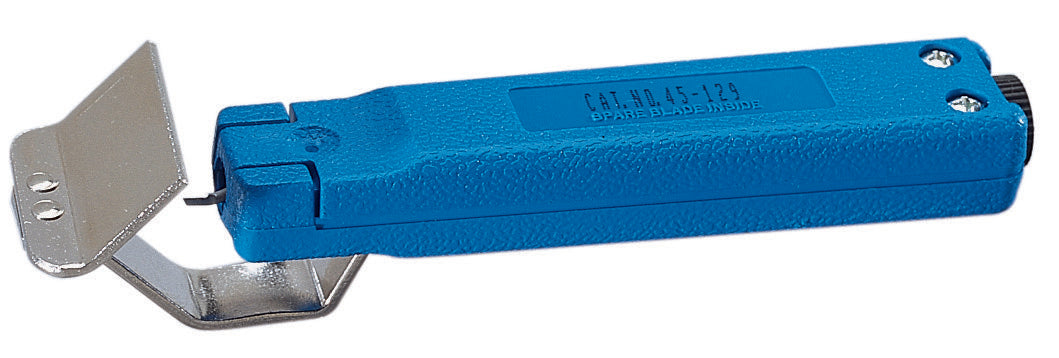

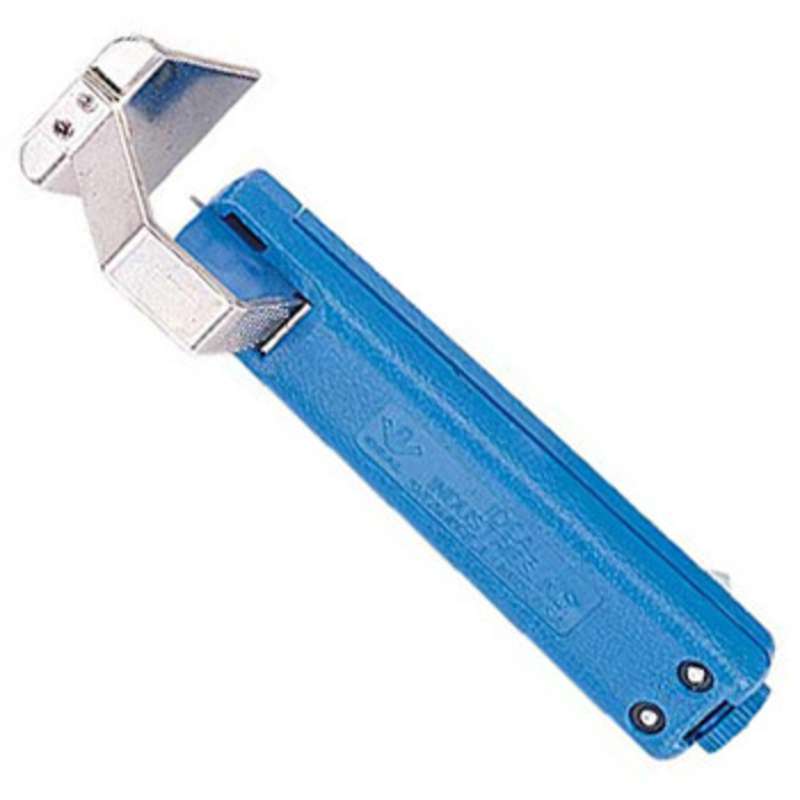

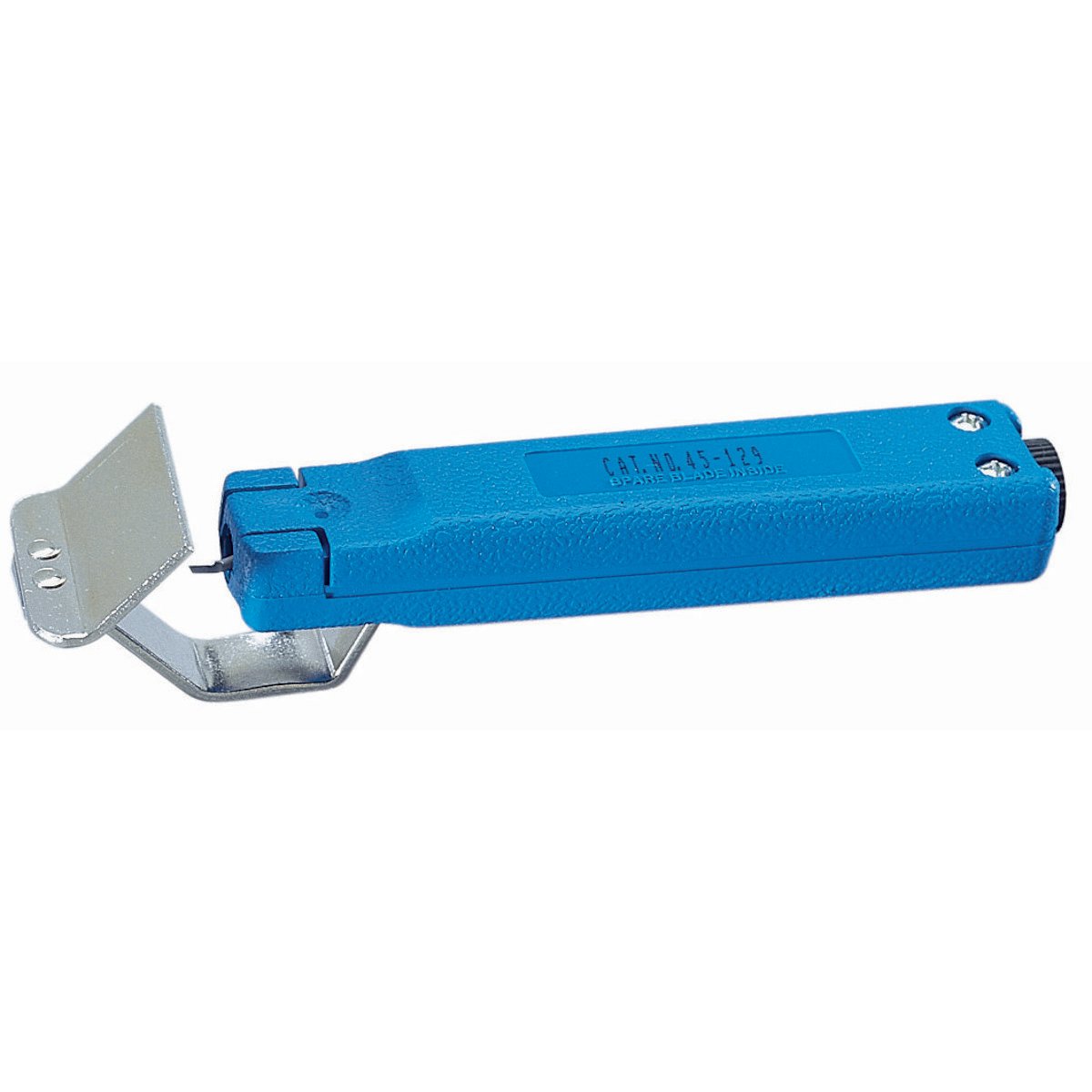

The IDEAL 45-129 slitting and ringing tool allows for quick and precise removal of insulation from round cables without nicks. The unique lever and blade design allows ringing and longitudinal slitting of cable jackets. The adjustable blade accommodates different jacket thicknesses with a cutting depth up to .125 inches. A spare blade is included in the handle.
- Quick and precise removal of insulation from round cables without nicks
- Unique lever and blade design allows ringing and longitudinal slitting of cable jackets
- Adjustable blade for different jacket thicknesses
- Spare blade in the handle
Product Highlights
This swivel-blade tool is designed for use with single or multiple conductor cables up to 1-1/2 inches and features an adjustable blade for varying jacket thicknesses.
Product Information
Standard Information
-
Brand: IDEAL
-
Manufacturer Part Number: 45-129
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: 45-129
-
Manufacturer: Ideal Industries
-
Brand: Ideal
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: For Single Or Multiple Conductor Cable Up To 1-1/2 IN
-
Special Features: Features: Cuts Around Cable Jacket As Well As Slits The Length Of Jacket For Easy Removal; Use With Single Or Multiple Conductor Cable Up To 1.750 IN O.D; Blade Adjusts For Jacket Thicknesses Up To 0.125 IN; Spare Blade In Handle Base
-
Standard: RoHS
-
Item Type: Swivel-Blade, Round Cable
-
Series: 45
-
Product Type: Cable Stripper
-
Jaw Type: Straight
-
Width: 3.0 in.
-
Height: 1.0 in.
-
Length: 7.0 in.
-
Type: Swivel Blade
-
Wire Type: Single/Multiple Conductor
-
Capacity: 3/4 to 1-1/2 Inch OD
-
Material: Plastic
-
Part Number: 45-129
-
UPC: 783250451296
-
Standard & Approvals: RoHS Compliant
