Ideal 35-523 Quick Change Step Drill Bit 1/4 in Dia Min Hole 1-1/8 in Dia Max Hole

Product Description

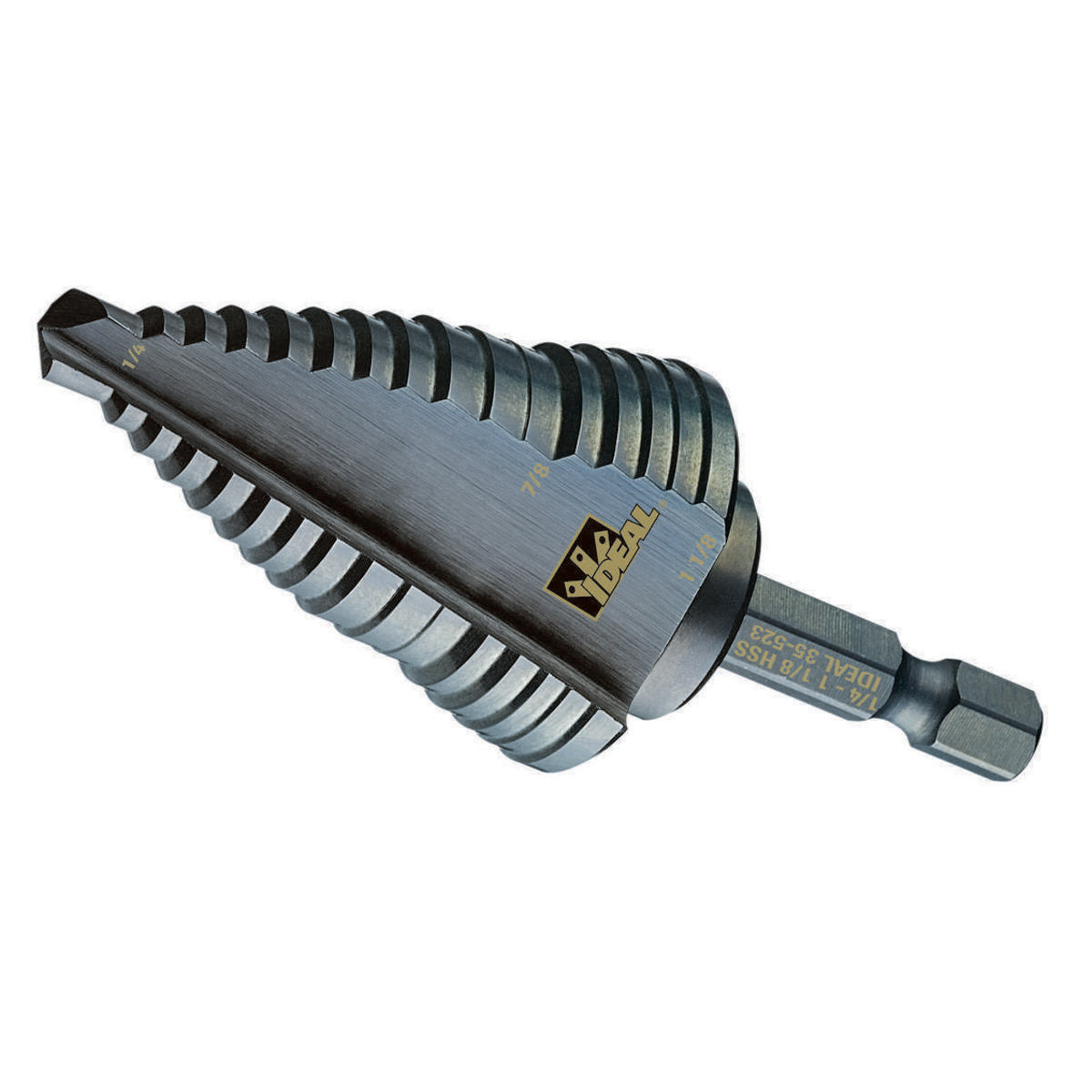

The Ideal Quick Change Step Drill Bit 35-523 features a split-point tip for precise drilling in challenging materials. This bit has sixteen hole sizes ranging from one-quarter inch to one and one-eighth inches in diameter. The innovative design minimizes the need for frequent bit changes, streamlining the drilling process.

• Constructed from high-speed tool steel
• Features a durable 1/4 inch quick change shank
• Designed for accurate and efficient drilling

Product Highlights

This step drill bit is ideal for use in various materials including brass, stainless steel, and carbon steel. The unique split-point tip enables faster starts while the double-fluted design ensures smoother drilling.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 35-523
• Material: Steel
• Number of Stages: 16
• Minimum Drill Diameter: 1/4 inch
• Maximum Drill Diameter: 1-1/8 inch
• Step Thickness: 1/16 inch
• Step Increments: 1/16 inch
• UPC: 783250713400
