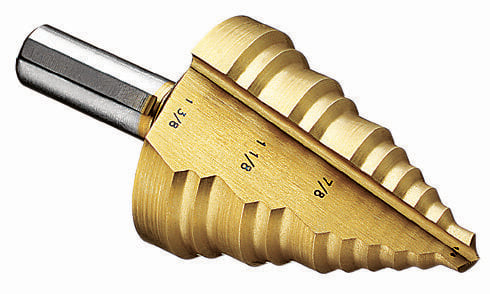

Ideal 35-517 Step Drill Bit 10 Stages (1/4 to 1-3/8 Inch)

Product Description

The Ideal 35-517 Step Drill Bit is designed for repetitive drilling through various tough materials like brass, stainless steel, and cast iron. This drill bit features a titanium nitride coating for durability and longevity.

• Constructed with a rugged exterior for enhanced protection.
• Eliminates the need for starter holes with its split-point design.
• Double-fluted design allows for faster, cooler operation.

Product Highlights

This step drill bit simplifies the drilling process by providing ten hole sizes, reducing downtime caused by bit changes.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 35-517
• UPC: 783250218677
• Minimum Drill Diameter: 1/4 inch
• Maximum Drill Diameter: 1-3/8 inch
• Number of Drill Stages: 10
• Step Increments: 1/32 inch
• Step Thickness: 1/16 to 1/4 inch
• Shank Diameter: 3/8 inch
• Coating: Titanium Nitride
• Country of Origin: United States
