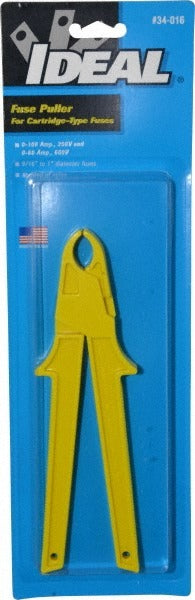

Ideal 34-016 Fuse Puller 7.25 in Nylon 0-100A 250V 0-60A 600V

Product Description

The IDEAL 34-016 is a nylon fuse puller designed for safe extraction and insertion of cylindrical cartridge fuses in electrical panels, disconnects, and distribution equipment. Measuring 7.25 inches in overall length, the tool provides sufficient reach and leverage to remove fuses without direct hand contact, reducing arc flash and shock exposure. It is rated for use with fuses ranging from 0 to 100 amps at 250 volts and 0 to 60 amps at 600 volts, covering the most common low-voltage fuse classes found in commercial and industrial installations. Licensed electricians and maintenance technicians are the primary users.

This fuse puller is suited for residential service work, commercial panel maintenance, and light industrial electrical service. It handles cartridge fuses from 9/16 inch to 1 inch in diameter, covering standard Class H, K, and R fuse sizes commonly found in fusible disconnects and safety switches. It is a standard tool for electricians performing fuse replacement or troubleshooting in fused equipment.

Key Features

• Nylon construction provides electrical insulation and resists chemical exposure in panel environments
• 7.25-inch length keeps hands clear of energized fuse clips during extraction
• Compatible with fuses rated 0-100A at 250V and 0-60A at 600V
• Fits cartridge fuses from 9/16 inch to 1 inch in diameter
• Lightweight design at 1.87 pounds for extended use without fatigue

Compatibility

Designed for use with cartridge fuses from 9/16 inch to 1 inch in diameter, rated 0 to 100 amps at 250 volts or 0 to 60 amps at 600 volts, as found in standard fusible disconnects and distribution panels.

Installation Notes

This tool is used by licensed electricians during fuse service on low-voltage distribution equipment. Always follow NFPA 70E arc flash safety requirements and wear appropriate PPE before accessing any fuse holder. De-energize and lock out the circuit per OSHA LOTO procedures before fuse removal whenever possible. Inspect the puller for cracks or deformation before each use and replace if the nylon shows visible damage.
