Ideal 30382J PowerPlug Luminaire Disconnect Model 102 2-Wire Jar of 75

Product Description

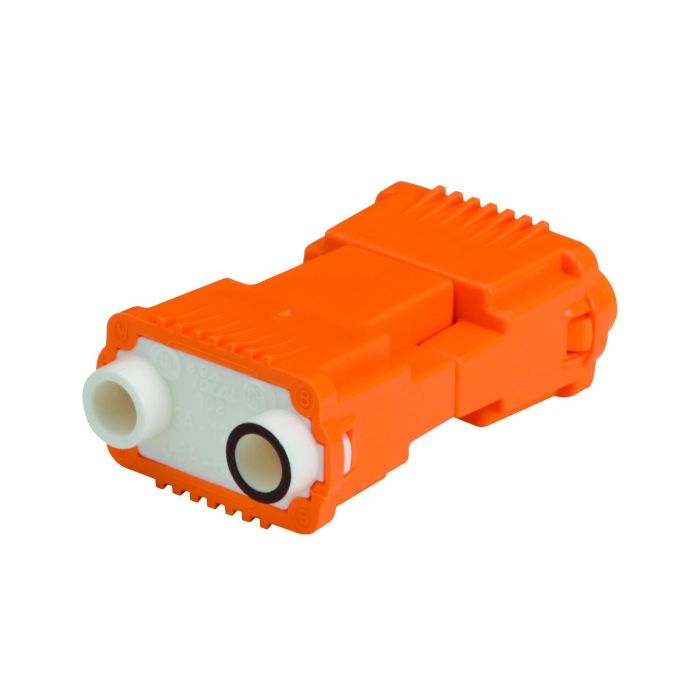

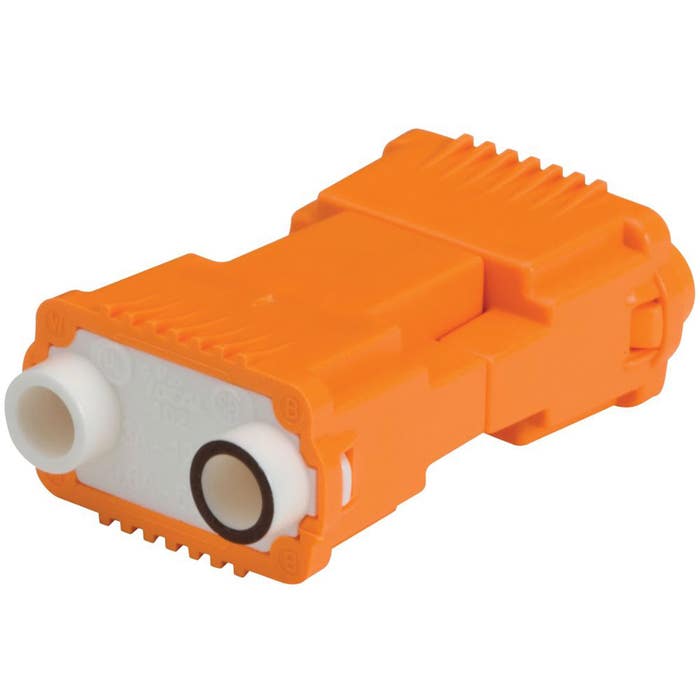

The Ideal Electrical 30-382J PowerPlug Luminaire Disconnect, Model 102, is a 2-wire disconnect supplied in a jar of 75. This standard 2-wire disconnect accommodates 18 to 12 AWG wire and features push-in connection with copper alloy contacts. It is rated for 600 VAC and 6A. The nylon housing is tin plated and measures 0.5 in W x 0.81 in H.

• Patented design allows for safe mating and demating of connector
• Both halves are touch safe per UL 2459
• Push-in technology results in quicker connections, saving time and increasing productivity

Product Highlights

The PowerPlug is perfect for new, retrofit or OEM lighting installations and meets the new NEC and CEC code changes for non-residential fluorescent luminaires.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30382J
• Country of Origin: China

Technical Specifications

• Brand Name: IDEAL Electrical
• Vendor Alias: 30-382J
• Country of Origin: China
• UPC: 783250656844
• Connection Material: Copper Alloy
• Connection Type: Push-In
• Finish: Tin Plated
• Material: Nylon
• Number of Ports: 2
• Temperature Rating: 221
• Type: 2-Wire Standard
• Voltage Rating: 600
• Wire Size: 18 to 12
• Current Rating: 6 A
