Ideal 30-S1212 SLK,SS,FUSED,1W LI LO

Product Description

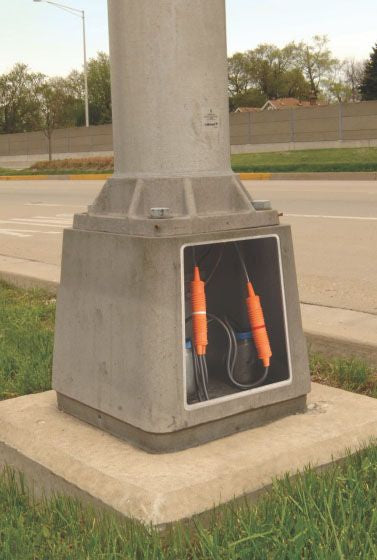

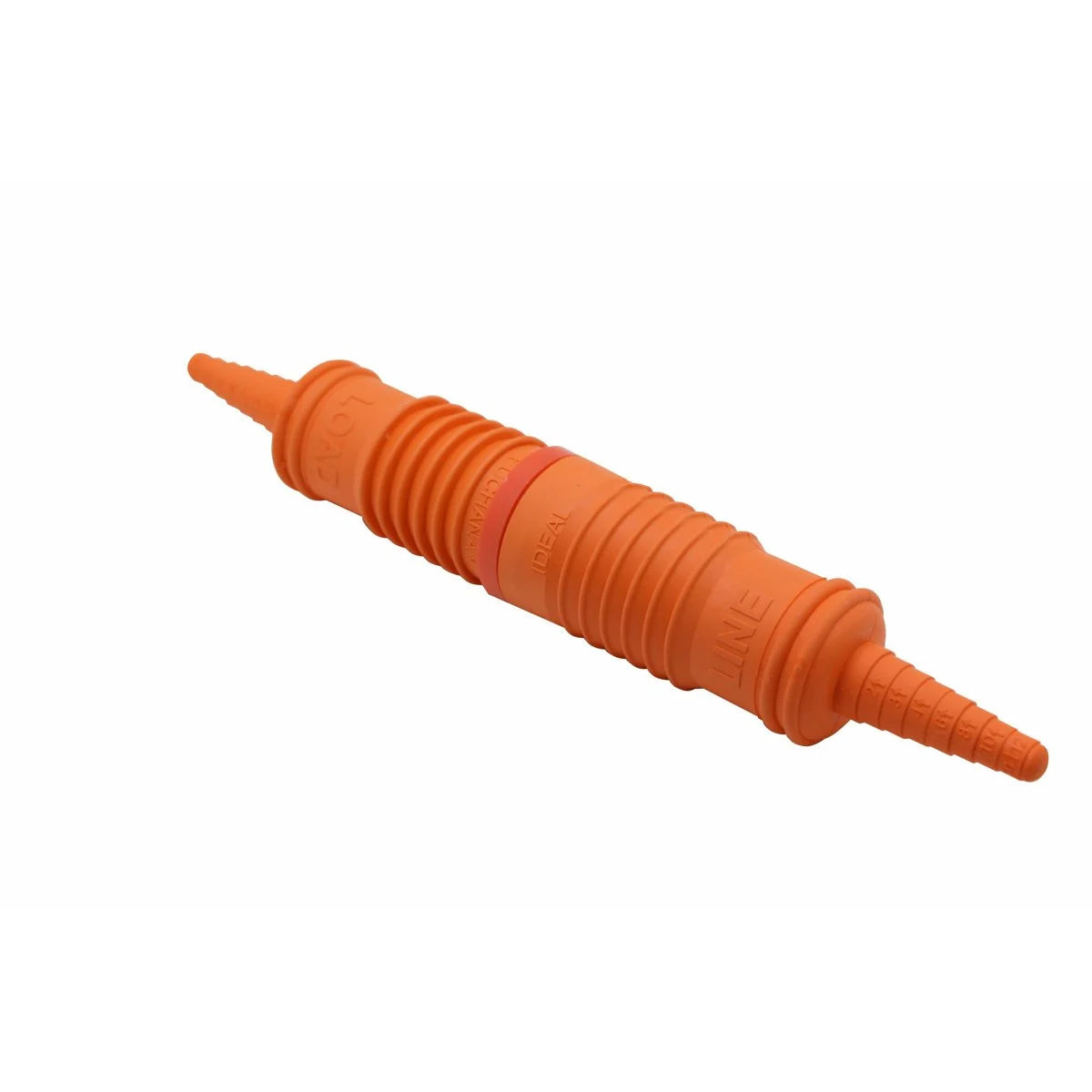

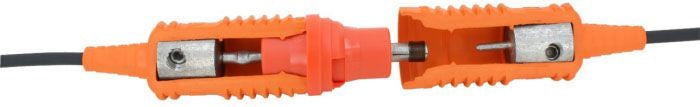

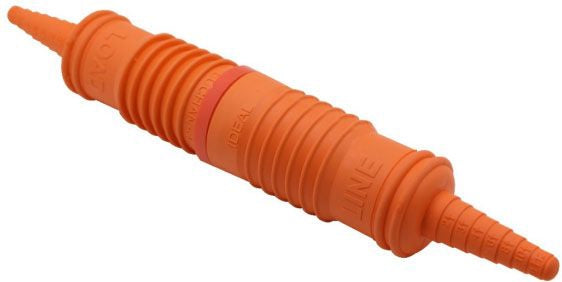

The Ideal 30-S1212 is a reliable breakaway fuseholder designed for various outdoor applications, such as roadway, street, and parking lot lighting. This unit is listed to UL 486D for submersibility. The bright orange color enhances visibility making it easy to find even in low-light conditions. It accepts a midget-style fuse measuring thirteen thirty-seconds by one and a half inches, although the fuse is not included. The wire range accommodates sizes from two to fourteen AWG, suitable for both copper and aluminum wiring.

• Waterproof design for outdoor applications
• UL listed for submersible installations
• Accepts midget-style fuses; fuse not included

Product Highlights

This Disconnect Fuse Kit can de-energize roadway lights quickly, enhancing safety for first responders during maintenance or emergencies.

Product Information

Standard Information

• Brand: Ideal Industries
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-S1212
• Amperage Rating: 30A
• Voltage Rating: 600V
• Temperature Rating: 105 Degrees C
• Wire Range: 2-14 AWG (Cu & Al rated)
• Special Features: Waterproof, submersible, easy visibility
• Fuse Size: 13/32 x 1-1/2 inch (fuse not included)
