Ideal 30-765 Twister Al/Cu Wire Connector 1/12 AWG Aluminium Solid With 1/18 AWG Copper Min And 1/10 AWG

Product Description

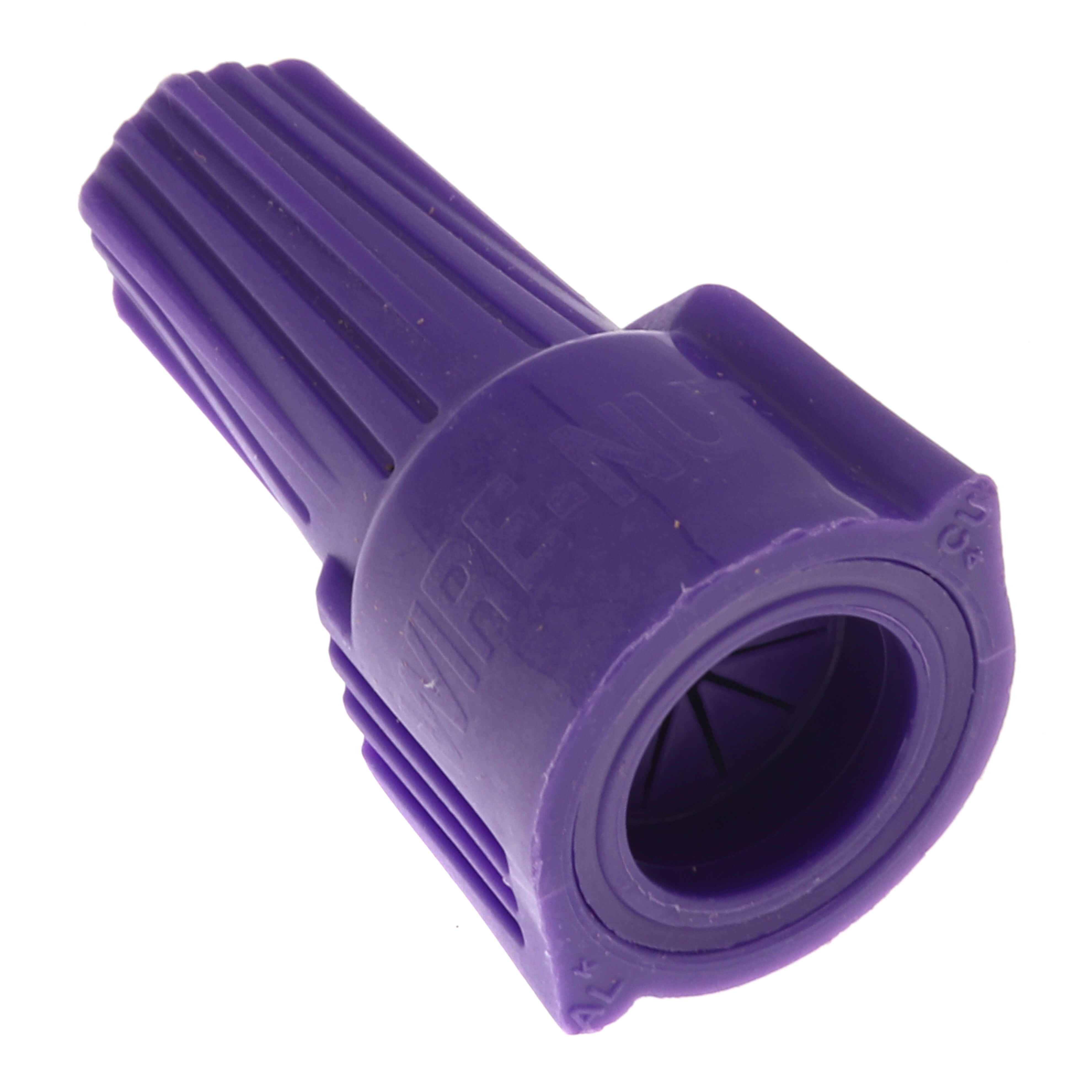

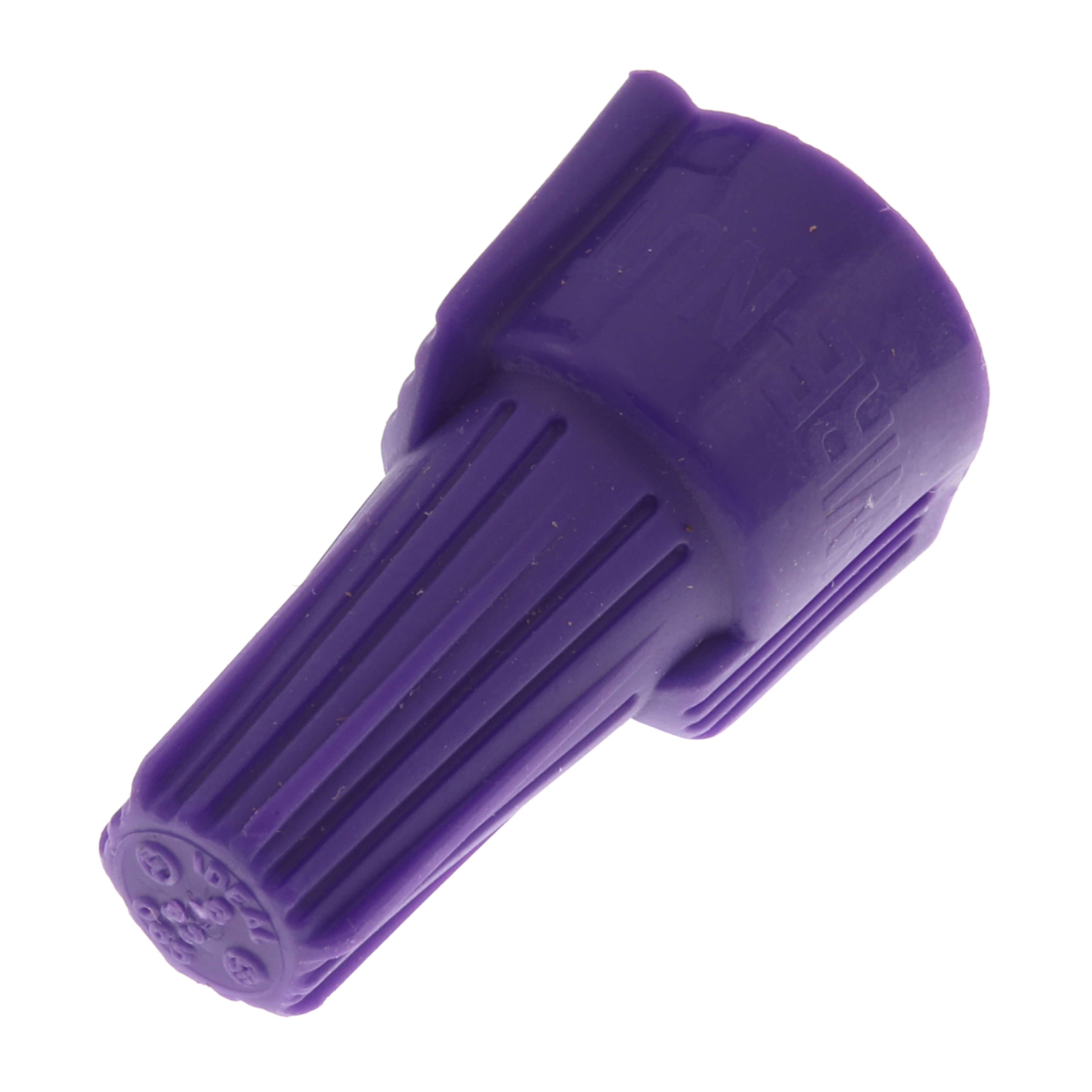

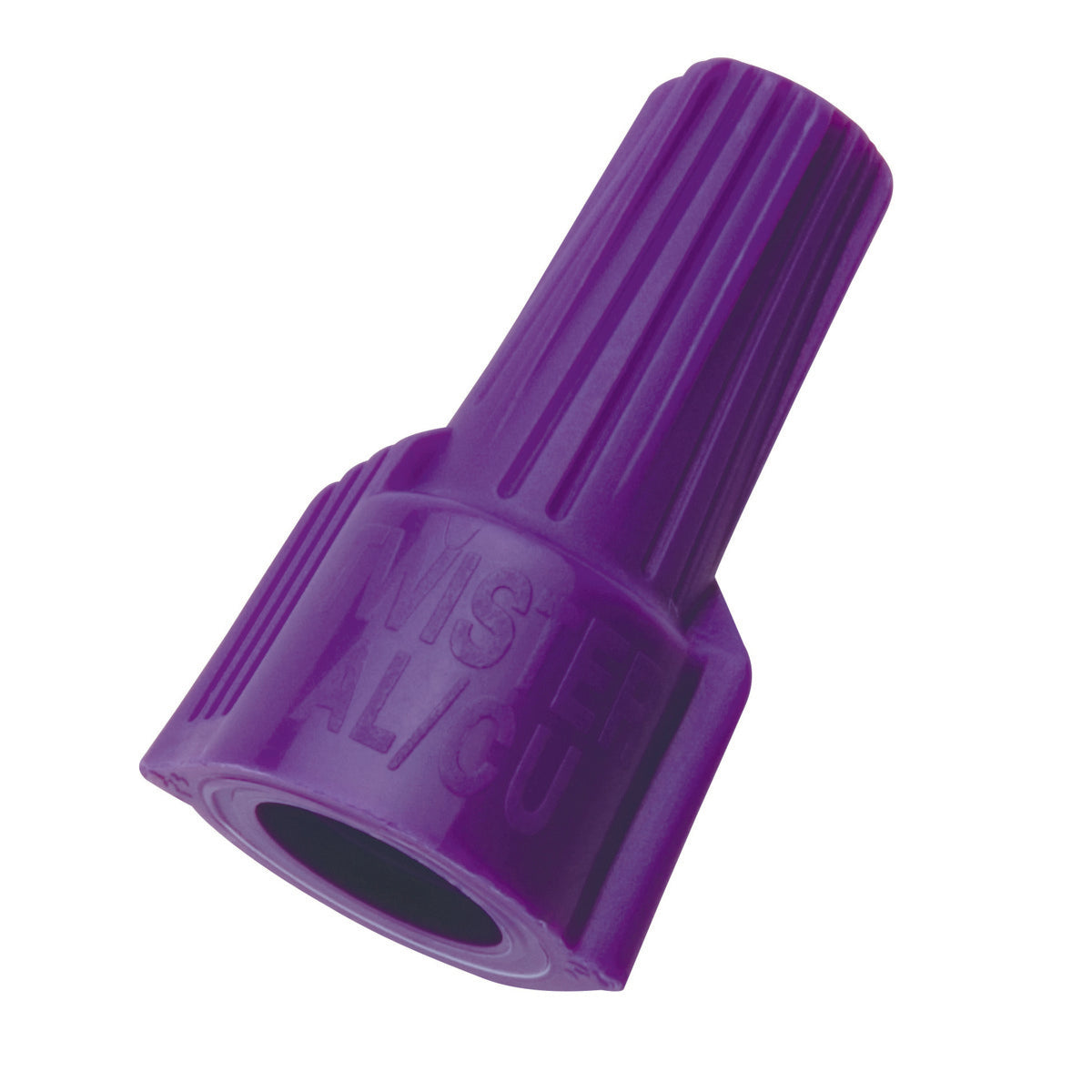

The IDEAL 30-765 Twister Al/Cu Wire Connector is the only UL Listed aluminum-to-copper twist-on connector that prevents aluminum oxidation while providing a secure connection. Filled with an anti-oxidant compound, it easily twists on with swept-wings for a comfortable connection with improved conductivity. It accepts 1 #12 Al Sol. W/ 1 #18 Cu AWG Min. And 1 #10 and has a voltage rating of 600V.

• Aluminum-To-Copper Connector Provides A Secure Connection While Preventing Aluminum Corrosion
• Specially Formulated Corrosion-Resistant Compound Provides Cooler Connections And Increased Conductivity
• Accepts 1 #12 Al Sol. W/ 1 #18 Cu AWG Min. And 1 #10

Product Highlights

The Twister Al/Cu wire connector provides a secure connection, prevents aluminum corrosion, and ensures cooler connections for enhanced conductivity. Suitable for copper-to-copper or aluminum-to-copper connections.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-765
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-765
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Twister® Al/Cu
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining 1 or more aluminum to copper conductors
• Conductor Range: 1/12 AWG Aluminium Solid With 1/18 AWG Copper Min And 1/10 AWG
• Material: Flame-retardant Polypropelene
• Number of Conductors: 2 to 3 Aluminum to Copper; 1 to 6 Copper to Copper
• Standard: CSA C22.2 #188, UL 486C Listed, UL 467 for grounding and bonding,RoHS
• UPC: 783250307654
• GTIN: 00783250307654
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
• Voltage Rating: 600
• MPN: 30-765
• Type: Twister
