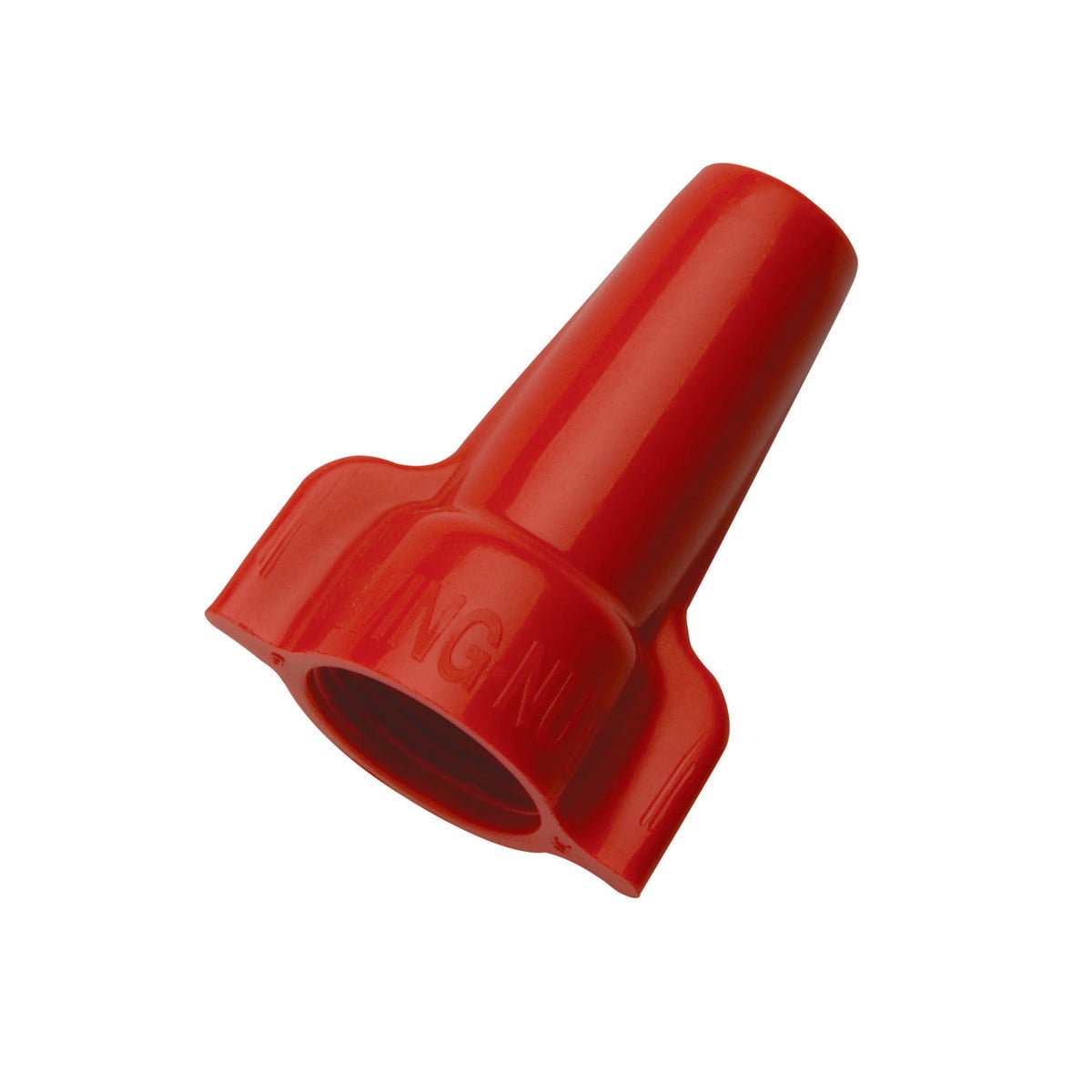

Ideal 30-652J Wing-Nut Twist-On Wire Connector 500/Jar

Product Description

The IDEAL 30-652J Wing-Nut Twist-On Wire Connector provides a secure and dependable solution for electrical connections. Designed for insulating or joining 1 to 6 conductors within an 18-8 AWG range, this connector features a flame-retardant polypropylene shell and a live-action spring. It ensures smooth, progressive tightening and can be reused for circuit changes. The connector is rated for 600V and operates up to 105°C (221°F).

• High-leverage, contoured wing provides superior torque on every twist
• Wide range, live-action spring handles small combinations and expands to accommodate large combinations
• Deep skirt provides maximum dielectric protection to prevent flash-over and turned-back strands

Product Highlights

This Wing-Nut connector offers secure, reusable electrical connections with a wide conductor range and robust flame-retardant construction.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-652J
• Country of Origin: United States

Technical Specifications

• MPN: 30-652J
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Wing-Nut
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining Conductors
• Conductor Range: 18 - 8 AWG (Min 2 - #18, Max 4 - #10)
• Material: Flame-retardant Polypropylene Shell
• Number of Conductors: 1 to 6
• Model Number: 452
• Flammability Rating: UL 94V-2
• Certifications: CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E, RoHS Compliant
• Operating Temperature: 105°C (221°F)
• Voltage Rating: 600V
• Package Quantity: 500
