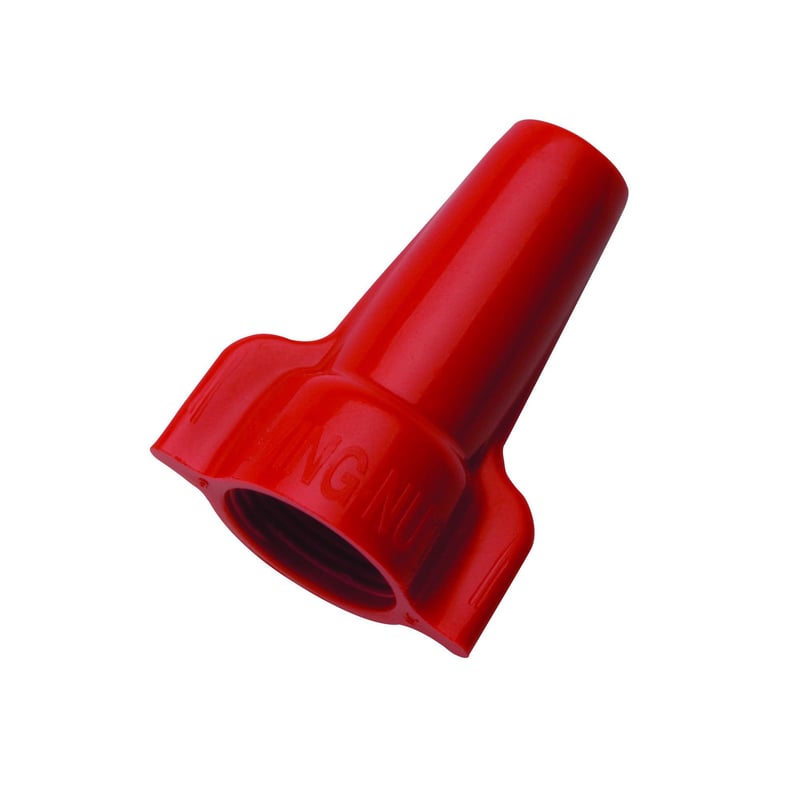

IDEAL 30-652J Wing-Nut Connector, Model 452 Red, 500/Jar

Product Description

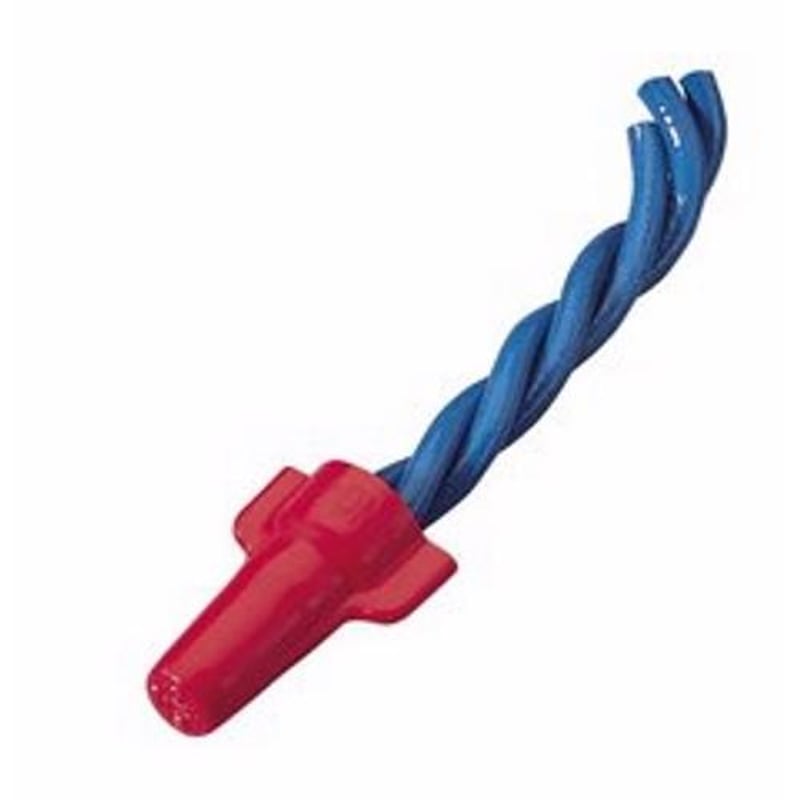

The IDEAL 30-652J Wing-Nut Connector is a reliable twist-on wire connector. It is designed for use with one to six conductors, making it suitable for various applications. The connector has a conductor range of eighteen to eight AWG. Its robust construction is made from flame-retardant polypropylene, rated to withstand tough environmental conditions.

• Voltage Rating: 600 V
• Flammability Rating: UL 94V-2
• Dimensions: Width of one and fifteen sixty-fourths inches, Height of fifteen-sixteenths inches

Product Highlights

This connector features a deep skirt design that prevents flash-over and allows for secure connections. Its live-action spring expands to accommodate various wire combinations, ensuring a dependable connection.

Product Information

Standard Information

• Brand: IDEAL
• Part Number: 30-652J

Technical Specifications

• Type: Twist-On
• Conductor Range: 18 - 8 AWG, Min 2 - 18, Max 4 - 10
• Material: Flame-retardant polypropylene shell
• Color: Red
• Height: 15/16 inches
• Width: 1-15/64 inches
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 Deg C (221 Deg F)
• Application: Insulating or joining conductors
