IDEAL 30-651J Wing-Nut Connector Model 451 Yellow 500/Jar

Product Description

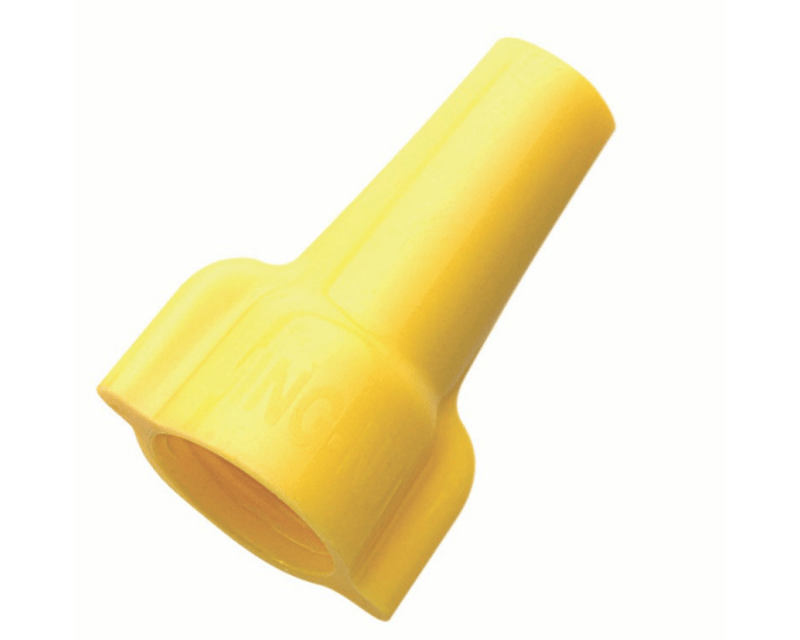

The IDEAL 30-651J Wing-Nut Connector is designed for reliable connections in electrical wire management. This product supports conductor ranges from eighteen to ten American Wire Gauge (AWG) and accommodates one to six conductors. It features a flame-retardant polypropylene shell ranked at UL 94V-2, suitable for tough environmental conditions. The connector has a voltage rating of six hundred volts, ensuring safety and effectiveness in various applications.

• Supports 1 to 6 conductors.
• Rated for environmental conditions up to 105 degrees Celsius (221 degrees Fahrenheit).
• UL Listed and CSA Certified for quality assurance.

Product Highlights

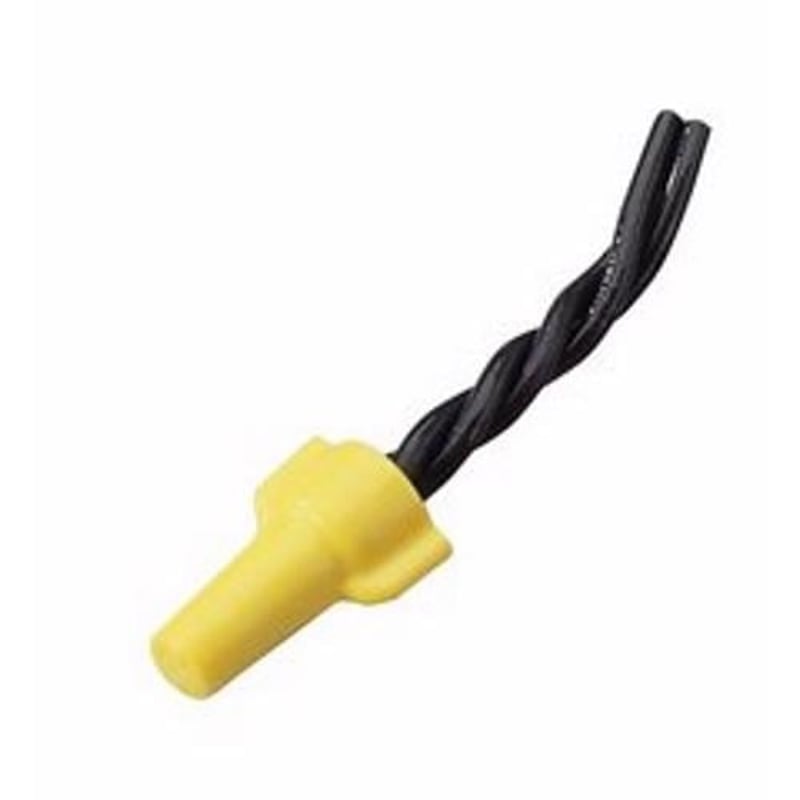

This connector provides secure and dependable connections, ideal for insulating or joining multiple conductors.

Product Information

Standard Information

• Brand: IDEAL
• Model Number: 451

Technical Specifications

• Conductor Range: 18 - 10 AWG
• Voltage Rating: 600V
• Height: 11/16 inches
• Width: 1-1/64 inches
• Material: Flame-retardant polypropylene
• Flammability Rating: UL 94V-2
• Application: Insulating or joining conductors
• Special Features: Deep skirt for dielectric protection
