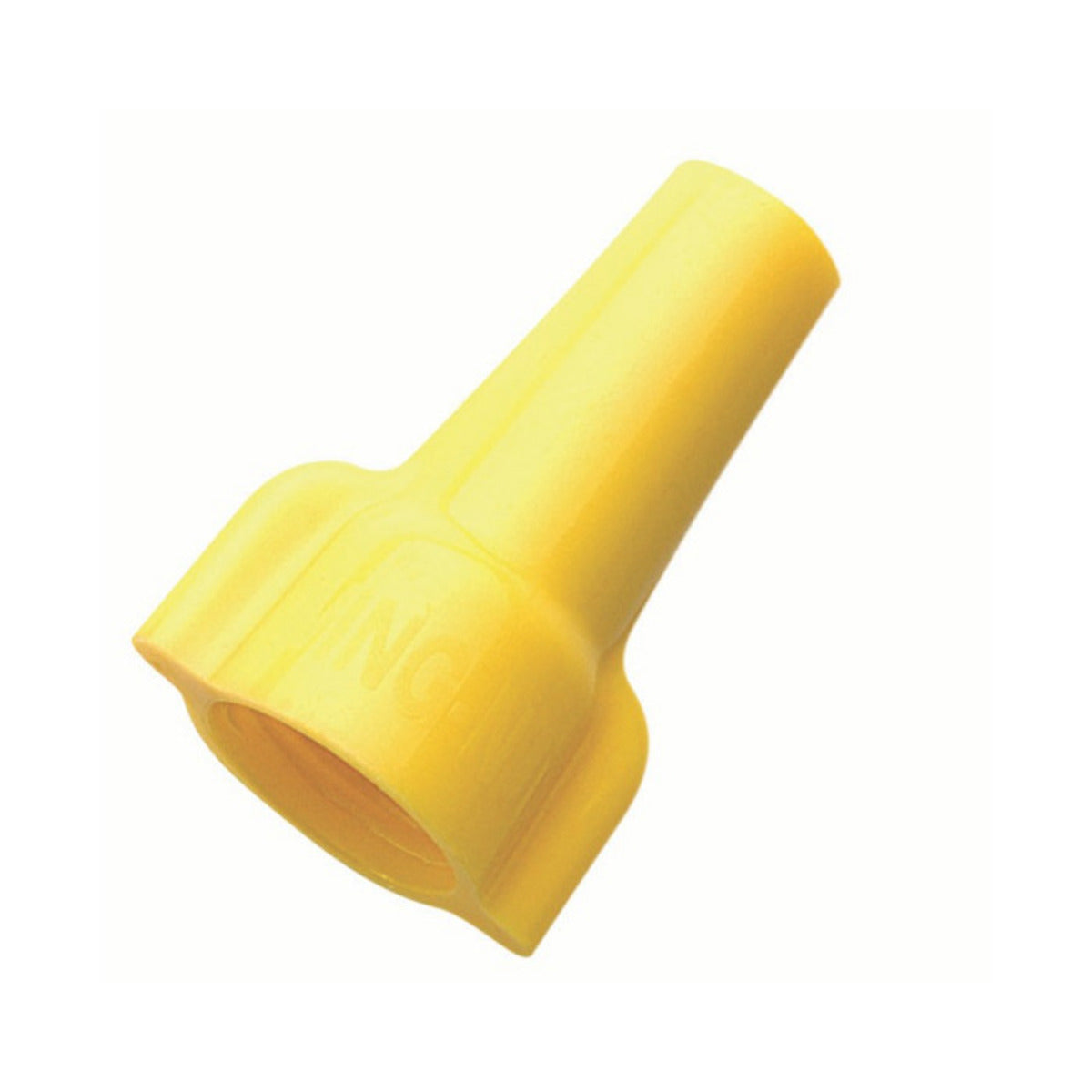

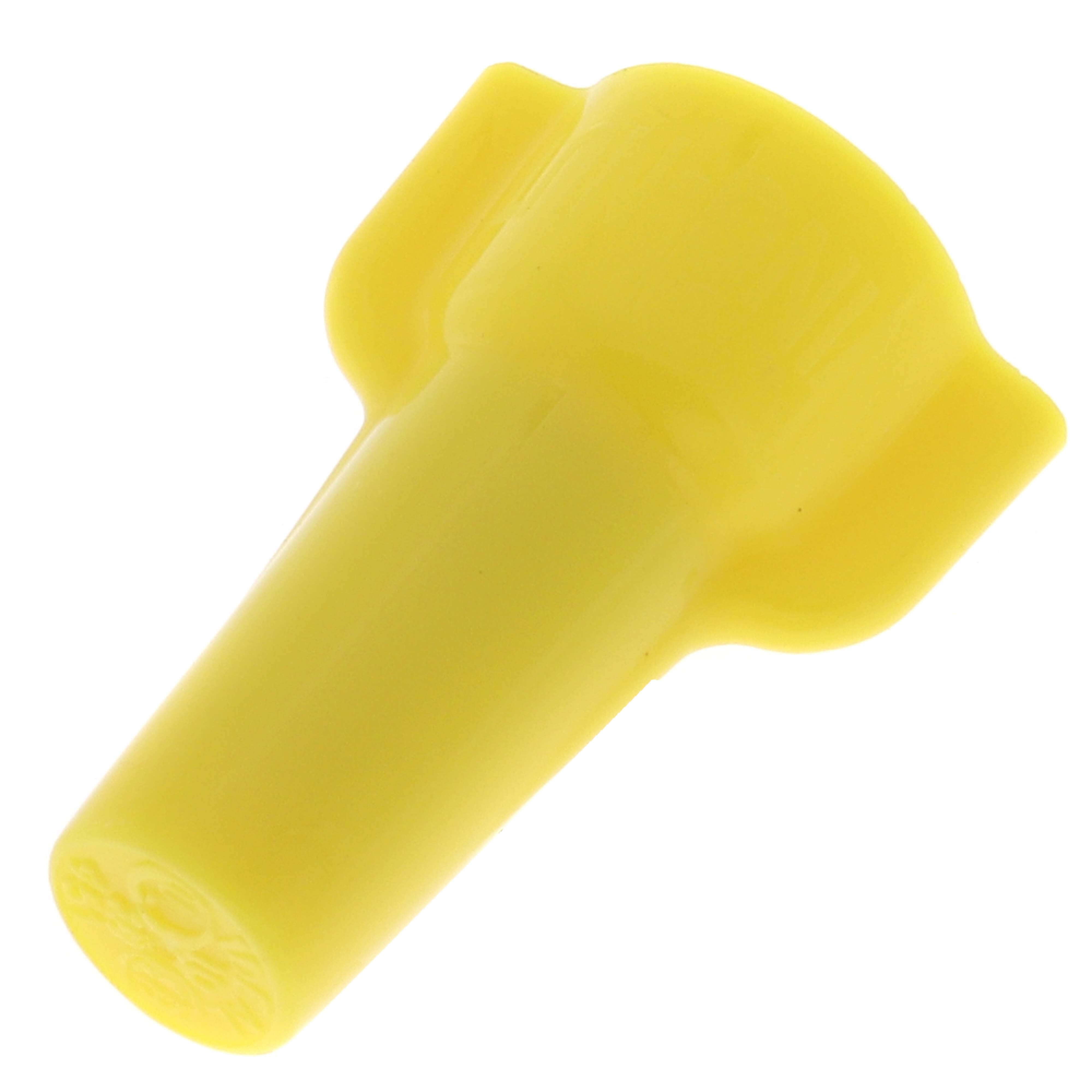

Ideal 30-651 Wing-Nut 451 Flame-Retardant Wire Connector 600 VAC 500 Count

Product Description

The Ideal 30-651 Wing-Nut Wire Connector is designed for secure connections of electrical wires ranging from eighteen to ten AWG. This connector is ideal for use in both solid and stranded wire applications. The yellow, flame-retardant shell ensures safety in various electrical setups.

• Accepts wire sizes from eighteen to ten AWG
• Rated for six hundred VAC
• Pack of five hundred connectors

Product Highlights

The Wing-Nut connector is designed with contoured wings that provide a secure grip. This feature allows for easy twisting and securing of wires without the need for pre-twisting. The wide range live-action spring can accommodate different wire combinations, making it adaptable for various electrical jobs.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries
• Color: Yellow

Technical Specifications

• Type: Twist-On
• Voltage Rating: 600 VAC
• Wire Size: 18 to 10 AWG
• Temperature Rating: 221 deg F
• Material: Flame-retardant polypropelene
• Dimensions: 0.48 in Dia x 1.015625 in W x 0.6875 in H
• Packaging: 500 connectors per bag
• Application: For insulating or joining two or more conductors
