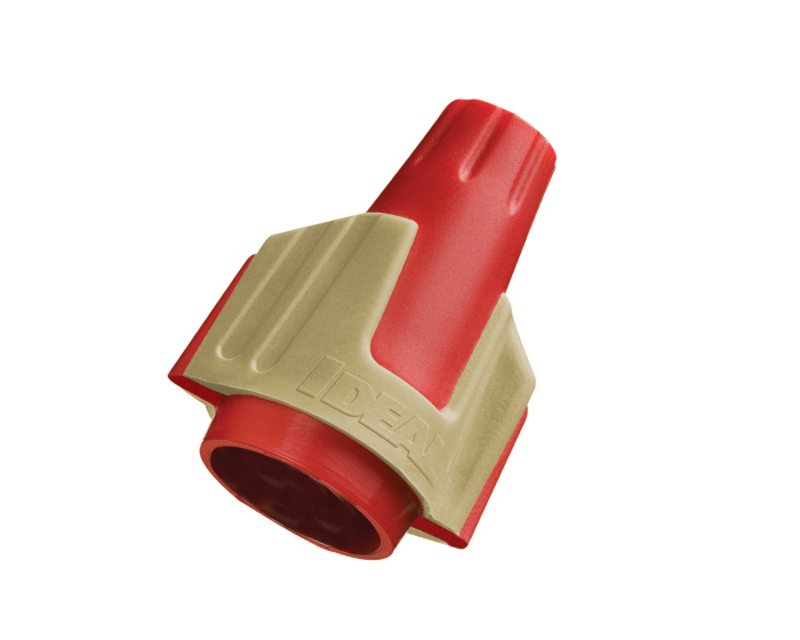

IDEAL 30-644J Twister PRO Wire Connector Model 344 Red/Tand 500/Jar

Product Description

IDEAL 30-644J Twister PRO Wire Connector is designed for reliable electrical connections. This connector supports a conductor range of twenty-two to eight AWG. It can connect two to four conductors efficiently.

• Material: Flame-retardant polypropylene
• Voltage Rating: Six hundred volts
• Special Features: UL 94V-2 flame-retardant shell rated at one hundred five degrees Celsius

Product Highlights

The Twister PRO Wire Connector offers an expanding square-wire spring for reliable connections. Its swept wings provide comfort and reduce fatigue during installation.

Product Information

Standard Information

• Brand: IDEAL
• Model Number: 344

Technical Specifications

• Conductor Range: twenty-two to eight AWG, two/eighteen AWG minimum, four/ten AWG maximum
• Number of Conductors: two to four
• Material: Flame-retardant polypropylene
• Color: Red/Tan
• Voltage Rating: six hundred volts
• Environmental Conditions: Tough, UL 94V-2 flame-retardant shell rated at one hundred five degrees Celsius (two hundred twenty-one degrees Fahrenheit)
• Wire Type: Copper
• Temperature Rating: two hundred twenty-one degrees Fahrenheit
