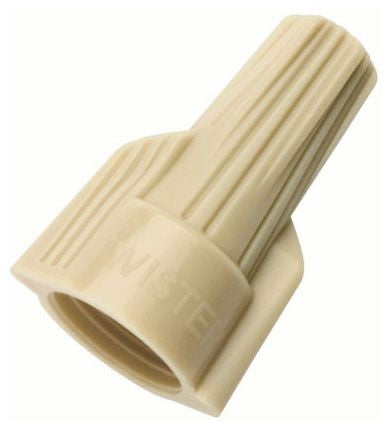

Ideal 30-641 Twister Wire Connector, 600V, 22 - 8 AWG, 341

Product Description

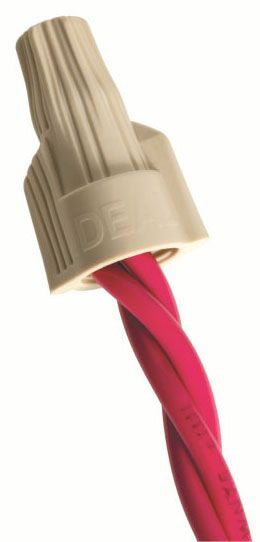

The Ideal 30-641 Twister Wire Connector is designed for reliable and safe electrical connections. It features a flame-retardant polypropylene shell, suitable for a conductor range of twenty-two to eight AWG. The live-action spring allows for secure connections with solid and stranded wire.

• Accepts wire combinations from twenty-two to eight AWG
• Rated for six hundred volts and suitable for residential and commercial use
• Reinforced with a robust, flame-retardant material for enhanced performance

Product Highlights

This connector efficiently accommodates various wiring configurations, thanks to its expanding square wire spring and swept wings, which facilitate easier grip and comfort during installation.

Product Information

Standard Information

• Brand: Ideal
• MPN: 30-641

Technical Specifications

• Voltage Rating: 600 VAC
• Material: Flame-retardant polypropylene
• Dimensions: 0.54 inches diameter x 0.72 inches width x 1.14 inches height
• Conductor Range: 22 - 8 AWG
• Application: Insulating or joining multiple conductors
• Temperature Rating: 221 degrees Fahrenheit
• Standard Compliance: UL 486C, CSA C22.2, RoHS
