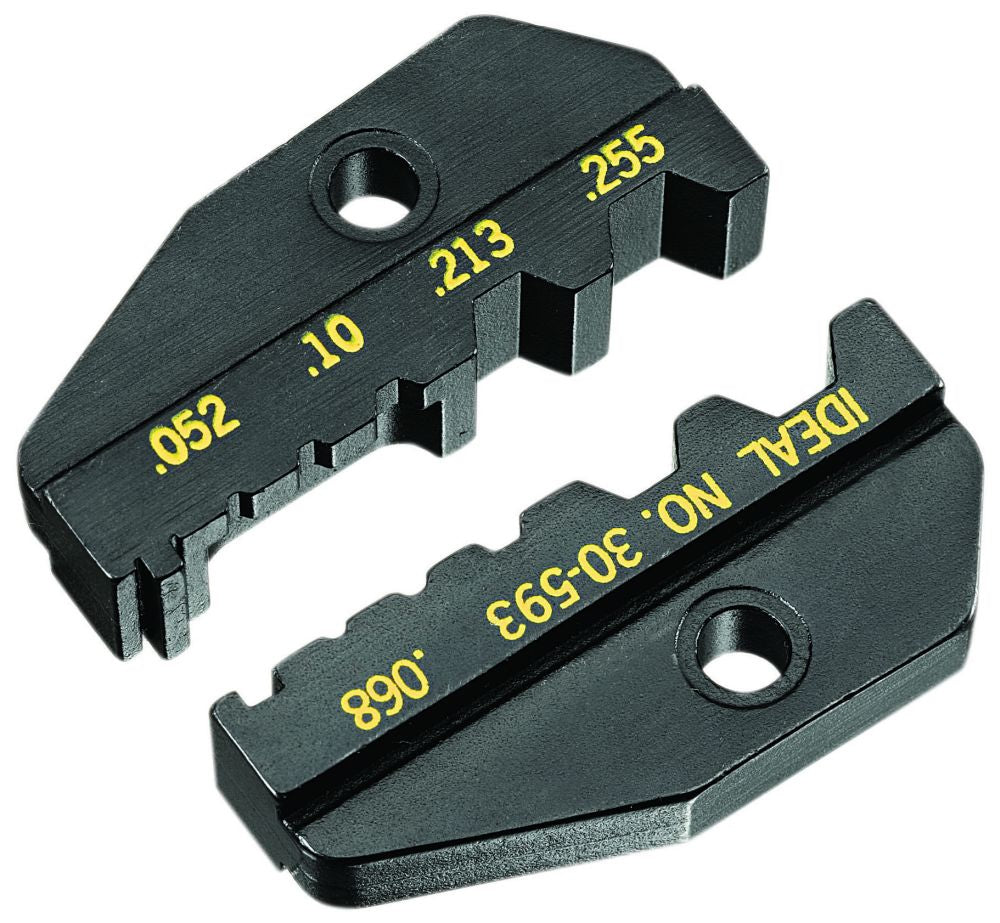

Ideal 30-593 Bnc Tnc Die Set

Product Description

The IDEAL 30-593 is a BNC/TNC die set designed for use with compatible IDEAL crimping tools. It provides the correct die profile for terminating BNC and TNC coaxial connectors, ensuring consistent, repeatable crimps on coaxial cable assemblies. This type of die set is a standard consumable accessory for low-voltage and data cabling technicians working in security, audio/video, and networking applications. Swapping die sets allows a single crimp tool frame to handle multiple connector types, reducing the number of tools a technician needs on the job.

This die set is suited for residential and commercial low-voltage installations where BNC or TNC connectors are required. Typical applications include CCTV and security camera wiring, RF antenna connections, and network infrastructure terminations. Low-voltage technicians and data/AV installers are the primary users. It is appropriate for both new construction wiring and service or retrofit work on existing coaxial runs.

Key Features

• Designed for BNC and TNC coaxial connector crimping
• Die set format allows use with a compatible IDEAL crimp tool frame
• Supports consistent, repeatable crimp terminations on coaxial assemblies
• Reduces tool inventory by enabling multi-connector capability in one tool frame

Compatibility

Designed as a replacement or accessory die set for compatible IDEAL crimp tool frames that accept interchangeable dies for BNC and TNC coaxial connector termination.

Installation Notes

Die set installation and removal should be performed with the crimp tool unloaded and no cable or connector in the jaw. Follow the crimp tool manufacturer's instructions for seating and securing the die set in the frame before use. Low-voltage technicians should verify that the die set profile matches the specific connector series being terminated prior to crimping. Work should comply with applicable local low-voltage wiring codes and standards.

Technical Specifications

• Connector Types: BNC, TNC
• UPC: 78325030593

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-593
