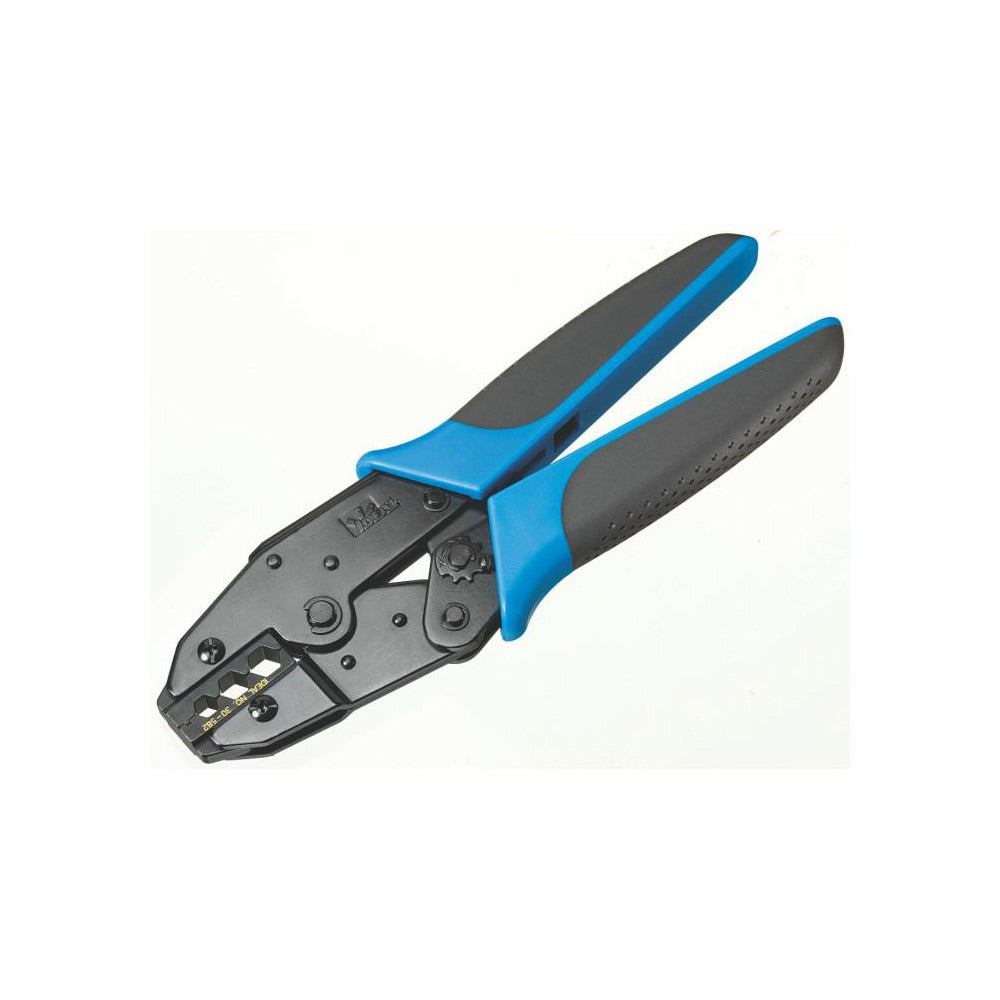

Ideal 30-503 Coax Crimper F-type RG-59 RG-6

Product Description

The IDEAL 30-503 is a heavy-duty professional ratcheting coaxial cable crimping tool designed for F-Type CATV coax connectors on RG-59 and RG-6 cable. The ratcheting mechanism delivers consistent, repeatable crimps by preventing the tool from releasing until full crimp force is applied. This reduces incomplete crimps and connector failures in the field. The 30-503 ships with the 30-506 Crimpmaster frame and a BNC die set included. Licensed electricians, low-voltage technicians, and cable installers rely on this tool for residential and commercial CATV distribution work.

The IDEAL 30-503 is suited for residential and commercial installations where F-Type coax connectors are terminated on RG-59 or RG-6 cable, including RG-6 Quad Shield. Typical applications include cable television distribution, antenna wiring, and satellite feed lines. The handheld form factor makes it practical for both bench work and in-wall or attic cable runs. Technicians working on structured wiring panels or individual outlet terminations will find the ratcheting action especially useful when working in tight spaces.

Key Features

• Ratcheting crimp mechanism ensures full crimp force before tool release
• Compatible with RG-59, RG-6, and RG-6 Quad Shield F-Type crimp connectors
• Includes 30-506 Crimpmaster frame and BNC die set
• Heavy-duty professional handheld construction for field and bench use
• F-Type CATV connector style for standard coaxial cable terminations

Compatibility

Designed for use with RG-59, RG-6, and RG-6 Quad Shield F-Type crimp connectors in CATV coaxial cable applications.

Installation Notes

This tool is typically used by low-voltage technicians and licensed electricians performing coaxial cable terminations. Before beginning any coax work in an energized system, disconnect or verify that all signal sources and power injectors are de-energized. Ensure the correct die set is installed for the connector type being crimped. Follow manufacturer connector specifications and local low-voltage wiring codes when terminating coax in structured wiring or CATV distribution systems.
