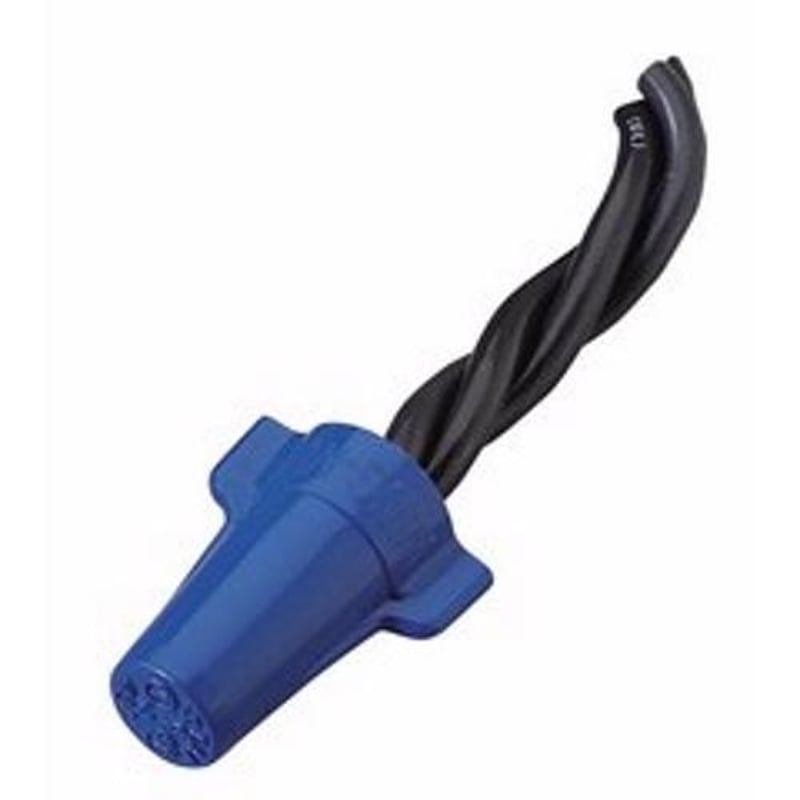

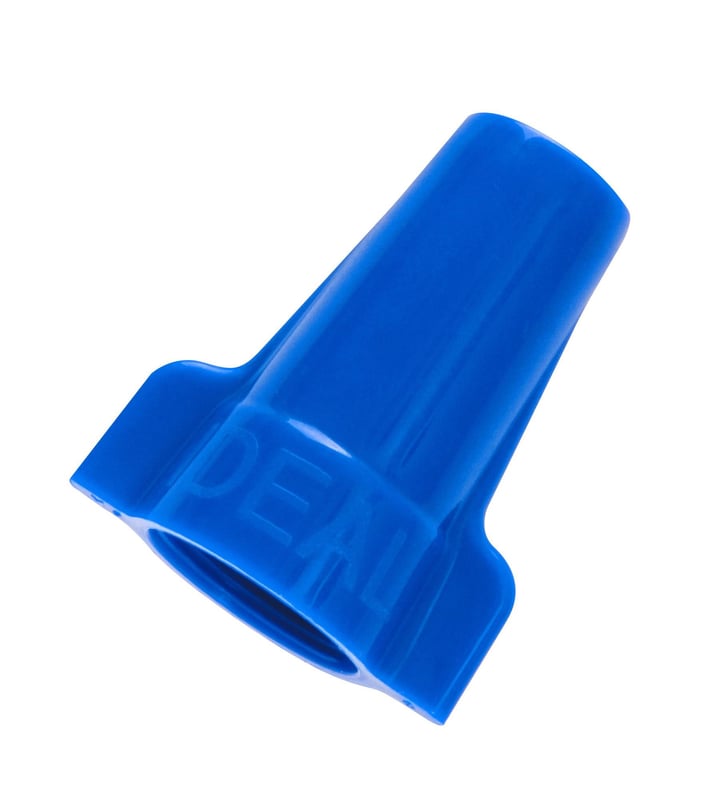

IDEAL 30-454 Wing-Nut Wire Connector, Model 454 Blue, 25/Box

Product Description

The IDEAL 30-454 wing-nut wire connector is designed for securing and insulating multiple conductors. This product consists of a flame-retardant polypropylene shell and is suitable for use with a range of wire sizes. The pack includes twenty-five connectors, each ideal for joining different conductors safely and efficiently.

• Type: Twist-On
• Color: Blue
• Box Quantity: Twenty-five

Product Highlights

This connector is CSA certified and UL listed, ensuring compliance with safety standards. It provides excellent dielectric protection, making it suitable for a variety of electrical applications.

Product Information

Standard Information

• Brand: IDEAL
• Part Number: 30-454

Technical Specifications

• Material: Flame-retardant polypropylene shell
• Voltage Rating: 600V
• Conductor Range: 14 - 6 AWG, Min 3 - 12, Max 1-6 with 2-8
• Number of Conductors: 1 to 6
• Special Features: Complies with Federal Specification W-S-610E, deep skirt to protect against flash-over, UL94V-2 flammability rating
• Application: Insulating or joining multiple conductors
• Environmental Conditions: Tough, rated at 105 degrees Celsius (221 degrees Fahrenheit)
