IDEAL 30-452 Wing-Nut Wire Connector, Model 452 Yellow, 100/Box

Product Description

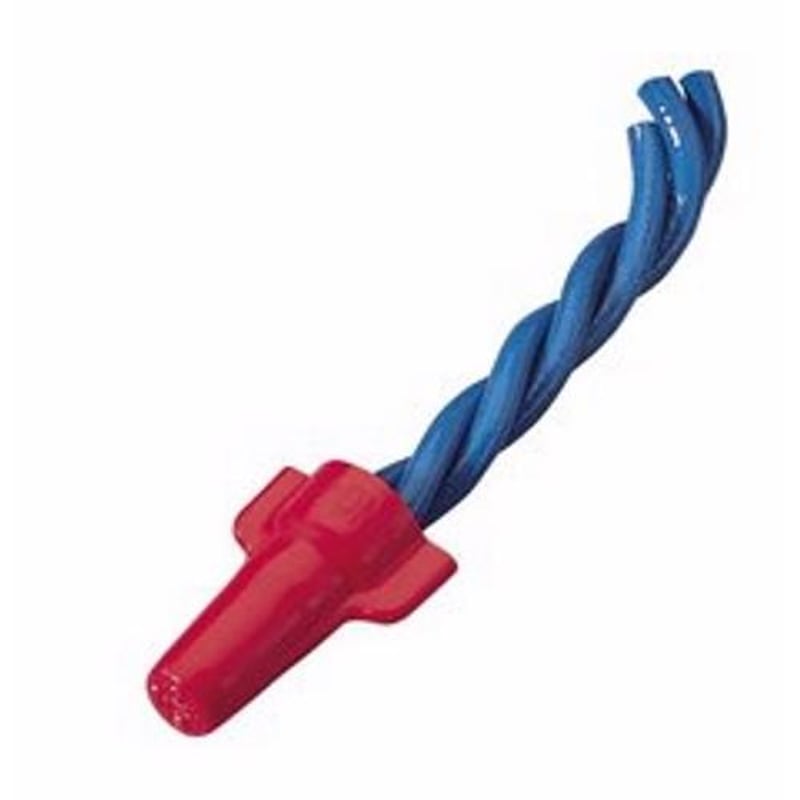

The IDEAL 30-452 Wing-Nut Wire Connector is designed for securely joining and insulating multiple wires. This product is suitable for use with conductors ranging from eighteen to eight AWG. The connectors are easy to use, requiring no pre-twisting, making installation quick and effective.

• Includes 100 connectors per box
• Flame-retardant polypropylene shell
• CSA Certified and UL Listed

Product Highlights

The IDEAL 30-452 Wing-Nut Wire Connector ensures reliable connections for various electrical applications. Ideal for electricians, this connector features a deep skirt that protects against flash-over.

Product Information

Standard Information

• Brand: IDEAL
• MPN: 30-452

Technical Specifications

• Box Quantity: 100
• Color: Red
• Material: Flame-retardant polypropylene shell
• Voltage Rating: 600V
• Conductor Range: 18 - 8 AWG
• Number Of Conductors: 1 to 6
• Flammability Rating: UL 94V-2
• Height: 15/16 inches
• Width: 1-15/64 inches
