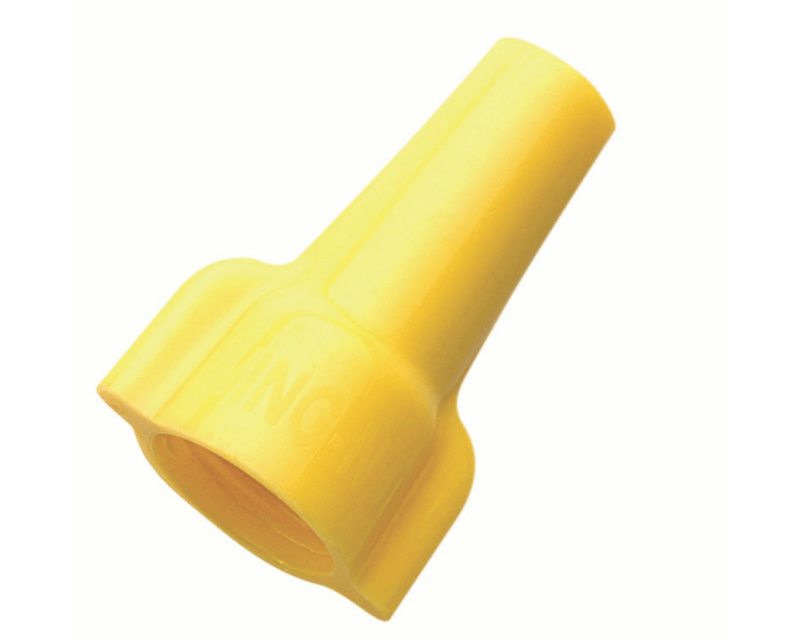

IDEAL 30-451 Wing-Nut Wire Connector, Model 451 Yellow, 100/Box

Product Description

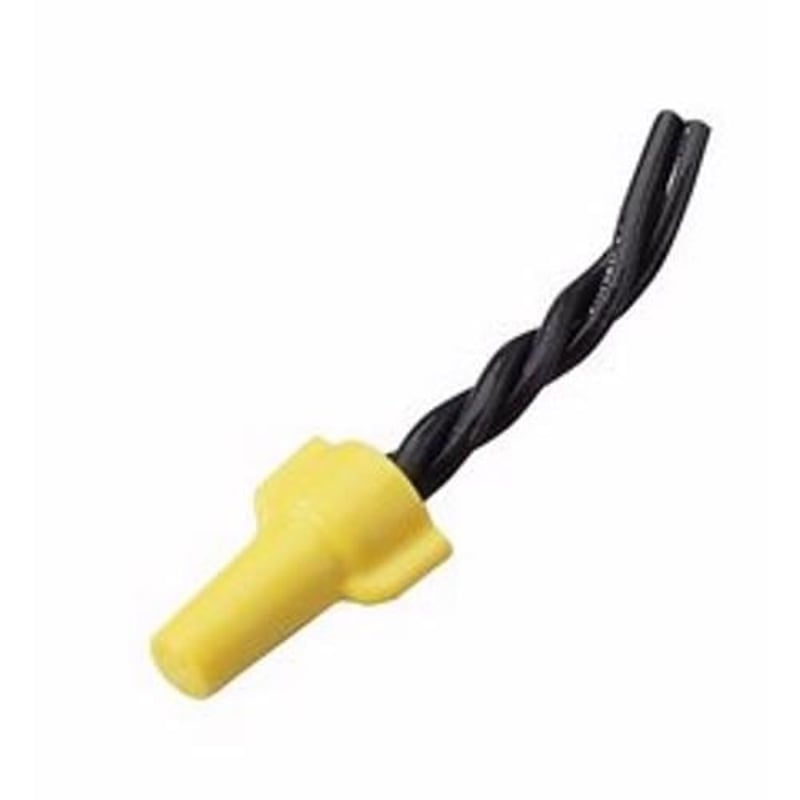

The IDEAL 30-451 Wing-Nut Wire Connector is designed for connecting a variety of wire combinations. This connector allows for both simple and complex wiring tasks with ease. It is suitable for use with a range of conductors from one to six and accommodates wire sizes from eighteen to ten AWG. The connector features a flame-retardant polypropylene shell and has a voltage rating of six hundred volts.

• High-leverage, contoured wing for enhanced torque.
• Removable for reuse with same or larger combinations.
• UL Listed to 486C and CSA Certified to C22.2 #188.

Product Highlights

This wire connector is engineered for flexibility and reliability, ensuring secure connections in various environments.

Product Information

Standard Information

• Brand: IDEAL
• Model Number: 451

Technical Specifications

• Color: Yellow
• Material: Flame-retardant polypropylene
• Voltage Rating: 600V
• Conductor Range: 18 - 10 AWG, Min 2 - 18, Max 3 - 12
• Width: 1.06 inches
• Height: 0.69 inches
• Flammability Rating: UL 94V-2
• Application: Insulating or joining 2 or more conductors
