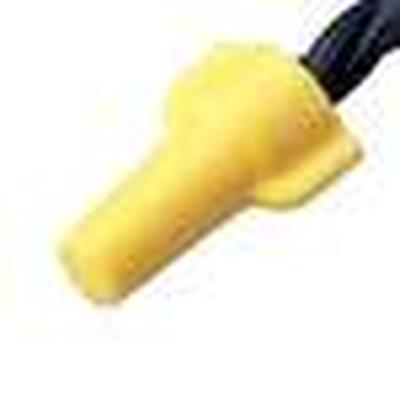

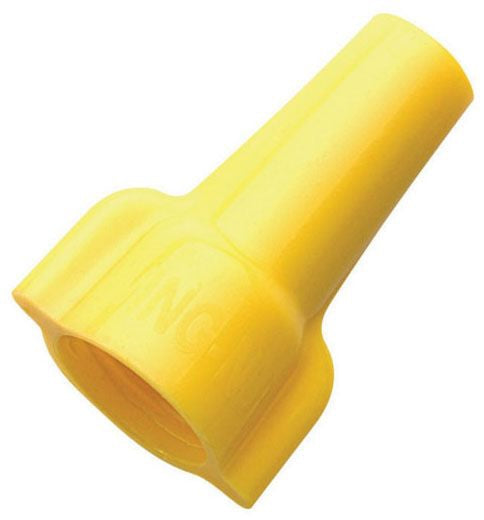

Ideal 30-451 Flame-Retardant Winged Twist-On Wire Connector 600V 18 to 10 AWG Yellow

Product Description

The Ideal 30-451 is a flame-retardant winged twist-on wire connector designed for professional use. It accommodates wire sizes from eighteen to ten AWG, making it versatile for various applications. This connector features a contoured winged design which provides a strong grip for secure connections.

• Rated for 600 volts, ensuring safety in electrical connections.
• Live-action spring expands to accommodate different wire combinations without pre-twisting.
• Reusability allows for easy circuit changes and modifications.

Product Highlights

Designed with a high-leverage grip, the Ideal 30-451 offers quick and easy installation for both solid and stranded wires. It is ideal for situations requiring reliable performance in challenging environments.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• MPN: 30-451
• Color: Yellow
• Material: Flame-retardant Polypropylene Shell
• Voltage Rating: 600 VAC
• Wire Size: 18 to 10 AWG
• Dimensions: 0.48 inches diameter x 1.015625 inches width x 0.6875 inches height
• Temperature Rating: 221 degrees Fahrenheit
• Application: Insulating or joining two or more conductors
