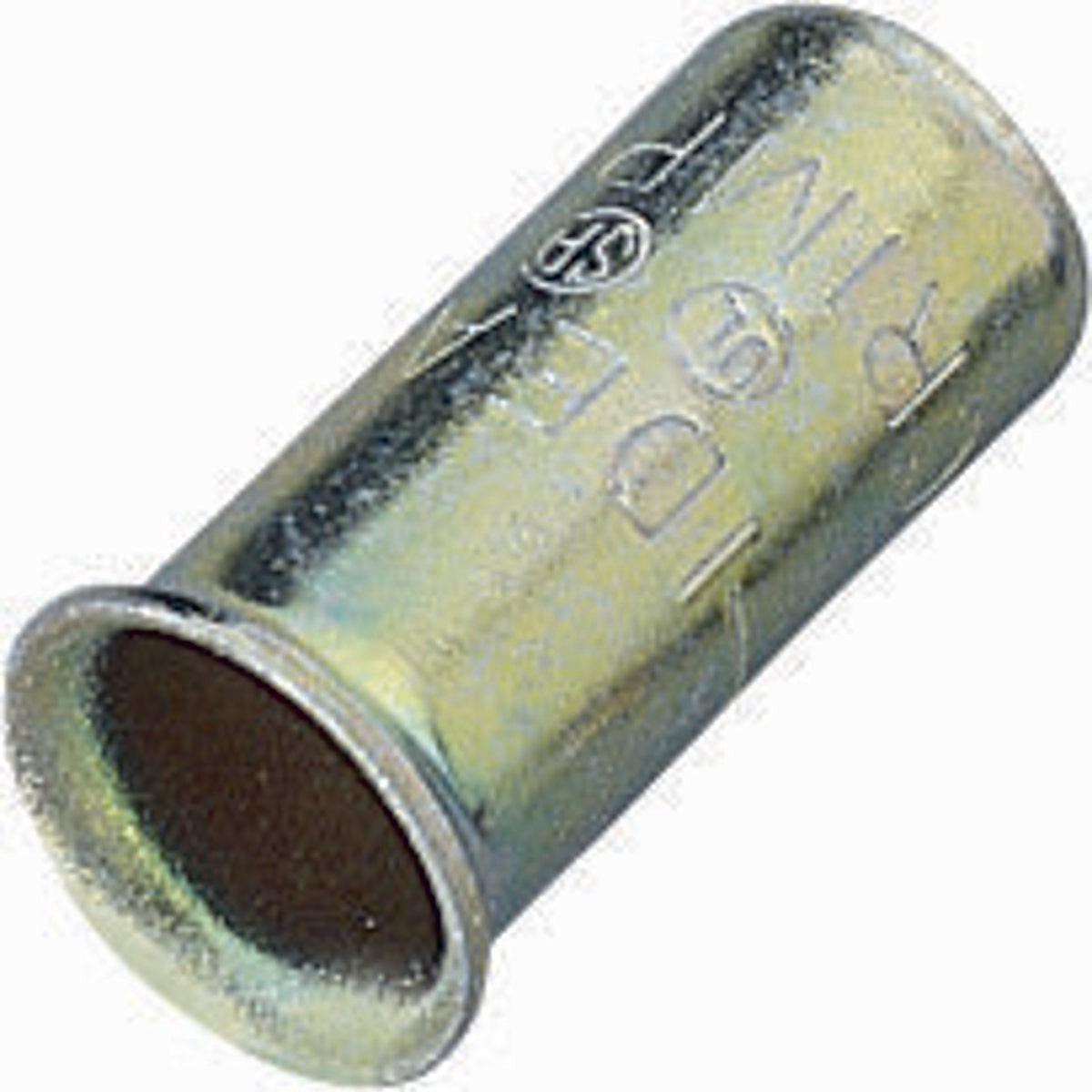

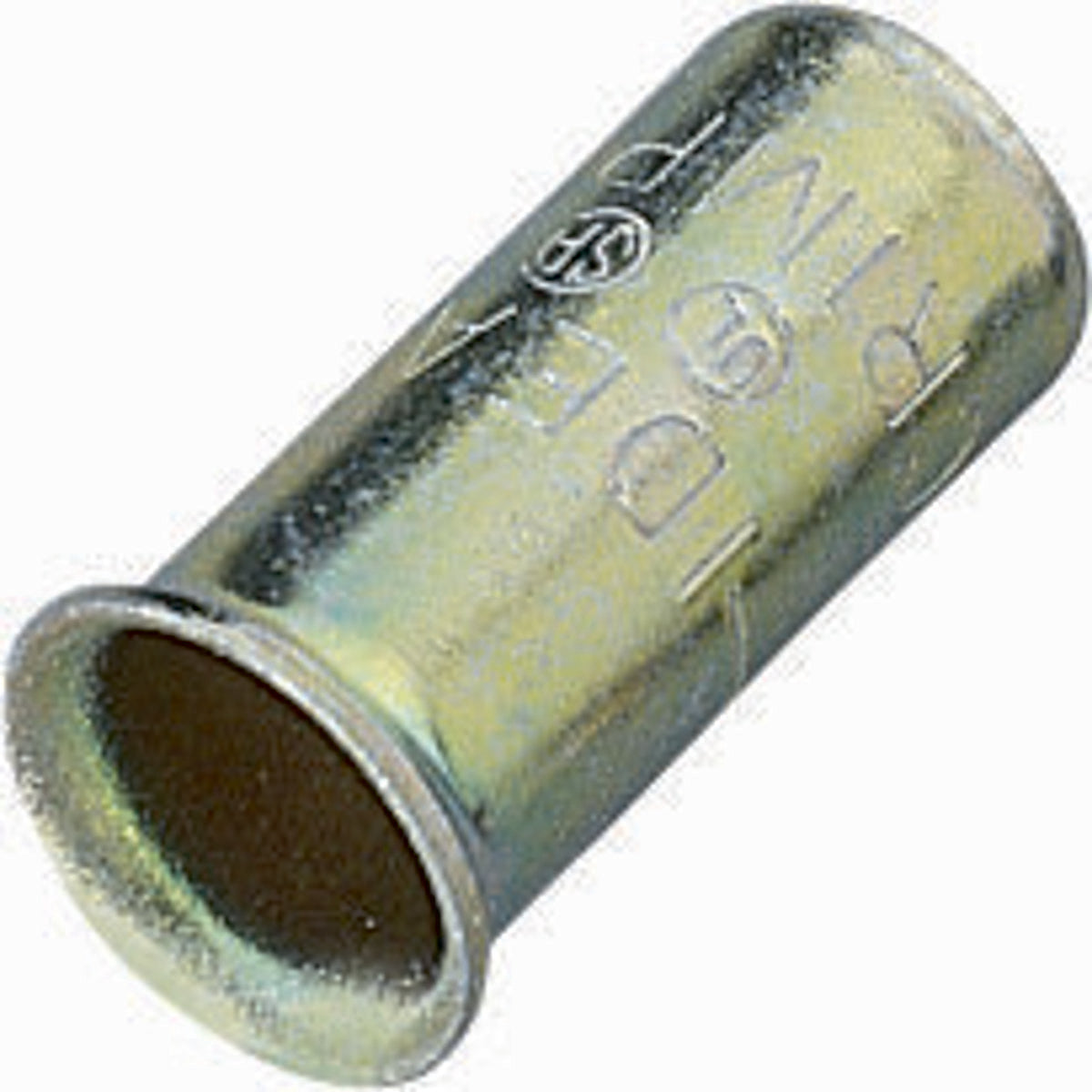

Ideal 30-412 Crimp Connector, 18 to 4 AWG, Copper/Steel

Product Description

The Ideal 30-412 Crimp Connector is designed for making secure and permanent pressure-type connections. This product is suitable for use in environments with high vibration and is ideal for OEM installations. The construction features a combination of steel and copper, which allows it to accommodate a wide range of combinations. It is also compatible with insulating caps for added safety against electrical shock.

• Fast and permanent connections
• Designed for 14 AWG to 8 AWG conductors
• Meets UL and CSA safety standards

Product Highlights

This crimp connector provides a reliable solution for secure electrical connections, ensuring that crimped joints do not loosen over time.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 30-412
• Voltage Rating: 600 VAC
• Conductor Range: 1/14 with 1/16 AWG minimum, 2/8 with 1/6 AWG maximum
• Material: Steel, Copper Sleeves
• Finish: Zinc-plated
• Country of Origin: United States
• Temperature Rating: 221 degrees F
• Standards: C22.2 No 188 CSA Certified, RoHS Compliant, UL 486C Listed
