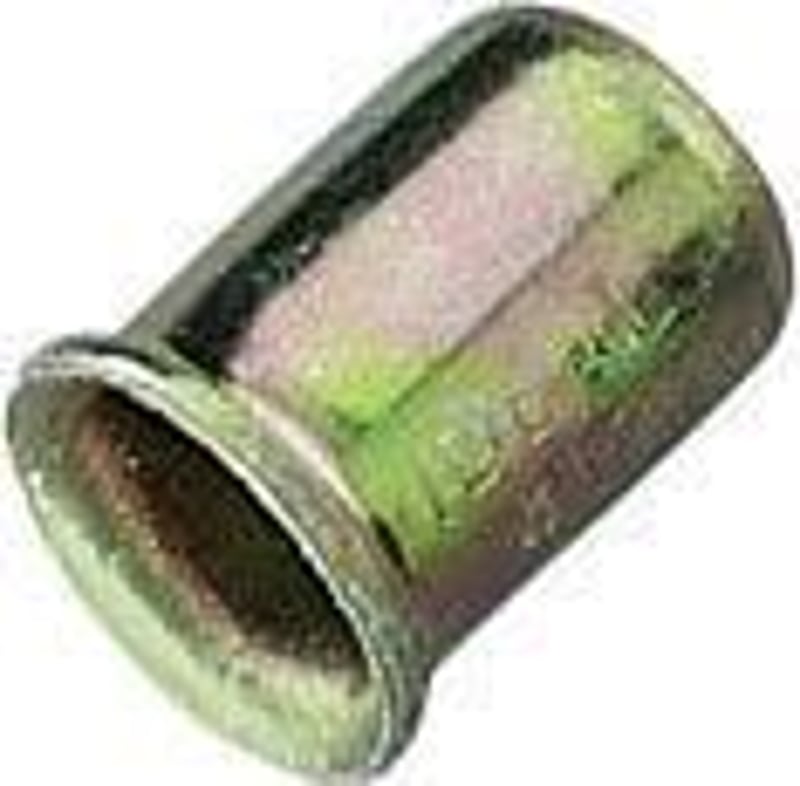

IDEAL 30-410 Steel Crimp Connector, Model 410, 18-10 AWG, 100/Pack

Product Description

The IDEAL 30-410 Steel Crimp Connector is an essential tool for reliable electrical connections. Designed for use with wires ranging from 18 to 10 AWG, this product is sold in packs of one hundred. It provides a secure, permanent pressure-type connection, ideal for various electrical applications.

• Compatible with conductor sizes 18-10 AWG
• Features zinc-plated steel sleeves for enhanced corrosion resistance
• UL Listed to 486C and CSA Certified to C22.2 #188

Product Highlights

This crimp connector ensures stable connections that will not loosen over time when properly crimped.

Product Information

Standard Information

• Brand: IDEAL
• MPN: 30-410

Technical Specifications

• Conductor Range: 1/14 AWG with 1/18 AWG minimum, 2/10 AWG with 2/14 AWG maximum
• Voltage Rating: 600V
• Material: Steel, Copper Sleeves
• Finish: Zinc-plated
• Application: Designed for fast, permanent connections
• Comply With: Federal Specification W-S-610E
• Special Features: Resist vibration and corrosion
