Ideal 30-383X PowerPlug Luminaire Disconnect 18 to 12AWG 1.48IN

Product Description

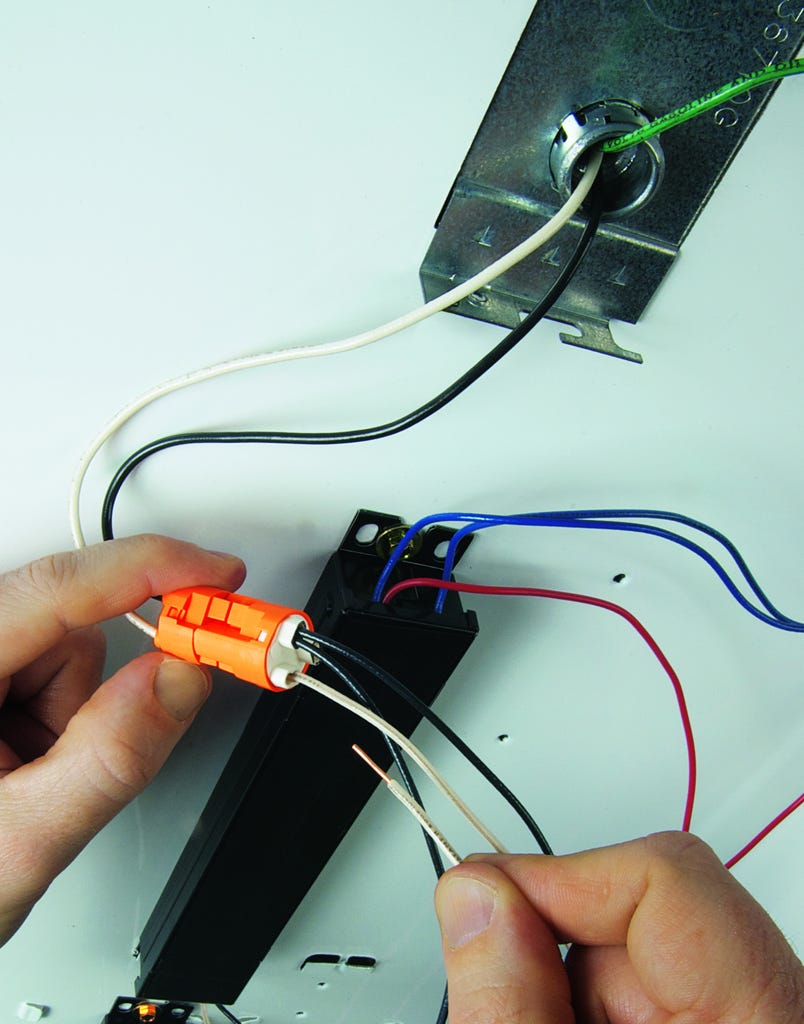

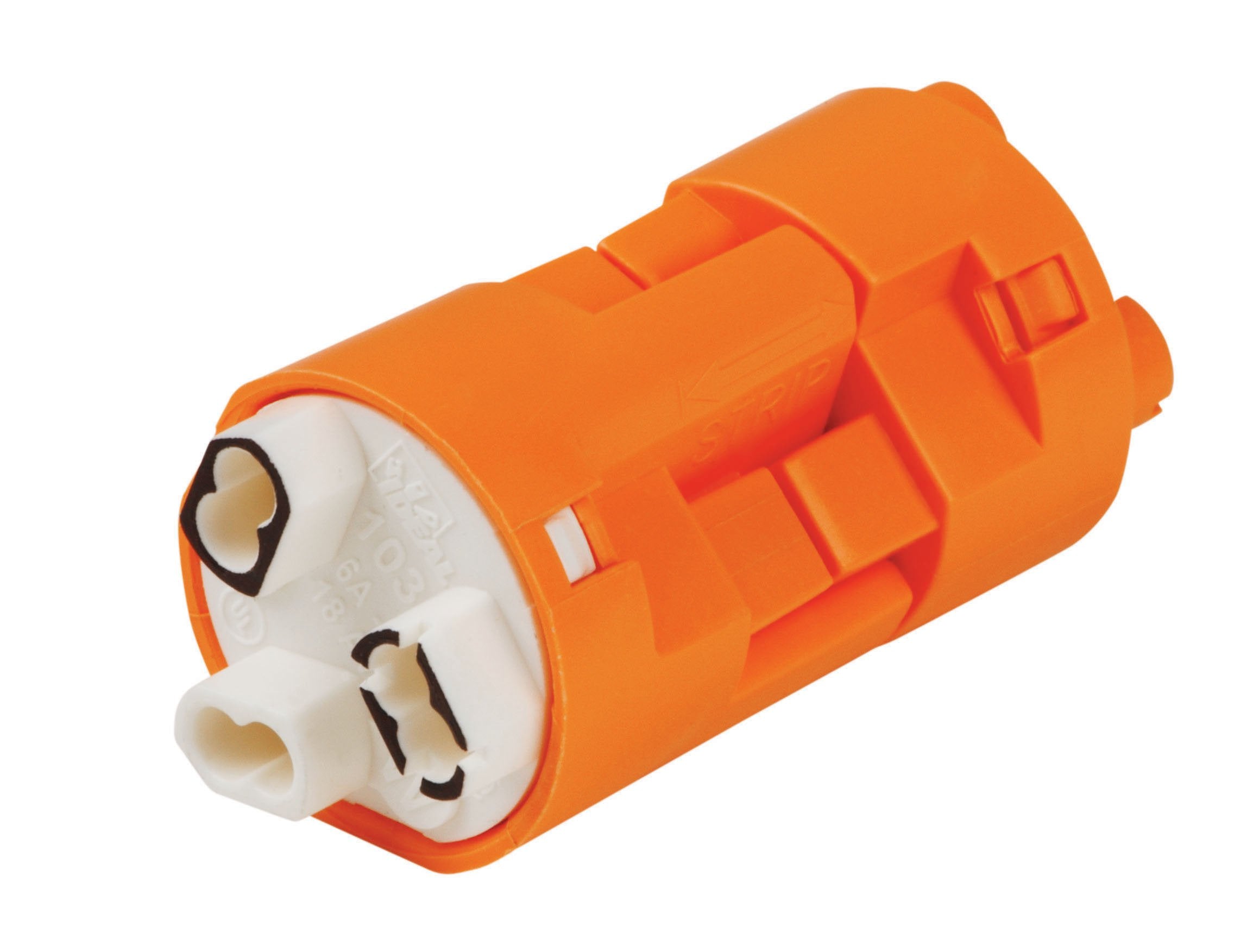

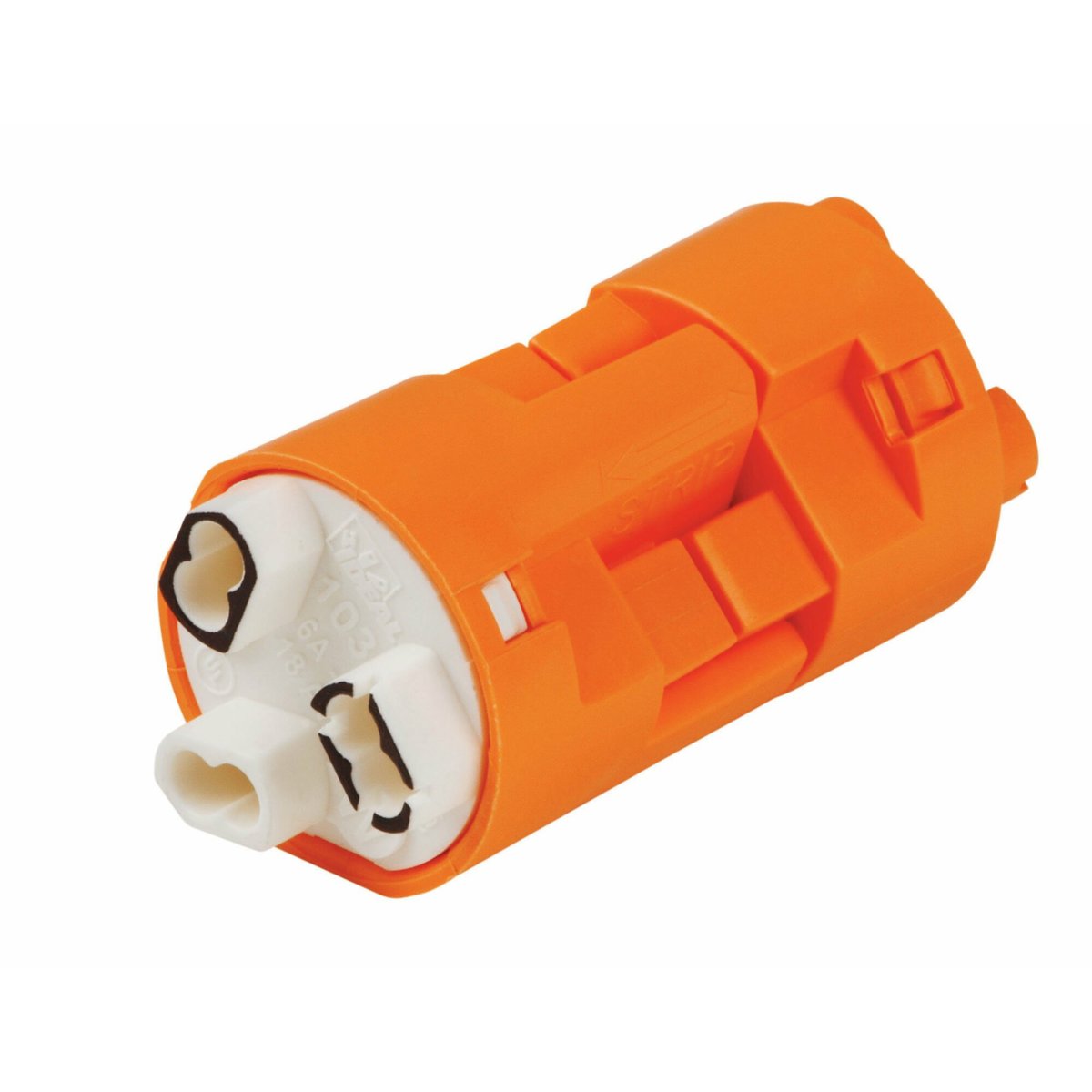

The Ideal 30-383X PowerPlug® luminaire disconnect features patented Ideal® push-in technology that quickly locks wires in place. Designed for 3-wire standard connections with 18 to 12 AWG wire, it has an overall length of 1.48 inches. It reduces electrical shock hazard during luminaire replacement by safely disconnecting the wiring. The disconnect easily fits through 1/2 inch knockouts for quick installation.

• Patented design allows for safe mating and demating of connector
• 18 to 12 AWG solid, 14 to 12 AWG (19 strand or less) stranded, 12 AWG (19 strand or less), 14 AWG (19 strand or less), 16 AWG (26 strand or less), 18 AWG (16 strand or less) tin bonded wire range
• Low profile design

Product Highlights

Offers push-in technology for quicker connections, saving time and increasing productivity. Meets NEC and CEC code changes for non-residential fluorescent luminaires. Perfect for new, retrofit or OEM lighting installations.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-383X
• Country of Origin: China

Technical Specifications

• Type: 3-Wire Standard
• Finish: Tin Plated
• Material: Nylon Housing, Copper Alloy Contacts
• Wire Size: 18 to 12 AWG
• Manufacturer: Ideal Industries
• Overall Length: 1.48 in
• Voltage Rating: 600 VAC
• Connection Type: Push-In
• Number of Ports: 3
• Temperature Rating: 221 deg F
• Connection Material: Copper Alloy
• Sub Brand: PowerPlug®
• Country of Origin: China
• Made in USA: No
• Amperage Rating: 6 A
• Application: For 2-Ballast, dimming and Switching Fixtures New Installations and Retrofits
• Standard: CSA, UL Listed, RoHS
• UPC: 783250702664
• GTIN: 00783250702664
• Item Type: 3-Wire Standard Version
• AWG: 18-12
• Wiring: 3 Wire
• Voltage: 600V
• Ordering Code: 30-383X
• Product Code: IDEPOWERPLUG3WIRE20
