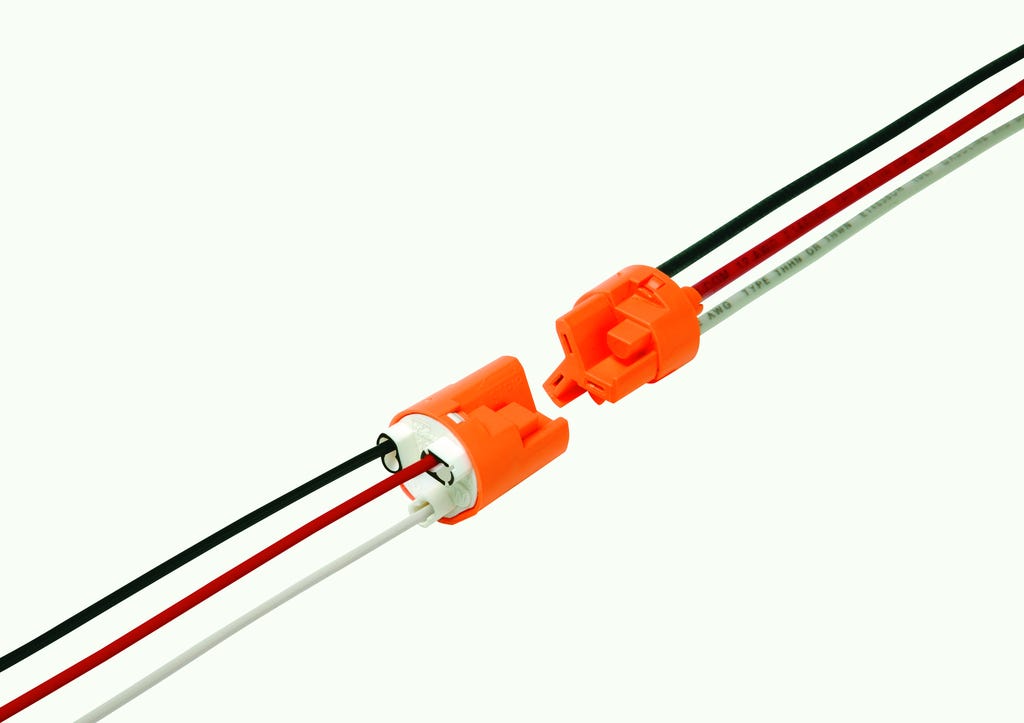

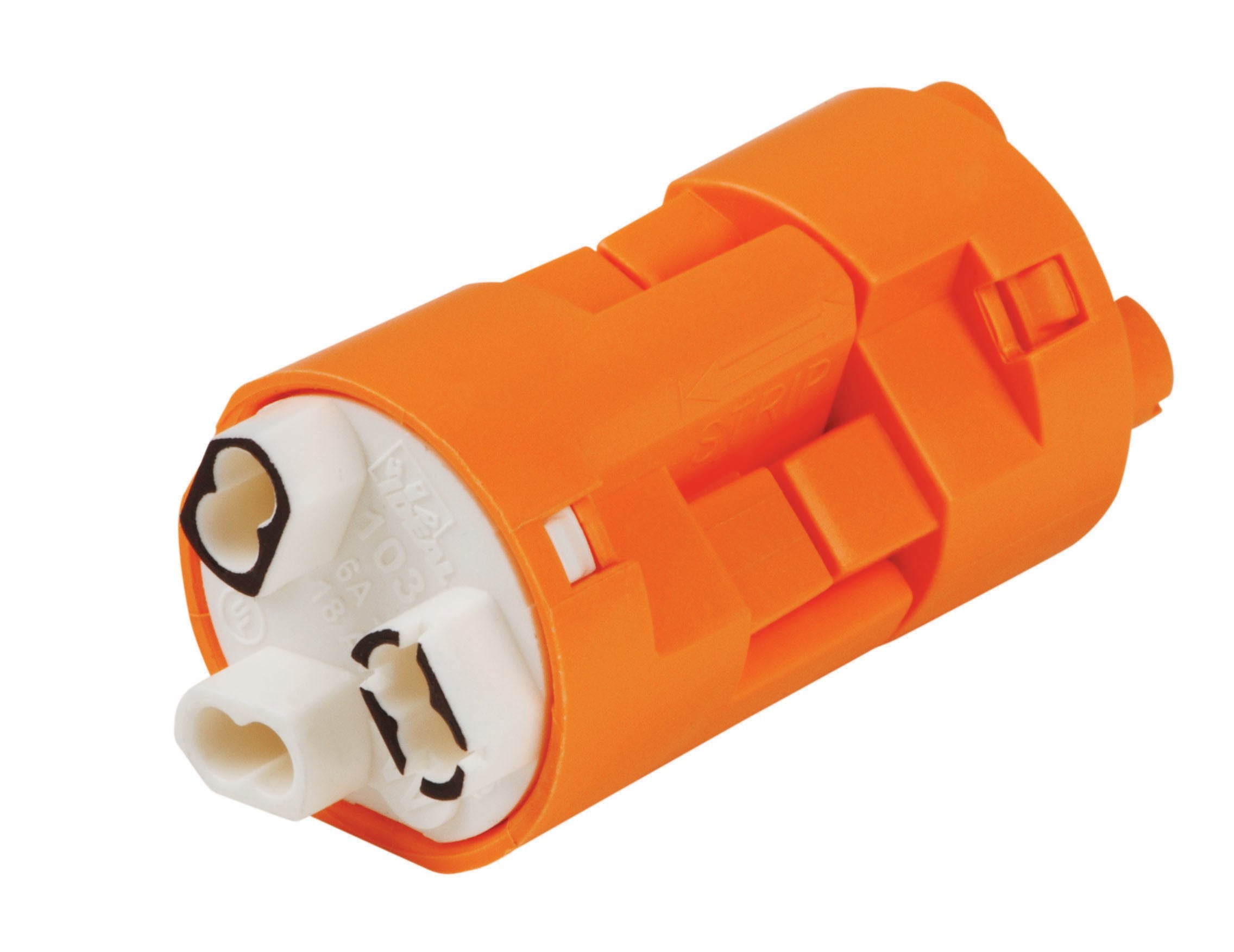

Ideal 30-383X PowerPlug 3-wire Luminaire Disconnect

Product Description

The IDEAL 30-383X PowerPlug is a 3-Wire standard version luminaire disconnect. Constructed with nylon housing and copper alloy contacts, it supports wire sizes from 12 to 18 AWG solid and 12 to 14 AWG stranded, with an amperage rating of 6A and a voltage rating of 600V. It is suitable for 2-ballast, dimming, and switching fixture new installations and retrofits.

• Patented push-in technology quickly locks wires in place
• Allows for safe disconnect of hot and neutral ballast wiring
• Both halves are touch-safe per UL 2459

Product Highlights

This PowerPlug meets CEC and NEC code changes for non-residential fluorescent luminaires and fits through a 1/2 in. knockout.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-383X

Technical Specifications

• Type: 3-Wire Standard Version
• Material: Nylon Housing; Copper Alloy Contacts
• Standard: CSA; UL Listed; RoHS
• Sub Brand: PowerPlug
• Wire Size: 12 - 18 AWG Solid; 12 - 14 AWG Stranded
• Brand Name: Ideal
• Application: For 2-Ballast; dimming and Switching Fixtures New Installations and Retrofits
• Manufacturer: IDEAL
• Voltage Rating: 600 V
• Amperage Rating: 6 A
• Special Features: Meets CEC And NEC Code Changes For Non-Residential Fluorescent Luminaires
• Wires: 3-Wire
• Safety Compliance: UL 2459 CSA Finger-Probe Safety
• Knockout Size: 1/2 in.
