Ideal 30-383X Disconnect Luminaire 1.48in

Product Description

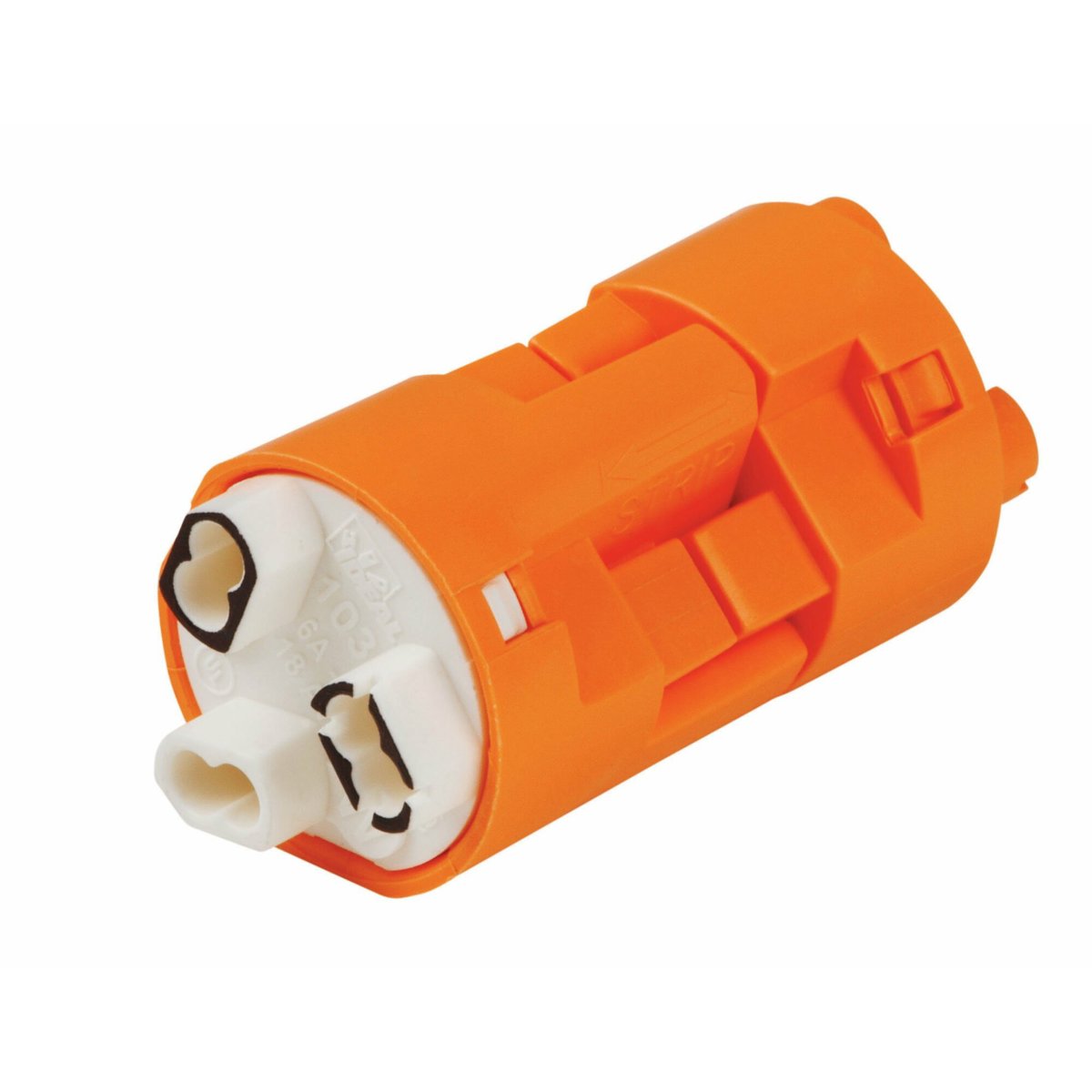

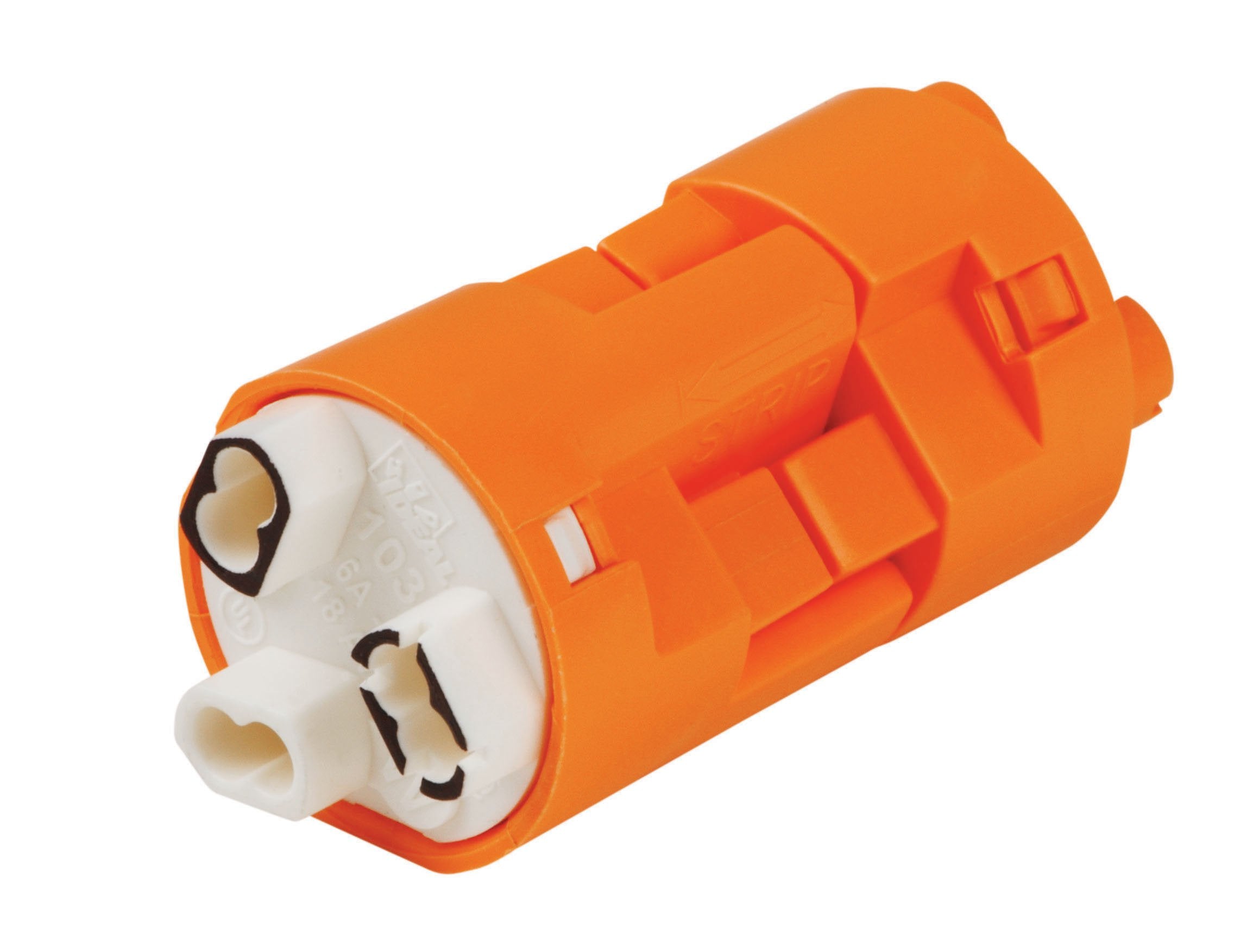

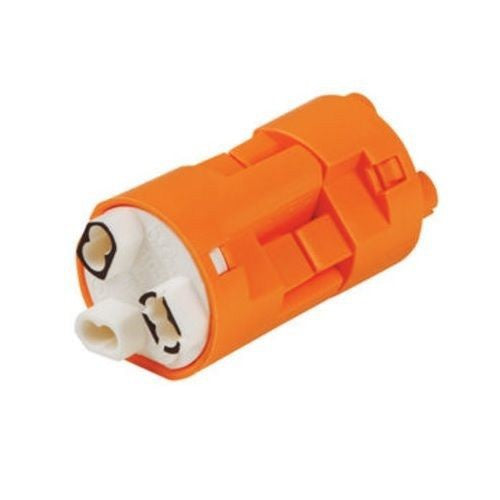

The Ideal 30-383X PowerPlug luminaire disconnect features patented Ideal push-in technology that quickly locks wires in place. It has a voltage rating of 600 VAC and accommodates 18 to 12 AWG wire. The disconnect helps reduce electrical shock hazard during luminaire replacement and easily fits through 1/2 in knockouts for quick installation.

• Patented design allows for safe mating and demating of connector
• Low profile design
• Both halves are touch safe per UL 2459

Product Highlights

Perfect for new, retrofit or OEM lighting installations. Allows safe disconnect of hot and neutral ballast wiring.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-383X
• Country of Origin: China

Technical Specifications

• Type: 3-Wire Standard
• Finish: Tin Plated
• Material: Nylon Housing, Copper Alloy Contacts
• Wire Size: 18 to 12 AWG
• Manufacturer: Ideal Industries
• Overall Length: 1.48 in
• Voltage Rating: 600 V
• Connection Type: Push-In
• Number of Ports: 3
• Temperature Rating: 221 deg F
• Connection Material: Copper Alloy
• Amperage Rating: 6 A
• Application: For 2-Ballast, dimming and Switching Fixtures New Installations and Retrofits
• Standard: CSA, UL Listed, RoHS
• Sub Brand: PowerPlug
• Special Features: Features: Meets CEC And NEC Code Changes For Non-Residential Fluorescent Luminai
• AWG: 18-12
• Wiring: 3 Wire
• Voltage: 600V
