Product Description

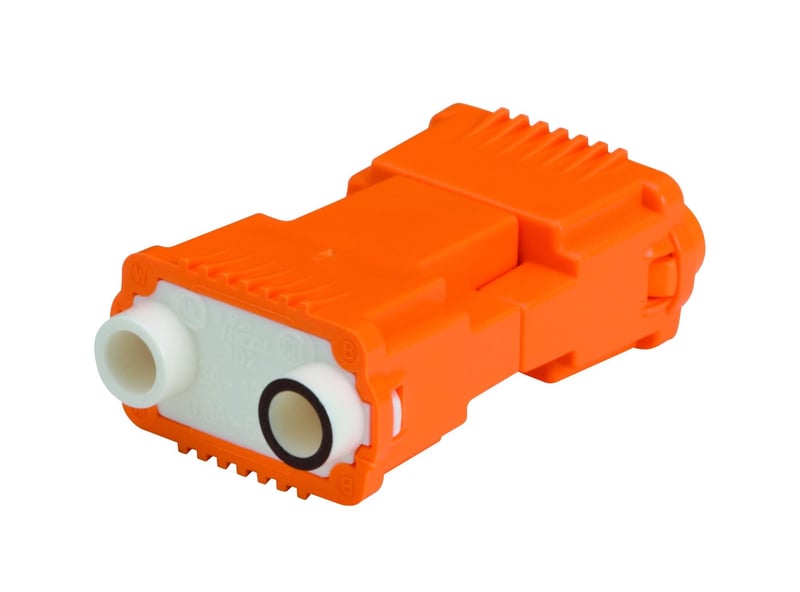

The IDEAL 30-382J is a luminaire disconnect designed for seamless connections in lighting applications. This product features a two-wire standard version, suitable for various wire sizes including twelve to eighteen AWG solid and twelve to fourteen AWG stranded. With a voltage rating of six hundred volts and an amperage rating of six amps, the disconnect is effective for managing electrical systems safely.
- Patented push-in technology allows for quick wire connections.
- Touch-safe design that meets UL 2459 requirements.
- Compatible with one-half inch knockouts for easy installation.
Product Highlights
The IDEAL 30-382J features an innovative design that enhances safety and efficiency in electrical installations. It is ideal for both new installations and retrofits of lighting fixtures.
Product Information
Standard Information
Technical Specifications
-
Wire Size: 12 - 18 AWG Solid, 12 - 14 AWG Stranded
-
Voltage Rating: 600 V
-
Amperage Rating: 6 A
-
Material: Nylon Housing, Copper Alloy Contacts
-
Color: Orange
-
Number Of Ports: 2
-
Temperature Rating: 221 Deg F
-
Application: For 1-Ballast Fixture New Installations and Retrofits
