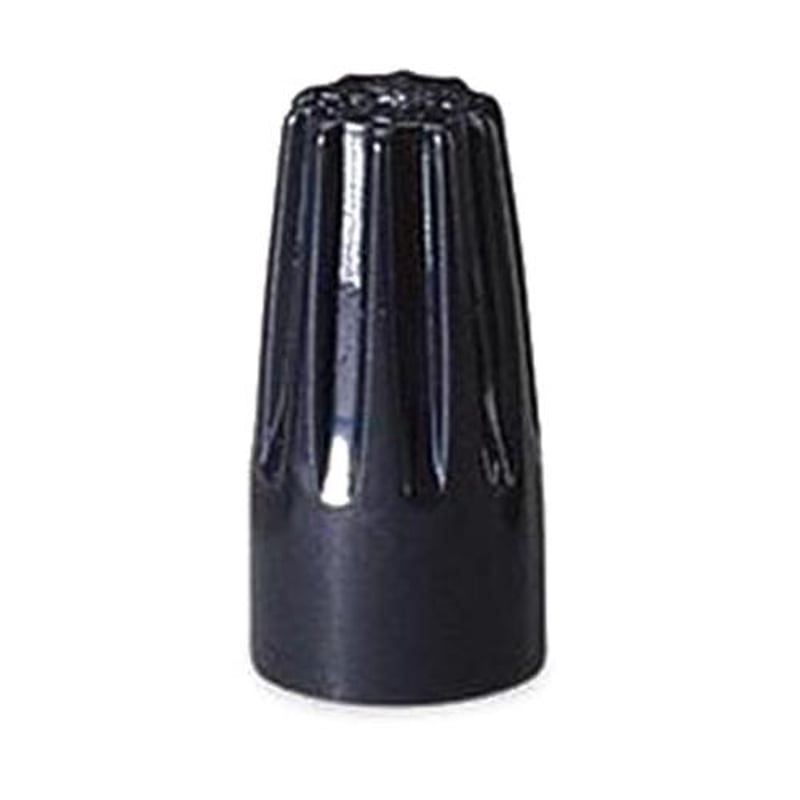

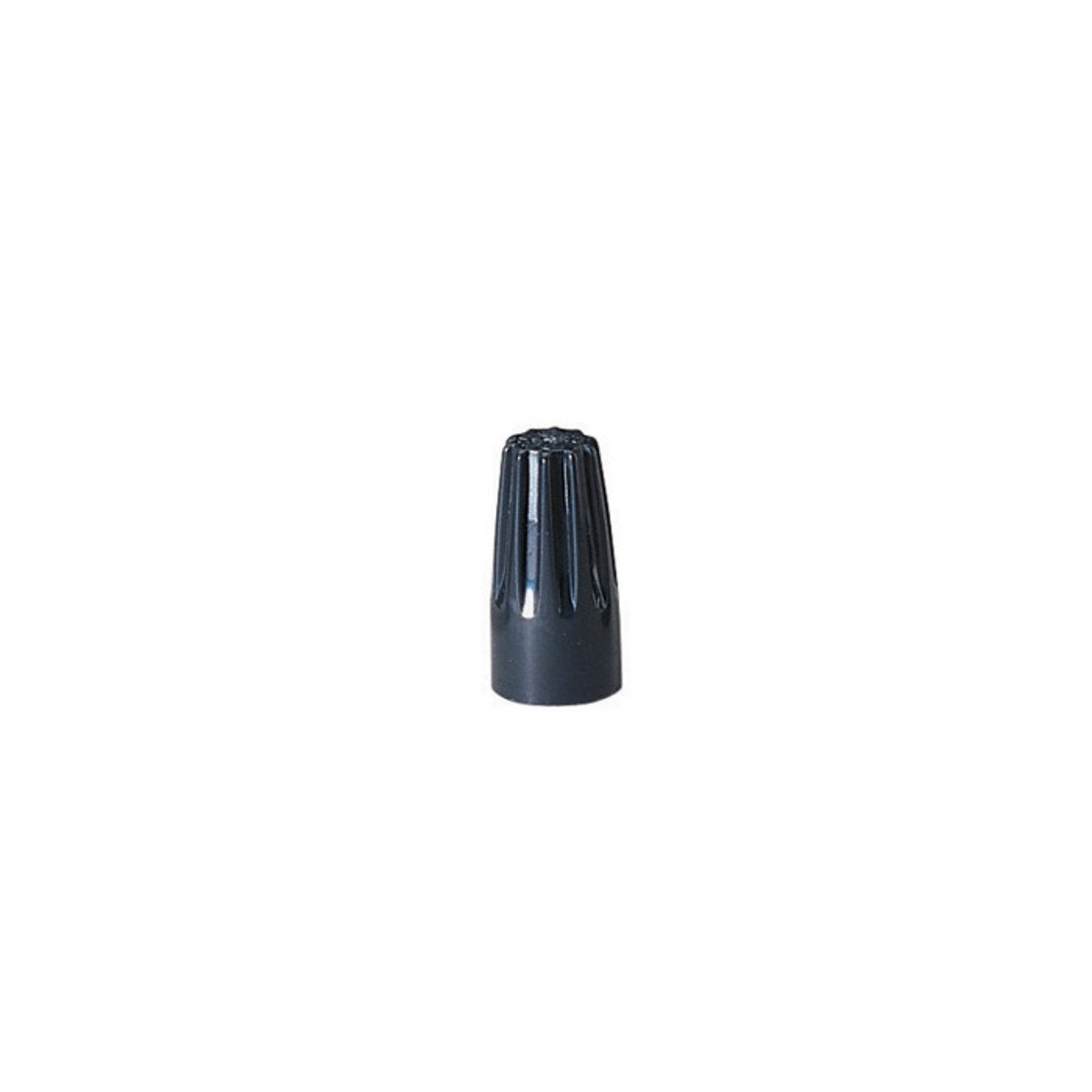

Ideal 30-3629 Wire-Nut High Temperature Twist-On

Product Description

The IDEAL 30-3629 Wire-Nut wire connector set standards for innovation, quality and convenience. With a fixed, square-wire spring and a positive grip shell, it is perfect to twist-on with fingers for a secure connection. It features a flame-retardant thermoplastic shell that withstands environmental extremes and is reusable.

• Fixed, square-wire spring creates its own threads
• Maintains a secure positive grip that will not relax over time
• No pre-twisting required

Product Highlights

This high-temperature twist-on wire connector is UL Listed and CSA certified. It is designed for insulating or joining conductors in extreme heat conditions.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-3629
• Country of Origin: United States

Technical Specifications

• MPN: 30-3629
• Brand: IDEAL
• Sub Brand: Wire-Nut
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining 2 or more conductors in conditions where extreme heat buildup occurs such as high wattage fixtures and signs.
• Color: Black
• Conductor Range: 22 - 14 AWG, Min 1 -18 w/ 1-20, MAX 4-16 w/ 1-20
• Material: THERMOPLASTIC POLYESTER
• Number of Conductors: 1 to 5
• Standard: CSA Certified to C22.2 #188, UL Listed to 486C
• UPC: 783250455416
• GTIN: 00783250455416
• Item Type: High Temperature Twist-On
• Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F)
• Voltage Rating: 600
• Width: 0.44 in
• Height: 0.86 in
• Series: 73B
• Maximum Temperature: 302 Degrees F
• Maximum Voltage: 600 V
• Wire Size Ranges: 22 AWG - 14 AWG
• Insulation Material: PBT
• Max. Single Wire Size: 14 AWG
• Max. Wire Combination: (4) 16 AWG with (1) 20 AWG
• Min. Single Wire Size: 22 AWG
• Min. Wire Combination: (1) 18 AWG with (1) 20 AWG
• UL 94 Flammability Rating: V-2
• Compatible with Product Type: High Temperature
• Maximum Operating Temperature: 302 Degrees F
• Package Quantity: 100
• Termination Method: Twist-on
