Ideal 30-347 Twister ProFLEX 347 R/Y, 250/Bag

Product Description

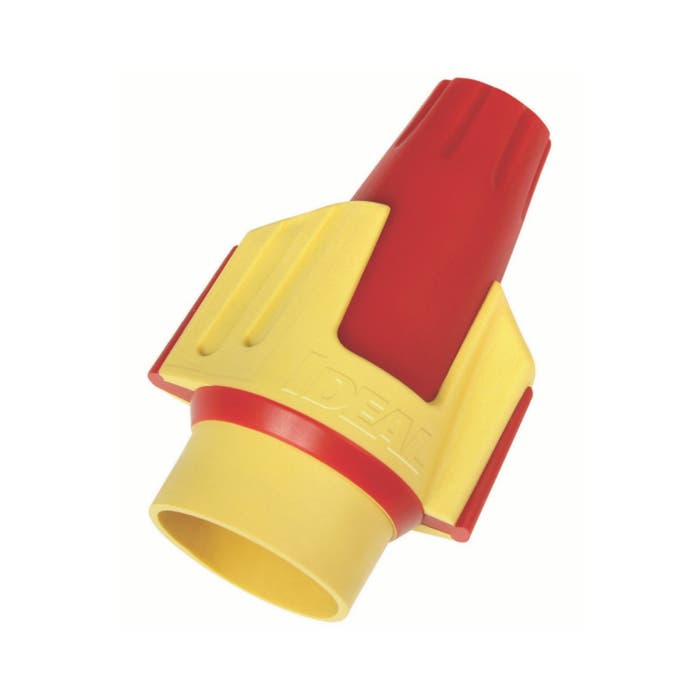

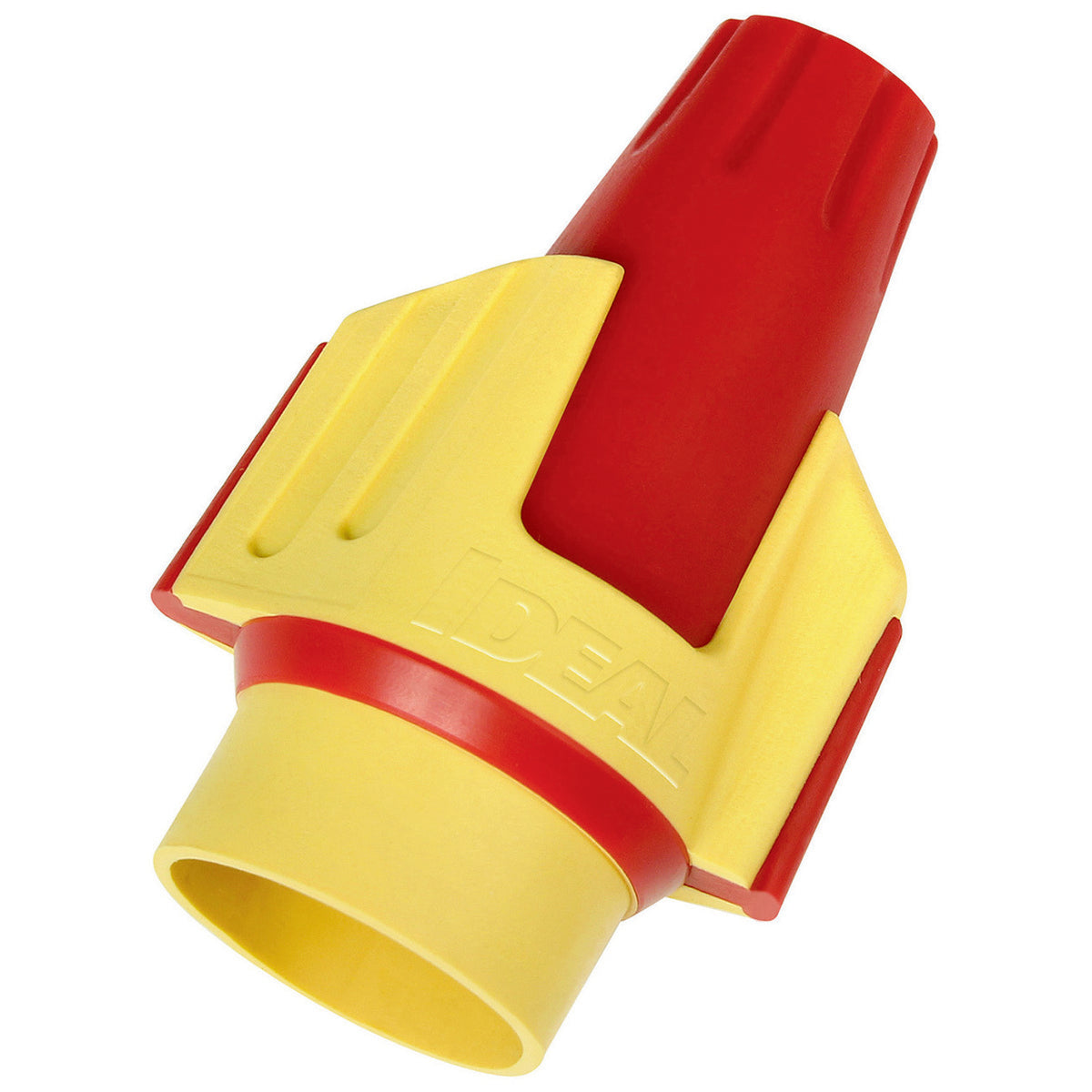

The IDEAL 30-347 Twister ProFLEX combines a comfortable connector with a flexible skirt for added protection. It offers a wide wire combination range and a high voltage rating. UL and CSA Listed for copper wire 22 to 8 AWG. Comes in a bag of 250.

• Flexible skirt provides improved protection and adapts to tightly fit electrical boxes with limited space
• Swept wing design with SureGrip overmold offers greater comfort, leverage, and torque for faster connections
• Expanding square-wire spring and polypropylene shell deliver secure connection every time

Product Highlights

The IDEAL Twister ProFLEX wire connectors provide a secure connection with a flexible skirt for added protection in tight spaces.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-347
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-347
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: United States
• Made in USA: Yes
• UPC: 783250802388
• GTIN: 00783250802388
• Series: 347
• Shell Style: Winged
• Spring Type: Expanding Square Wire
• Temperature Rating: 221 deg F
• Voltage Rating: 1000 VAC
• Wire Size: 22 to 8 AWG, (2) 18 to (4) 10 AWG
• Wire Type: Solid/Stranded Copper
• Material: Thermoplastic Polypropylene/Thermoplastic Elastomer
• UL 94V-2 Flammability Rating: UL 94V-2
• ARRA Compliant: ARRA Compliant
• RoHS Compliant: RoHS Compliant
• IEC 60998-2/60998-2-4: IEC 60998-2/60998-2-4
