Product Description

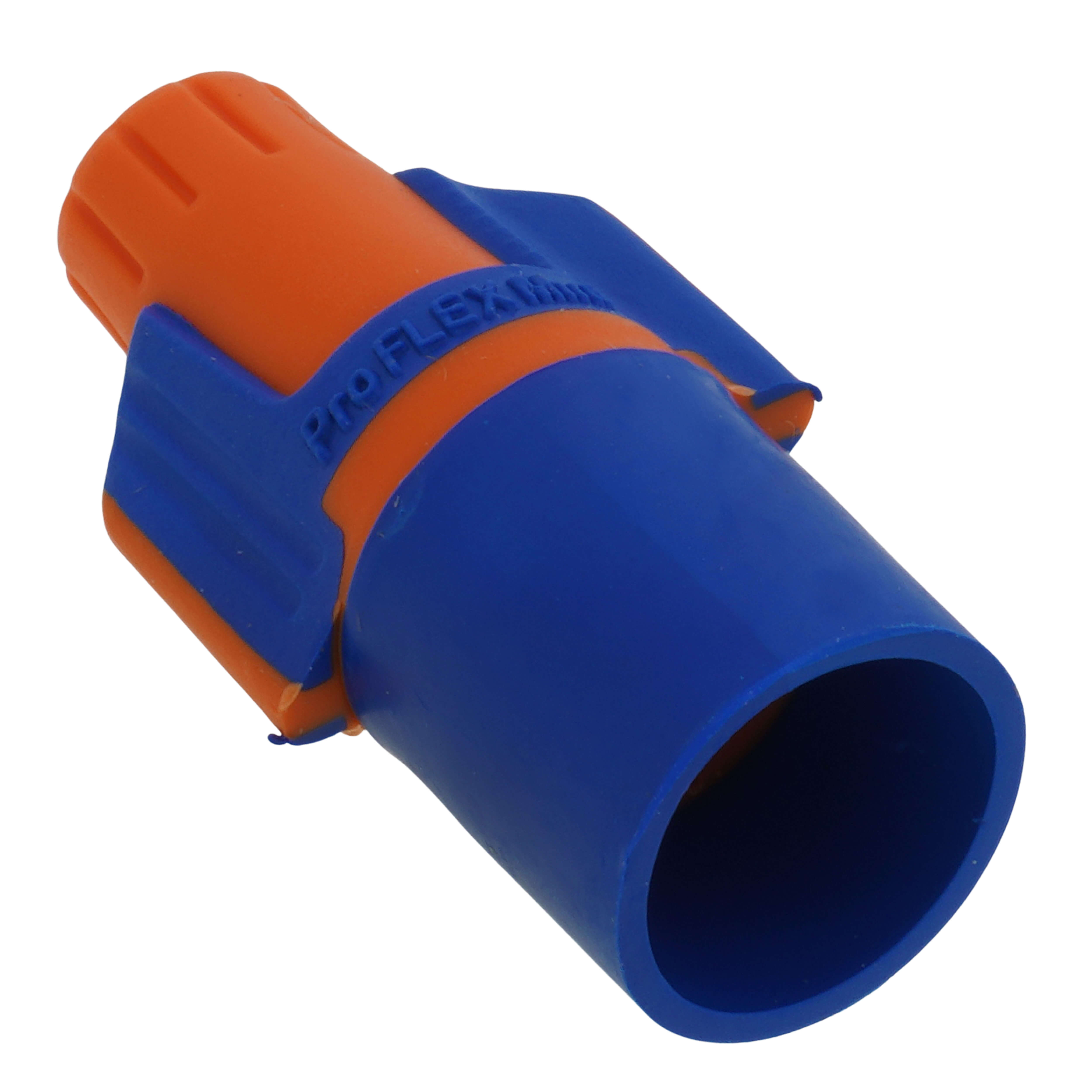

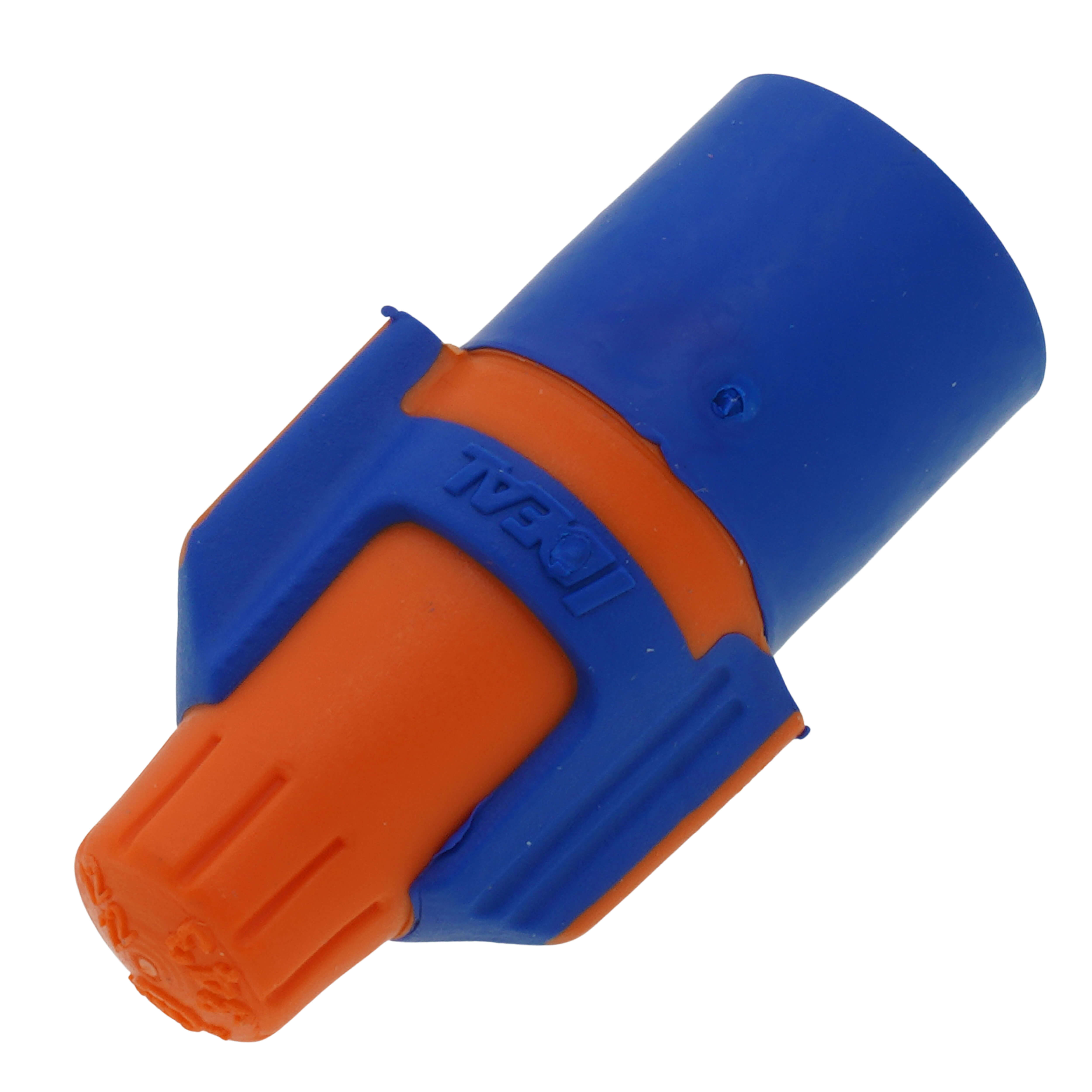

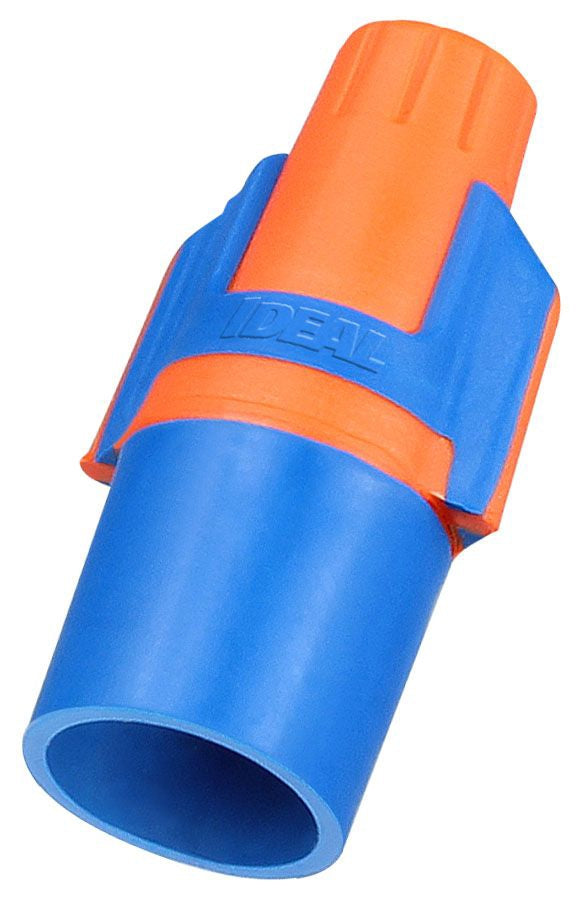

The IDEAL 30-343 Twister ProFLEX Mini combines a comfortable wire connector with a flexible skirt for added protection. Designed to fit in tight spaces, it accommodates a wire range from 2 #22 AWG to 4 #12 solid AWG wire. It is UL and CSA Listed for copper wire 22 to 12 AWG.
- For conductor material copper
- Maximum operating temperature 221 Degrees F
- Wire connector style wing
Product Highlights
The Twister ProFLEX Mini wire connector features a swept wing design and a flexible skirt for secure connections in tight spaces.
Product Information
Standard Information
-
Brand: IDEAL
-
Manufacturer Part Number: 30-343
-
Country of Origin: United States
Technical Specifications
-
Item [Specifications]: Twist On Wire Connector
-
Width [Specifications]: 0.56 in
-
Height [Specifications]: 1.05 in
-
Standards [Specifications]: CSA Certified, UL Listed
-
Max. Temp. [Specifications]: 221 Degrees F
-
Application [Specifications]: Wide Range
-
Maximum Voltage: 600 V
-
For Wire Size [Specifications]: 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG
-
Overall Width [Specifications]: 0.56 in
-
Overall Height [Specifications]: 1.05 in
-
Contact Material [Specifications]: Steel
-
Wire Size Ranges [Specifications]: 22 AWG - 12 AWG
-
Insulation Material [Specifications]: Polypropylene with TPE Overmold
-
Wire Connector Style [Specifications]: Wing
-
Max. Single Wire Size [Specifications]: 12 AWG
-
Max. Wire Combination [Specifications]: (4) 12 AWG Solid
-
Min. Single Wire Size [Specifications]: 22 AWG
-
Min. Wire Combination [Specifications]: (2) 22 AWG
-
UL 94 Flammability Rating [Specifications]: V-2
-
High Temperature Application [Specifications]: No
-
Maximum Operating Temperature [Specifications]: 221 Degrees F
-
Model / MPN: 30-343
-
MPN: 30-343
-

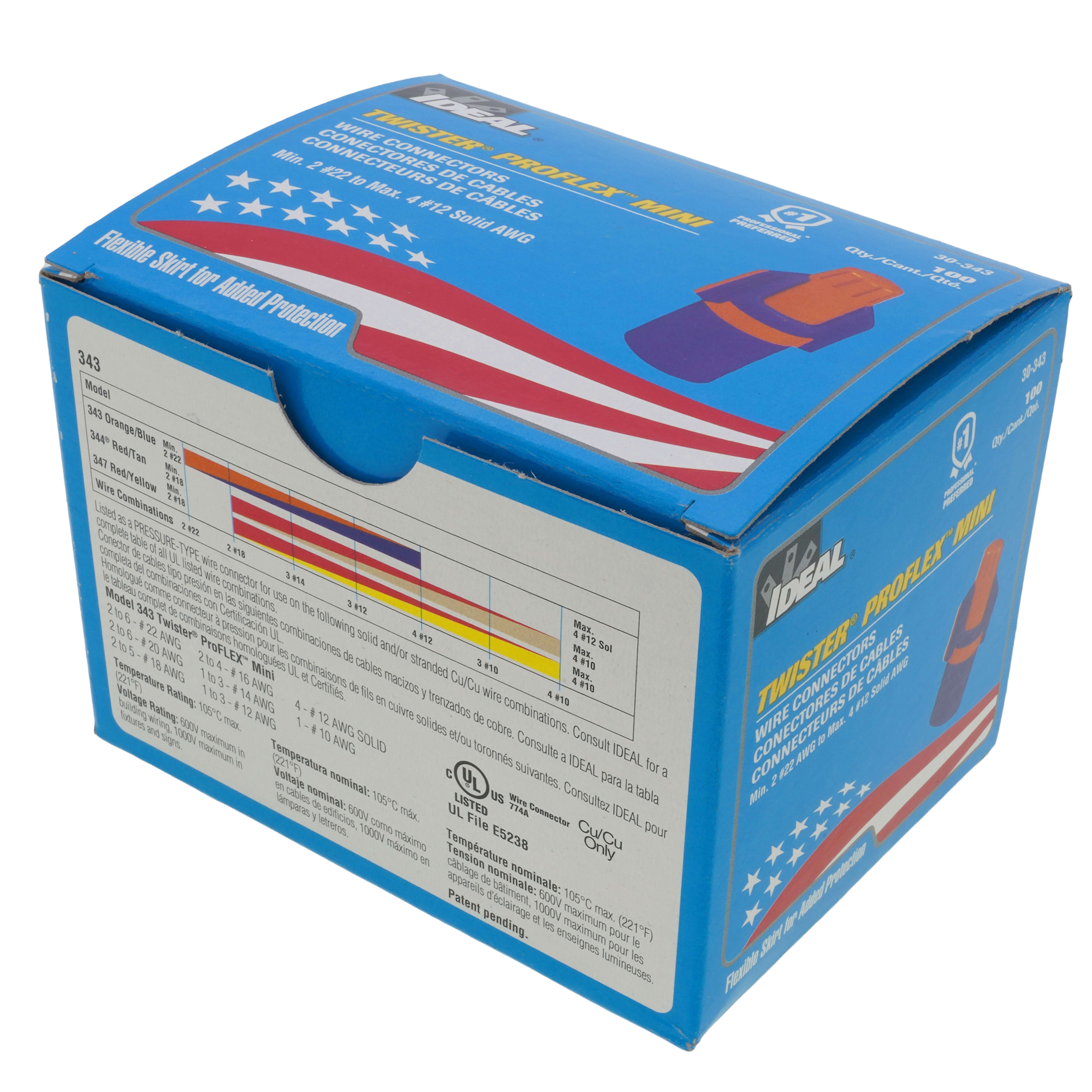

Pkg Quantity: 100.0
-
Type: Wire Connector Twister
-
Connector Style: Twist-On
-
Material: Thermoplastic Polypropylene with Thermoplastic Elastomer
-
UPC: 783250496488
-
Voltage Rating: 600 VAC
