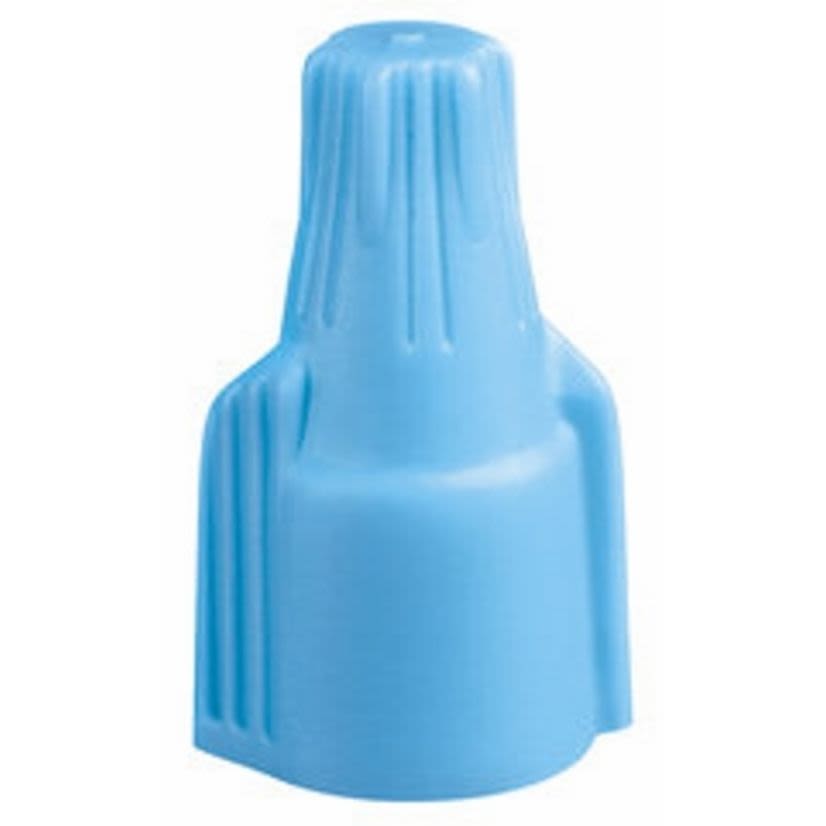

Ideal 30-340 Twister Wire Connector 22 - 10 AWG

Product Description

The IDEAL 30-340 Twister Wire Connectors have an expanding, live-action spring, supporting a wide range of common wiring configurations. The copolymer shell expands for smooth, progressive tightening ensuring dependable connections. The flame-retardant shell withstands rugged environmental extremes, while the deep skirt provides maximum dielectric strength. Can easily be removed for repeat use on the same size or larger wire combinations.

• Exceptional wire-range capacity handles wire combinations from 22 AWG to 6 AWG
• Swept wings offer extra leverage and less effort on large wire combinations
• Live action, square wire spring locks onto wire for safe and secure connections

Product Highlights

The Twister wire connectors are designed to provide more comfort and less fatigue to professional electricians. Features a ribbed cap for secure grip and fast fingertip starts.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-340
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-340
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Twister
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining 1 or more conductors
• Color: Light Blue
• Conductor Range: 22 - 10 AWG, 2/22 AWG Min, 3/12 AWG MAX
• Material: Flame-retardant Polypropelene
• Number of Conductors: 1 to 6
• Standard: CSA C22.2 #188, UL 486C Listed, RoHS
• UPC: 783250303403
• GTIN: 00783250303403
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F)
• Voltage Rating: 600 V
• Wire Type: Cu/Cu
• Shell Style: Swept Wing
• Spring Type: Live-Action
• Shell Material: Thermoplastic
• Wire Comb Min: 2 #22
• Wire Comb Max: 3 #12
• Temperature Rating: 221 deg F
• Finish: Zinc Plated
• Series: 340
• Size of Wire: 22 to 10 AWG
• Type: Flame-Retardant
• Type of Wire: Solid/Stranded Copper
