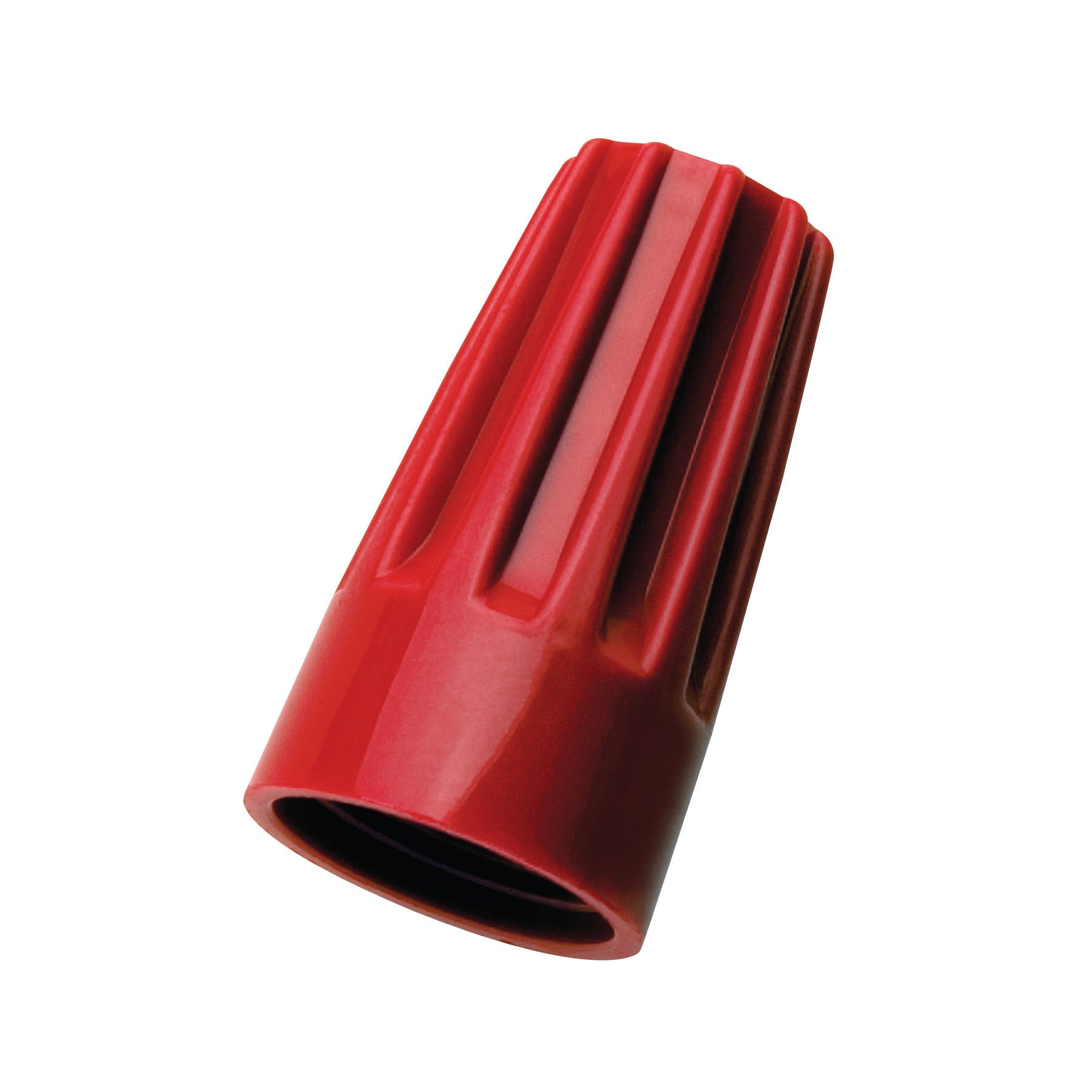

Ideal 30-276 Wire-Nut Wire Connector 1 to 6 Conductors (Pack of 250)

Product Description

The IDEAL 30-276 Wire-Nut Wire Connector set new standards for innovation and quality. As the first screw-on wire connector in America, it set the industry standard. With a fixed, square-wire spring and positive grip shell, it's perfect to twist-on for a secure connection. It features a flame-retardant thermoplastic shell that withstands environmental extremes.

• Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time
• No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation
• Deep Skirt Helps Protect Against Flash-Over

Product Highlights

Reusable for easy circuit changes, the Wire-Nut wire connectors handle jobs from as small as #22 gauge wire up to #6 gauge wire.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-276
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-276
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Wire-Nut®
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining 2 or more conductors
• Color: Red
• Conductor Range: 18 - 6 AWG, Min 2-14 MAX 4-12
• Material: Flame-retardant polypropelene
• Number of Conductors: 1 to 6
• Special Features: Features: Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation; Deep Skirt Helps Protect Against Flash-Over; Reusable For Easy Circuit Changes And Additions; Tough, UL94V-2 Flame-Retardant Shell Rated At 105 Degree C (221 Degree F); UL Listed To 486C And CSA Certified To C22.2 #188; Comply With Federal Specification W-S-610E; Model Number: 76B; Flammability Rating: UL 94V-2
• Standard: CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E
• Item Type: Twist-On
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F)
• Voltage Rating: 600 V
• Series: 76B, 76B®
• Spring Type: Fixed/Square Wire
• Type: Flame-Retardant
• Wire Type: Solid, Stranded
• Wire: 18 to 6 AWG Wire
• Voltage: 600 VAC
• Flammability Rating: UL 94V-2
• Model Number: 76B
• Termination Method: Twist-on
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 6 AWG
• Minimum Wire Gauge: 18 AWG
• Flexible Skirt: No
• Number of Items: 250
• Unit Count: 250 Count
