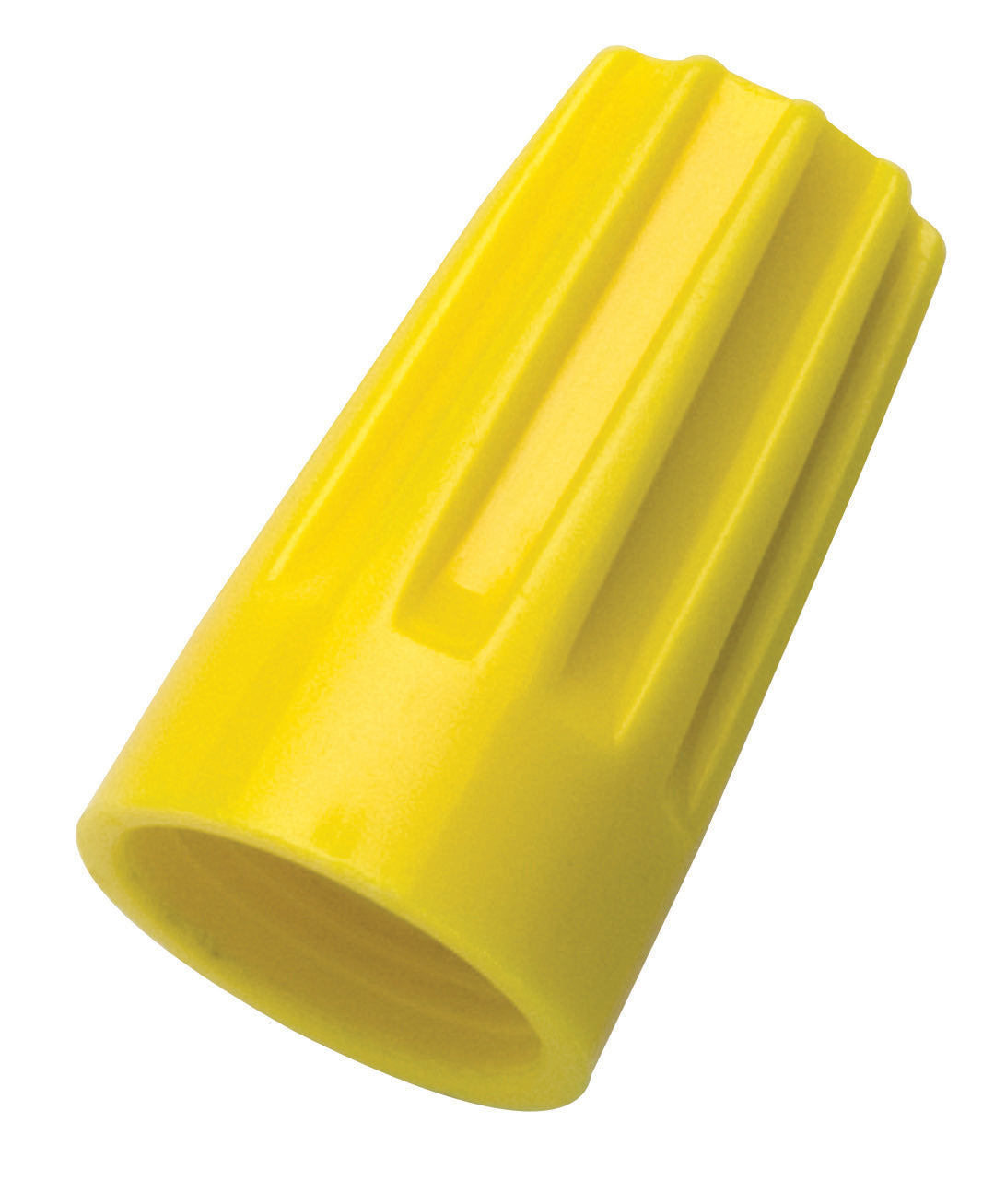

Ideal 30-274 Wire Connector Wire-Nut Twist-On (Bag of 500)

Product Description

The Ideal Wire Connector with MPN 30-274 is designed to provide a secure and reliable connection for various wire types. This connector is suitable for both solid and stranded copper wire within the range of eighteen to twelve American wire gauge (AWG). The Wire-Nut features a flame-retardant shell that ensures durability in tough environmental conditions.

• Wire range: Accepts two to six conductors; 18 to 12 AWG
• Flame-retardant thermoplastic shell rated at 105 degrees Celsius
• UL 94V-2 compliance ensures safety against fire hazards

Product Highlights

Ideal for wire combinations, this connector offers a positive grip design that simplifies installation and guarantees a lasting connection.

Product Information

Standard Information

• Catalog Number: 30-274
• Brand: Ideal

Technical Specifications

• Conductor Range: 18 - 12 AWG, Min two, Max four with one eighteen
• Material: Flame-retardant polypropylene
• Voltage Rating: 600 volts
• Number of Conductors: one to six
• Country of Origin: United States
• Environmental Conditions: Tough, UL 94V-2 rating
• Special Features: Fixed, square-wire spring; reusable; deep skirt protects against flash-over; quick and easy installation
• UPC: 783250302741
