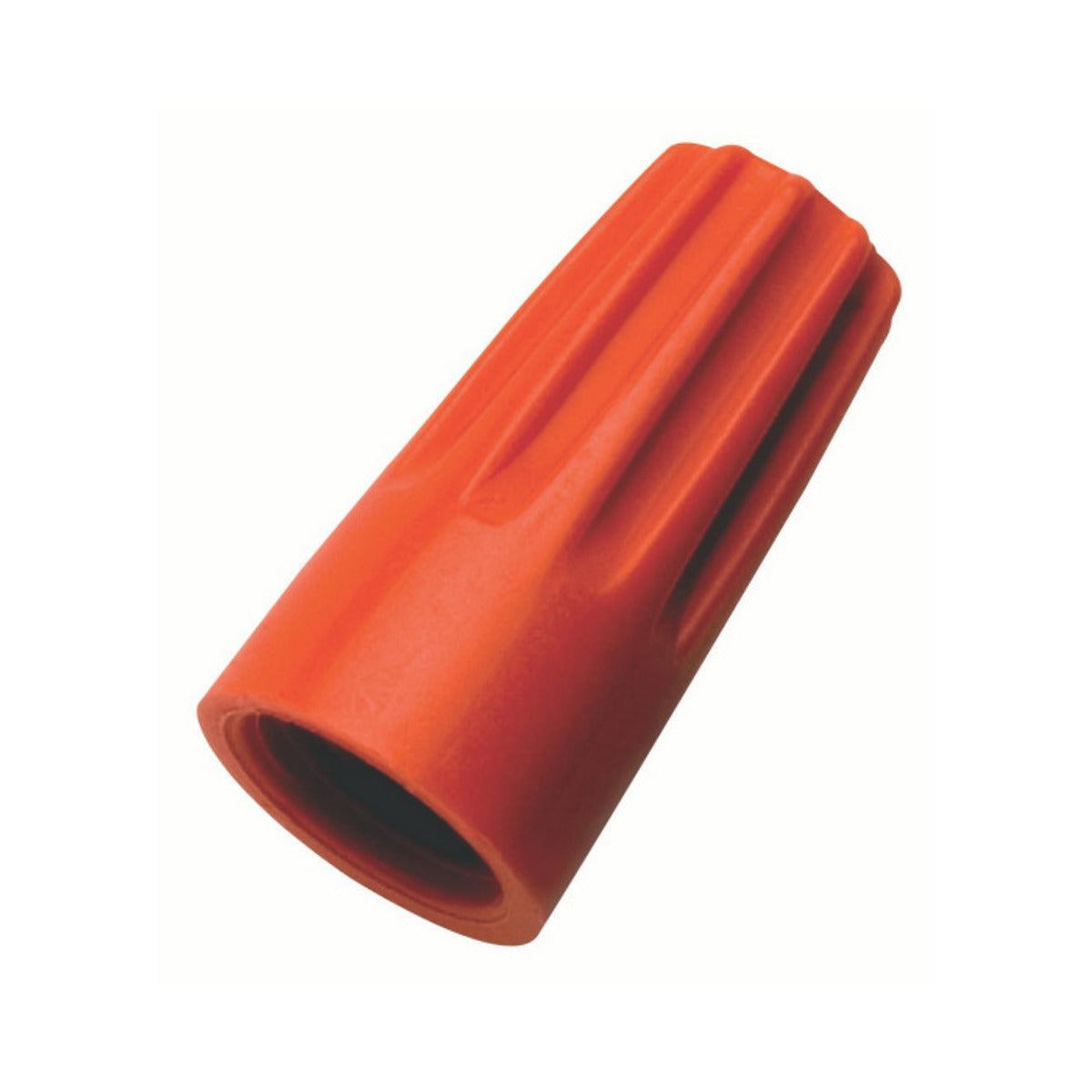

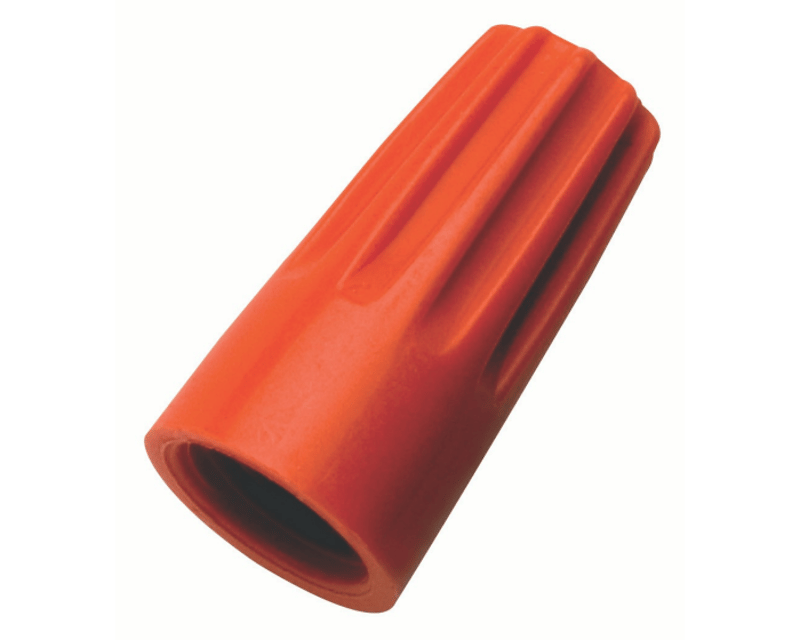

Ideal 30-273 Wire-Nut Wire Connector Twist-On 1 to 5 22 - 14 AWG

Product Description

The Ideal Wire-Nut Connector with MPN 30-273 suits various wiring needs. This product is designed to securely connect one to five conductors with a range from twenty-two to fourteen AWG. Its fixed, square-wire spring technology provides a reliable grip without the need for pre-twisting.

• Accommodates wire sizes from twenty-two to fourteen AWG.
• Flame-retardant thermoplastic material ensures durability.
• Reusable for circuit changes and additions.

Product Highlights

This Wire-Nut offers a deep skirt to protect against flash-overs and is ideal for both solid and stranded wire applications. It is also rated for a maximum voltage of six hundred volts, making it suitable for various electrical installations.

Product Information

Standard Information

• Catalog Number: 30-273
• Manufacturer: Ideal Industries

Technical Specifications

• Material: Flame-retardant polypropylene
• Conductor Range: 22 - 14 AWG, Minimum one 18 with two 20, Maximum two 14
• Voltage Rating: 600 V
• Color: Orange
• Application: Insulating or joining two or more conductors
• Special Features: Fixed square-wire spring, deep skirt for protection, reusable design, UL listed and CSA certified
• Environmental Conditions: Rated at 105°C (221°F)
• Country of Origin: United States
