Product Description

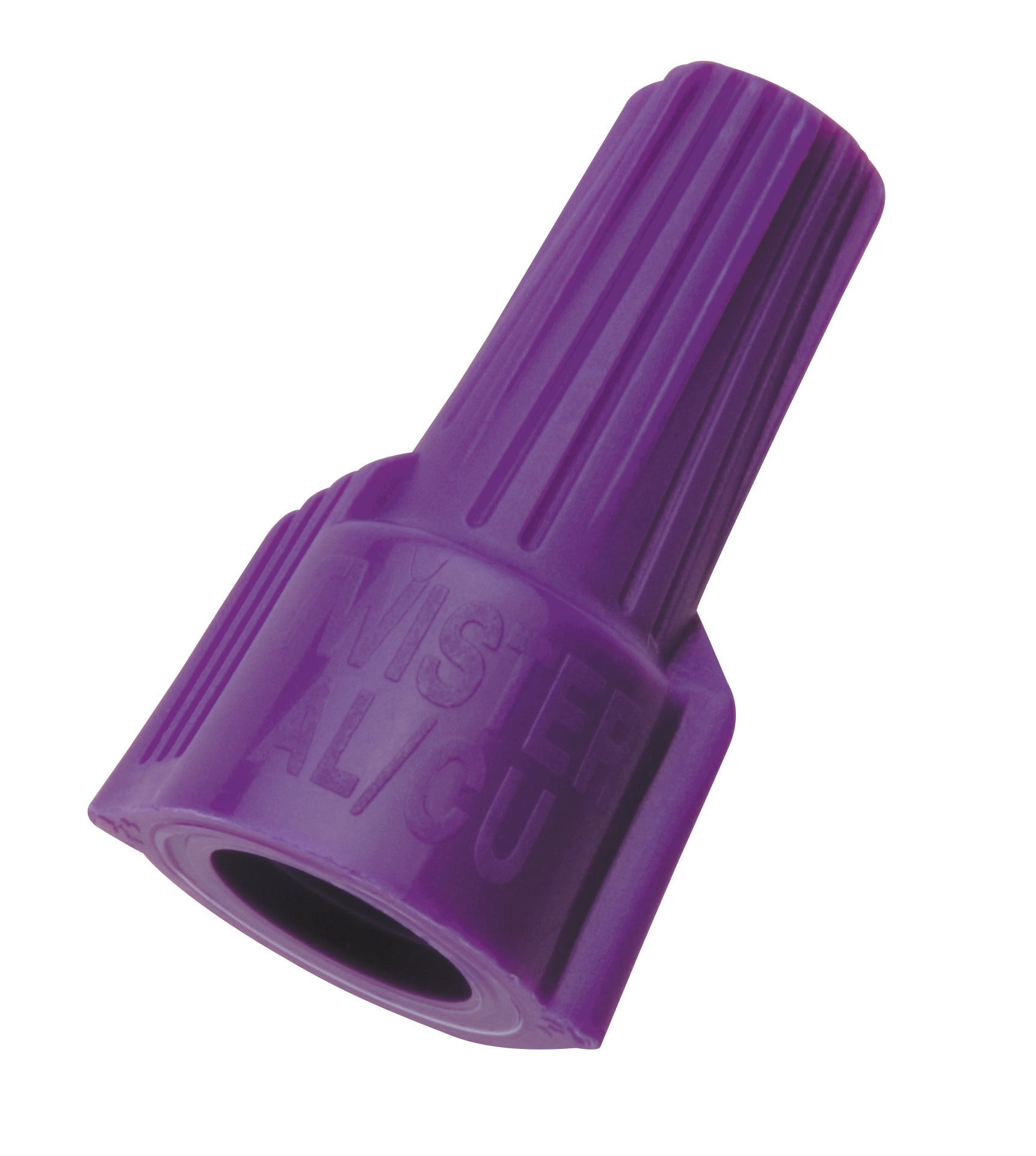

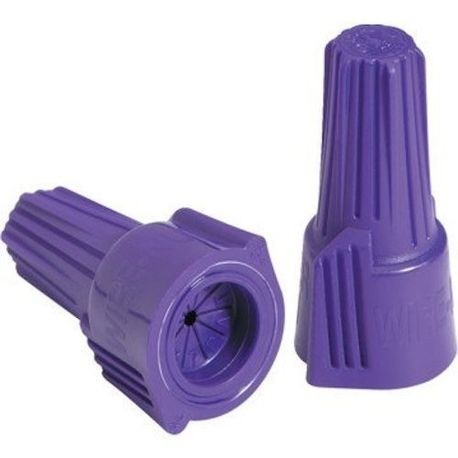

The Ideal 30-265 Twister Al/Cu Wire Connector is a specialized connector designed for both aluminum and copper wire applications. This connector is UL Listed and CSA Certified, ensuring a secure joint while preventing aluminum corrosion. The connector features an anti-oxidant compound that inhibits oxidation of aluminum conductors, which prolongs the life of the connection. Its swept-wing design allows for easy installation, whether by hand or with a standard nut driver. The live-action, square-wire spring adjusts with the aluminum wire to maintain the connection integrity over time.
- Designed for aluminum and copper connections
- Secure connection that prevents aluminum corrosion
- UL Listed, CSA Certified, and NEC compliant
Product Highlights
This connector is effective for various conductor sizes and is suitable for tough environmental conditions.
Product Information
Standard Information
-
Catalog Number: 30-265
-
Manufacturer: Ideal Industries
Technical Specifications
-
Connector Type: Al/Cu Wire Connector
-
Conductor Range: 1/12 AWG Aluminum Solid and 1/18 AWG Copper Min
-
Voltage Rating: 600V
-
Material: Flame-retardant Polypropylene
-
Number of Conductors: 2 to 3 Aluminum to Copper; 1 to 6 Copper to Copper
-
Temperature Rating: 221°F (105°C)
-
Dimensions: 0.65 inches Diameter x 0.8 inches Width x 1.34 inches Height
