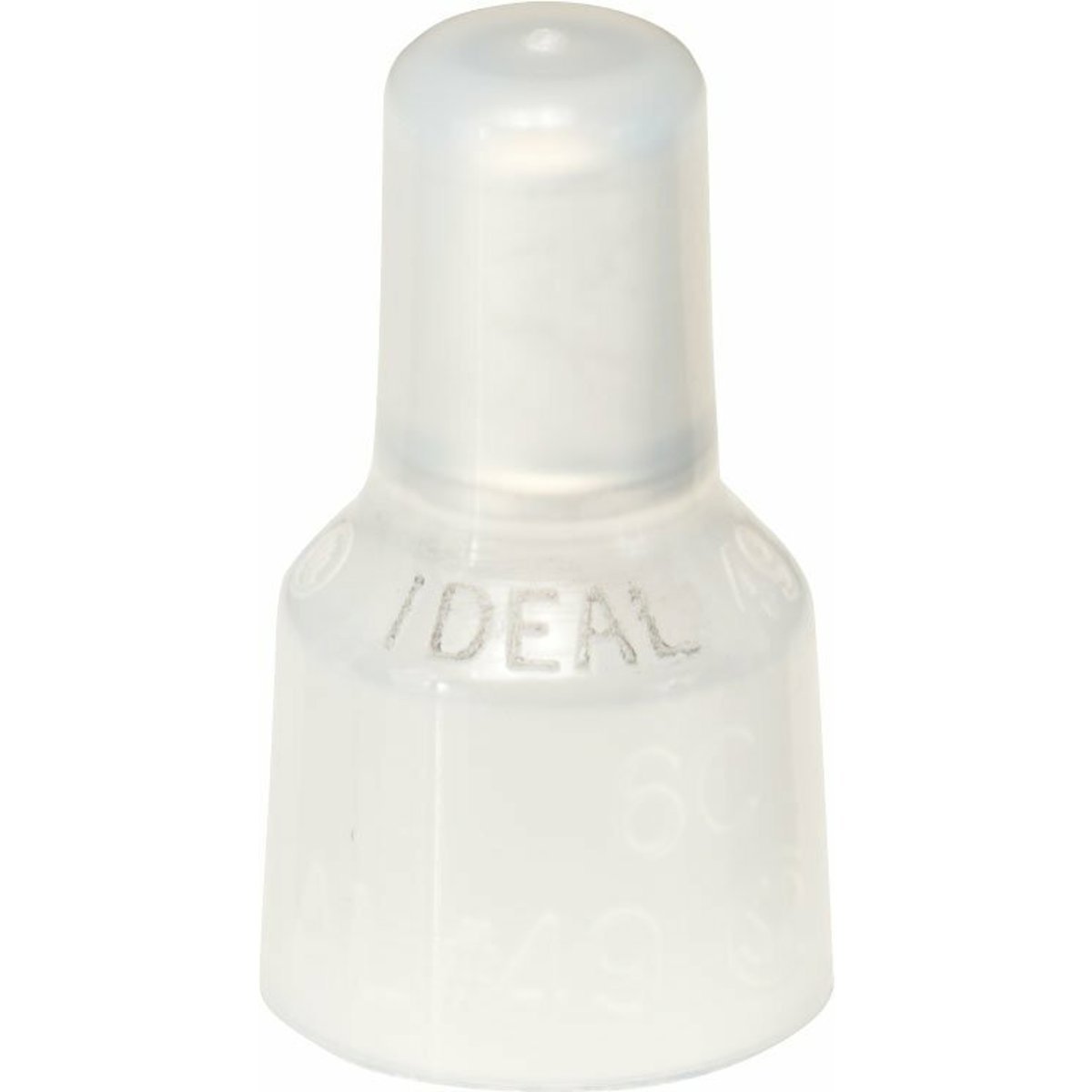

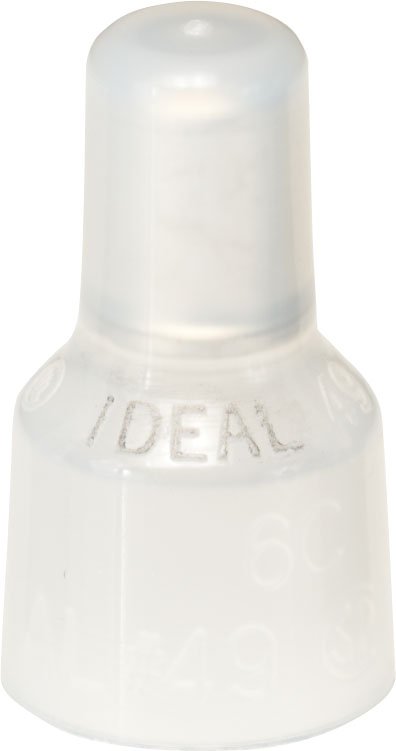

Ideal 30-249 Crimp Connecter Pre-Insulated Medium

Product Description

IDEAL 30-249 crimp connectors are designed for making fast, permanent, pressure-type connections. These pre-insulated crimp connectors have a compact design that fits easily into tight locations. Suitable for high vibration environments or installations at an OEM. They accommodate a conductor range of 1 - 22 W/ 1 - 18 Min, and 1 -12 / 1 -16 Max AWG, with a voltage rating of 600 V.

• Pre-Insulated
• Crimp Connector
• Voltage Rating: 600 V

Product Highlights

The IDEAL crimp connectors are pre-insulated and compact, ensuring secure connections in various applications. Ideal for electrical connections requiring durability and space efficiency.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-249
• Country of Origin: China

Technical Specifications

• Catalog Number: 30-249
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: China
• Made in USA: No
• UPC: 783250213795
• GTIN: 00783250213795
• IGCC: 4668
• Size: Medium
• Type: Pre-Insulated
• Standard: CSA certified to C22.2 NO.188; UL Listed to 486C
• Voltage Rating: 600 VAC
• Conductor Range: 1 - 22 W/ 1 - 18 Min; 1 -12 / 1 -16 Max AWG
• Special Features: Features: Minimum 4 NO.16; Maximum 1 NO.12 With 4 NO.14; Rated for 600 V maximum
• Size of Wire: 22 to 12 AWG
• Temperature Rating: 221 deg F
• Type of Wire: Solid/Stranded
• Material: Copper
• Finish: Tin Plated
