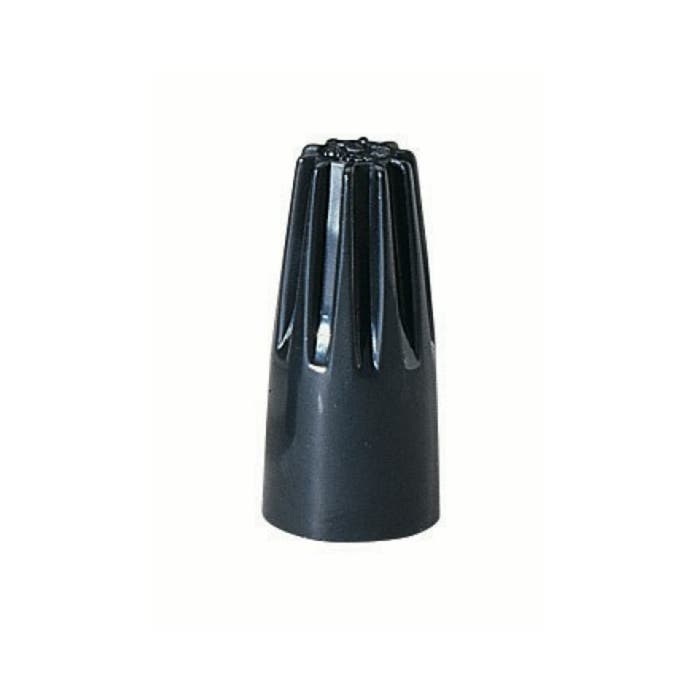

Ideal 30-159 #22 to #12 AWG Model 59B High-Temp Wire-Nut Wire Connectors (Box of 1,000)

Product Description

The IDEAL 30-159 #22 to #12 AWG Model 59B High-Temp Wire-Nut Wire Connectors have fixed, square-wire springs and positive grip shells. These connectors are perfect to twist-on with fingers for a secure connection. Designed for high-heat applications up to 302°F (150°C) and rated to 600V. Accepts 22 to 12 AWG copper conductors.

• Fixed, square-wire spring for grip that will last
• Refined range to handle all common applications
• Positive grip shell that is perfect to twist-on with fingers

Product Highlights

High-temp wire connectors designed to withstand extreme heat. Approved for bonding and grounding applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-159
• Country of Origin: United States

Technical Specifications

• Termination Method: Twist-on
• Maximum Temperature: 302°F (150°C)
• Maximum Rated Voltage: 600 V
• Wire Type: Solid, Stranded
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 22 AWG
• Flexible Skirt: No
• Series: 59B
• Shell Style: Positive Grip
• Temperature Rating: 150 deg C
• Wire Size: 22 to 12 AWG
• Maximum Stability Range: 120°F (48.90°C)
• Minimum Stability Range: 40°F (4.40°C)
• Warranty: Limited 1 Year
