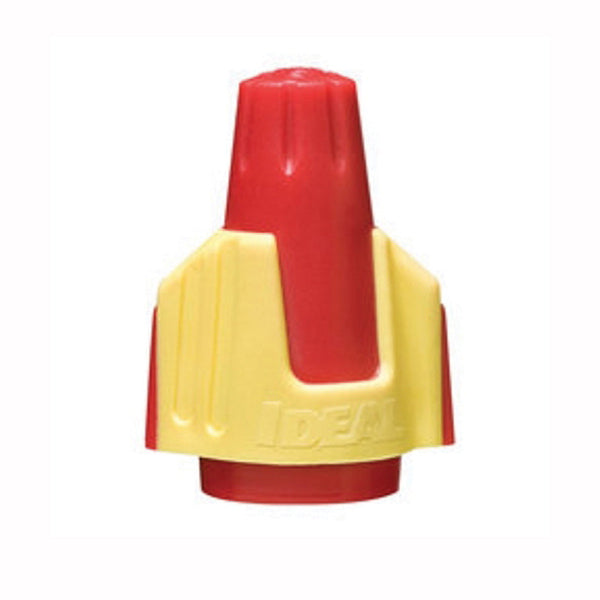

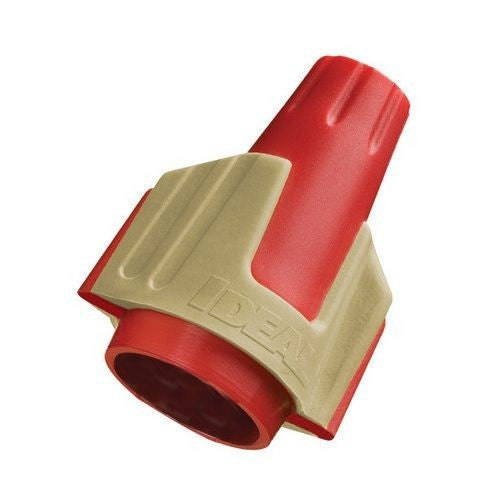

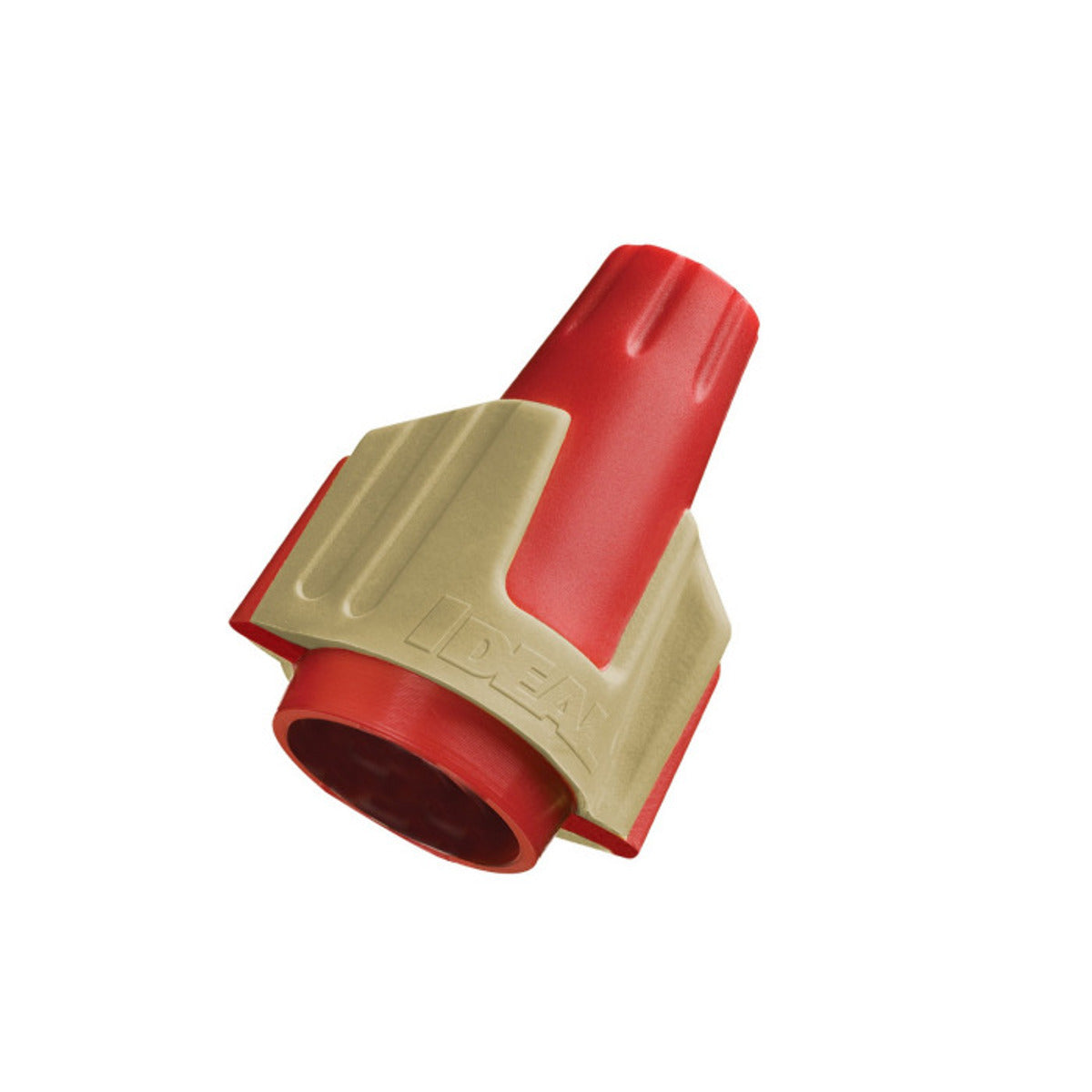

Ideal 30-144 Twister PRO Wire Connector 600 V (50/Box)

Product Description

The IDEAL 30-144 Twister PRO Wire Connector is designed for insulating or joining one or more conductors. It features swept wings and an expanding, live-action spring, supporting a wide range of wiring configurations. The copolymer shell expands for smooth, progressive tightening, ensuring dependable connections. The connector has a hexagonal top with a ribbed cap for fast fingertip starts and nut driver installation.

• The Widest Red/Tan Wire Range In The Industry
• Min. 2 #18 To Max. 4 #10
• Suregrip Overmolding Provides Better Grip For Improved Leverage And More Torque

Product Highlights

This wire connector offers a wide range, secure connections, and a comfortable grip for professional electricians. UL Listed to 486C and CSA Certified to C22.2 #188.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-144
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-144
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Twister® PRO
• Country of Origin: United States
• Made in USA: Yes
• Application: For Insulating or Joining One or More Conductors
• Material: Flame-retardant Polypropelene
• Number of Conductors: 2 to 4
• Standard: CSA C22.2 #188, UL 486C Listed, RoHS
• UPC: 783250707812
• GTIN: 00783250707812
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F)
• Voltage Rating: 600 V
• Conductor Range: 22 - 8 AWG, 2/18 AWG Min, 4/10 AWG MAX
• Wire Type: Cu/Cu
• Insulation Material: Polypropylene
• Minimum Single Wire Size: 22 AWG
• Maximum Single Wire Size: 8 AWG
• Maximum Conductors: 4
• Contact Finish: Zinc
• Contact Material: Steel
• UL 94 Flammability Rating: V-2
• Series: 344
• Shell Style: Swept Wing
• Spring Type: Square Wire
• Temperature Rating: 105 deg C
• Type: Flame-Retardant
• Wire Size: 22 to 8 AWG
• AWG: 8-22 AWG
• Package Quantity: 50 Per Box
• Product Type: Wire Connectors
• Termination Type: Twist-On
