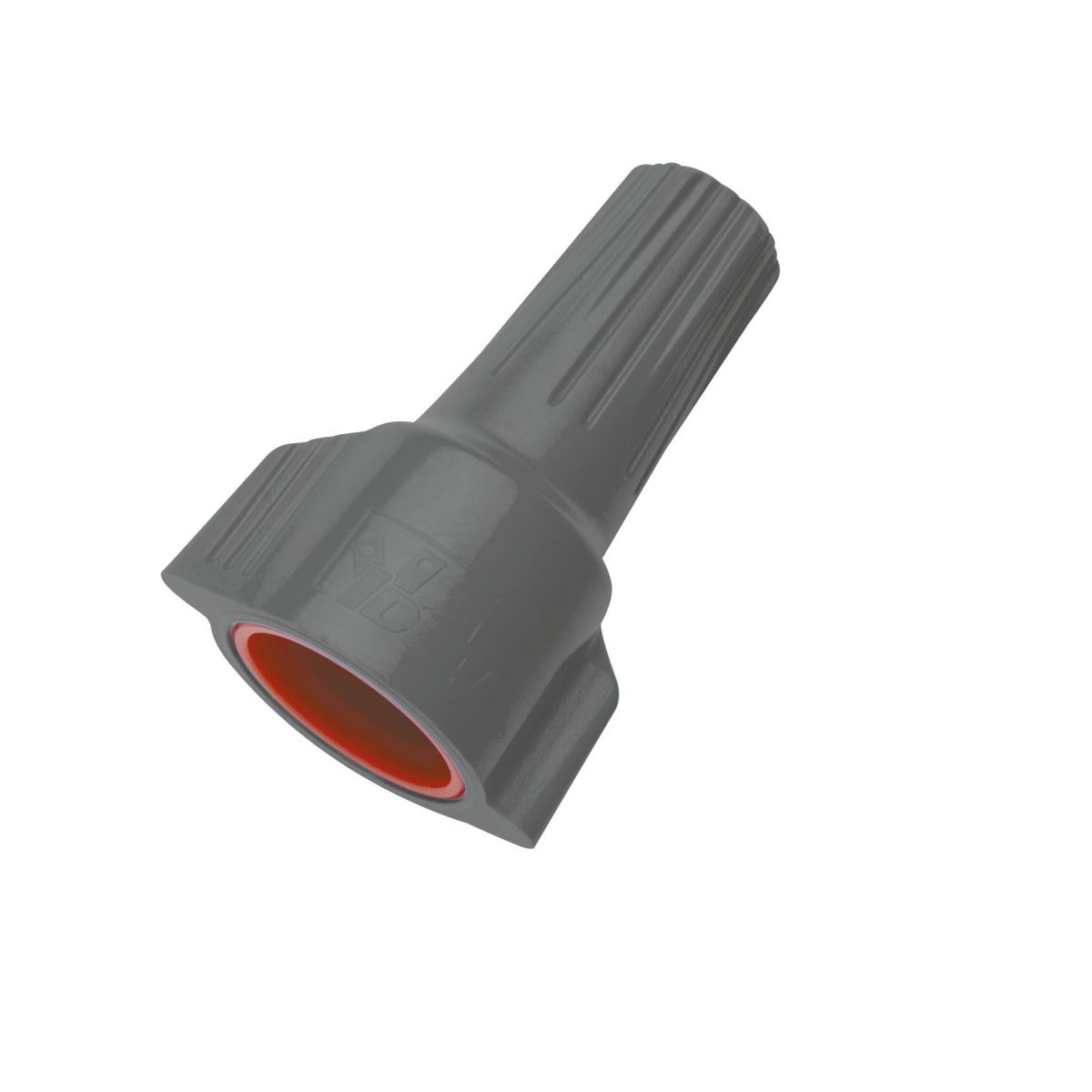

Ideal 30-1362 Model 62 Gray-Red 1000 Box

Product Description

The IDEAL 30-1362 Model 62 WeatherProof wire connectors are designed for connections requiring protection from the elements. The silicone-based sealant protects against moisture and corrosion, eliminating the need for heat-shrink or excessive taping. These twist-on wire connectors are UL Listed to 486G for use in damp/wet locations or above-grade applications. The flame-retardant shell is rated at 105C (221F).

• 100% Silicone-based sealant protects against moisture and corrosion
• UL Listed to 486G Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications
• Easy to apply, pre-filled twist-on wire connectors

Product Highlights

WeatherProof Wire Connectors are perfect for interior or exterior connections exposed to damp, wet or corrosive environments.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-1362
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-1362
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: WeatherProof®
• Country of Origin: United States
• Made in USA: Yes
• Application: Damp and Wet Location
• Special Features: Hexagonal shape allows connectors to be applied with standard nutdriver. Silicone-based sealant protects against moisture and corrosion. Easy to apply pre-filled twist-on wire connectors
• Standard: UL Listed to 486D for use with damp/wet locations
• Item Type: Model 62® Connector
• Temperature Rating: 105 ° C
• Type: Twist-On
• Voltage Rating: 600 VAC
• Wire Size: 18 to 8 AWG
• Minimum Wire Combination Size: (3) #18
• Maximum Wire Combination Size: (2) #10
• Shell Material: Thermoplastic
• Approval: UL (Canada and US), UL 486C/486G94V 2, CSA, CE
• RoHS Compliant: True
• Strip Length: 5/8 Inch
• Material: Thermoplastic Polyester (Housing), Steel (Insert), Zinc (Plating)
• Sealant: 100 Percent Silicone
• Constructional Feature: Weatherproof
• Applicable Standard: IEC 998-2-4
• Use With: Copper Conductor
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 8 AWG
• Minimum Wire Gauge: 18 AWG
• Wire Type: Solid, Stranded
• Flexible Skirt: No
• Series: 62® Series
• Shell Style: Winged
• Spring Type: Live Action/Square Wire
