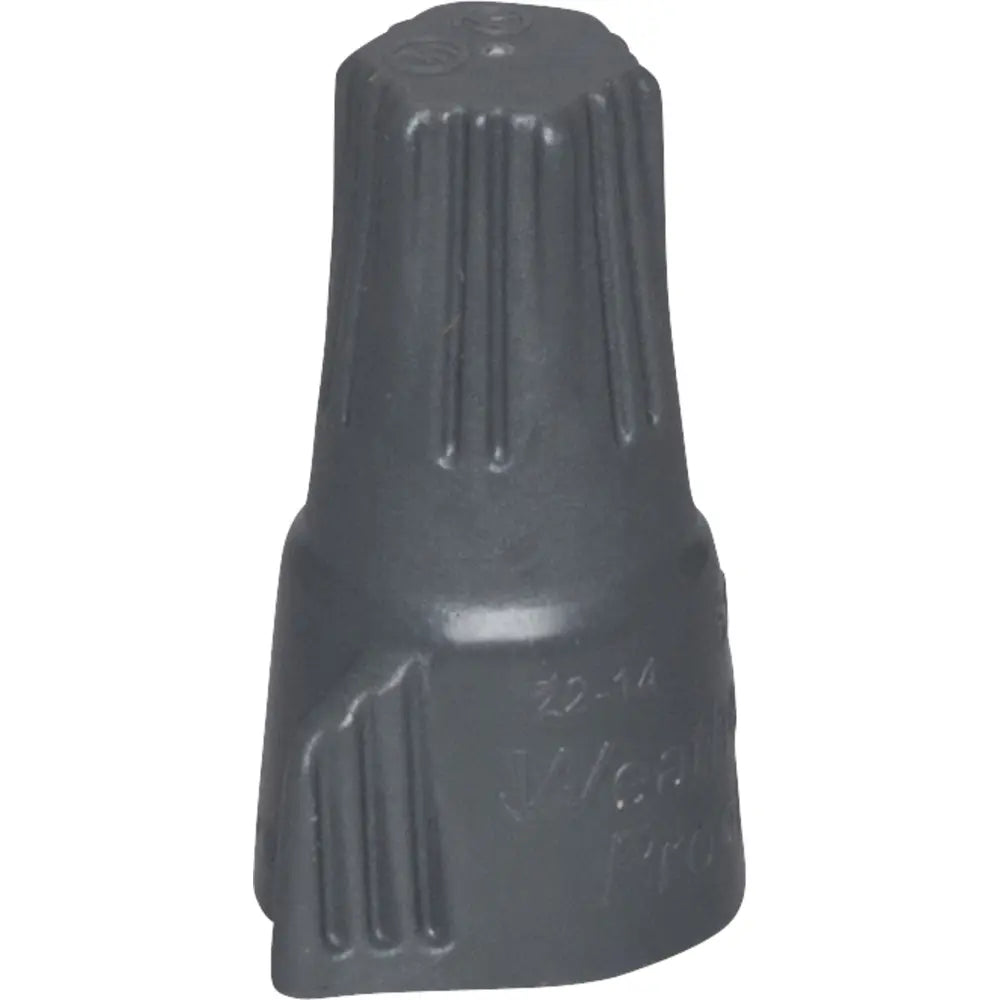

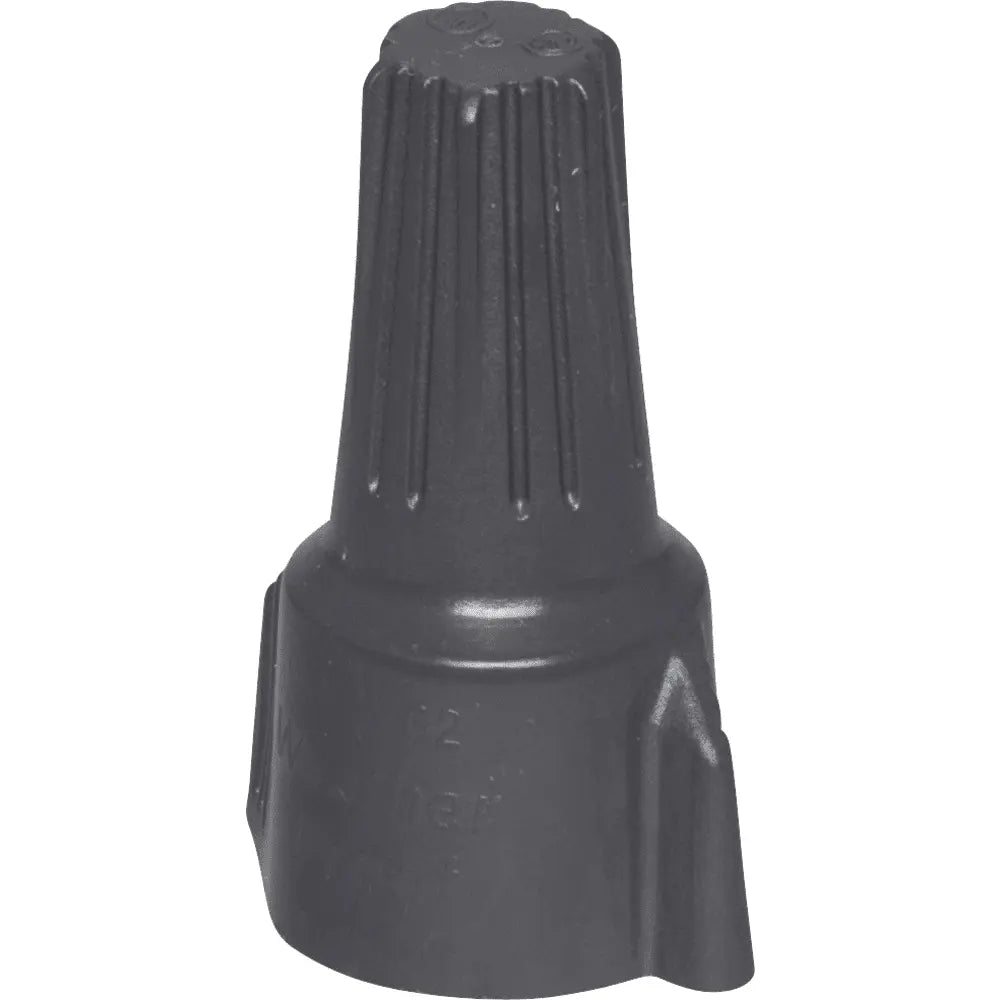

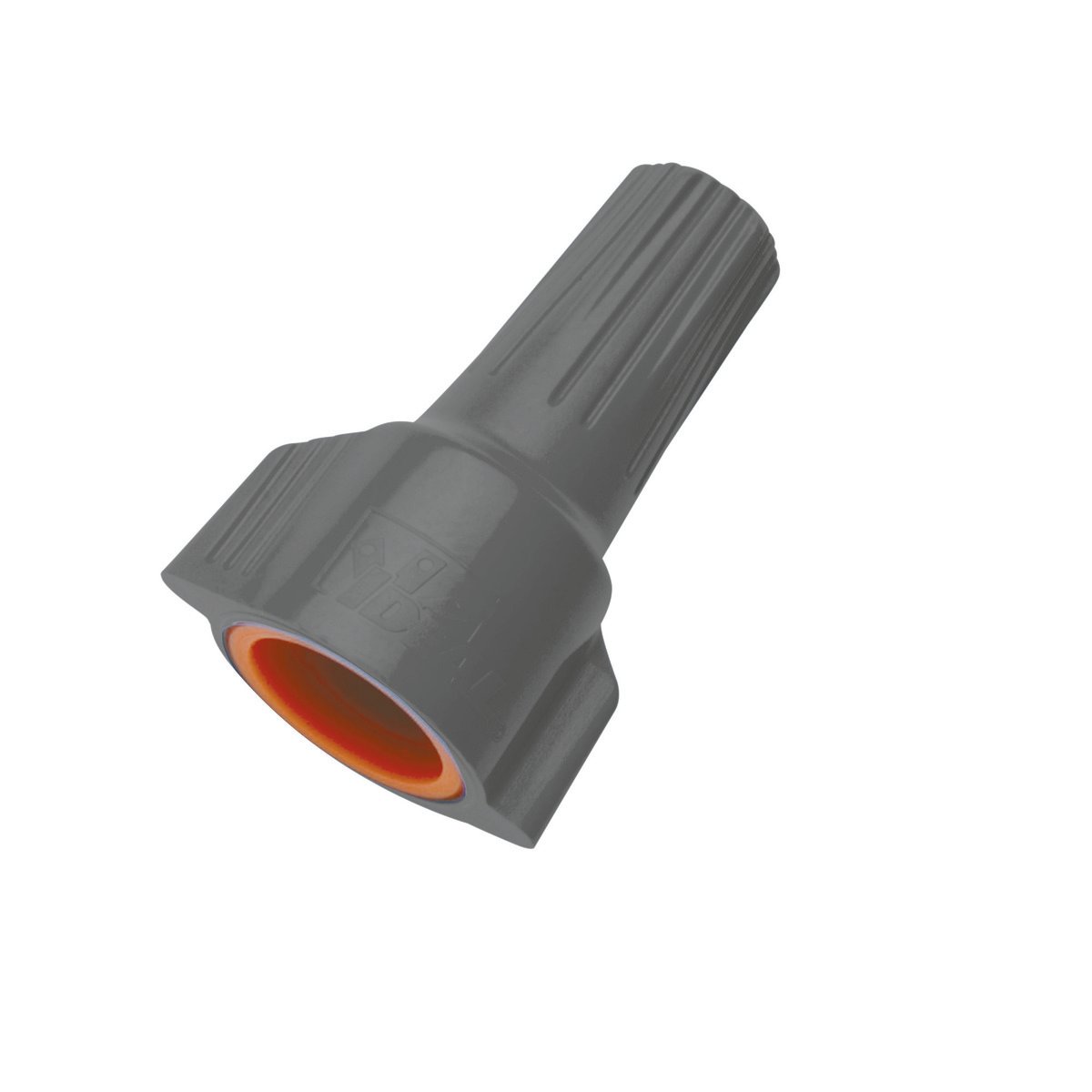

Ideal 30-1161 Weatherproof Wire Connector 22 to 14 AWG

Product Description

The IDEAL 30-1161 Weatherproof Wire Connectors are designed for interior or exterior connections exposed to damp, wet, or corrosive environments. These twist-on connectors offer protection from the elements with a swept-wing design for comfortable application. A pre-filled, silicone-based sealant protects against moisture and corrosion.

• Suitable for above-grade, interior, or exterior connections
• Pre-filled with silicone-based sealant for moisture and corrosion protection
• Twist-on connection for copper wire

Product Highlights

Weatherproof wire connectors provide a twist-on solution for connections needing protection from the elements, eliminating the need for heat-shrink or excessive taping.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-1161
• Country of Origin: US

Technical Specifications

• Type: Wire Nuts
• Length: 0.91 Inches
• Diameter: 0.45 Inches
• Material: Thermoplastic
• Standard: UL Listed to 486D for use with direct burial
• Insulated: Yes
• Wire Type: Solid, Stranded
• Connection: Twist-On
• Voltage Rating: 600 VAC
• Conductor Range: 22 to 14 AWG
• Country of Origin: US
• Temperature Rating: 105 °C
• Environmental Conditions: Wet/Dry Location
• Sub Brand: WeatherProof®
• Application: Handles wire sizes from #22 to #14 AWG copper. Minimum of 2 #20 AWG. Maximum of 2 #14 AWG.
• Special Features: Silicone-based sealant protects against moisture and corrusion
• Item Type: Model 61® Wire Connector
• Termination Method: Twist-on
• Maximum Temperature: 221°F (105°C)
• Wire Gauge: 22 to 14 AWG
• Wire Size: 22 to 14 AWG
• Approval: UL 486D, CSA, CE
• Conductor Size: 22-14 AWG
• Voltage: 600 Volt
