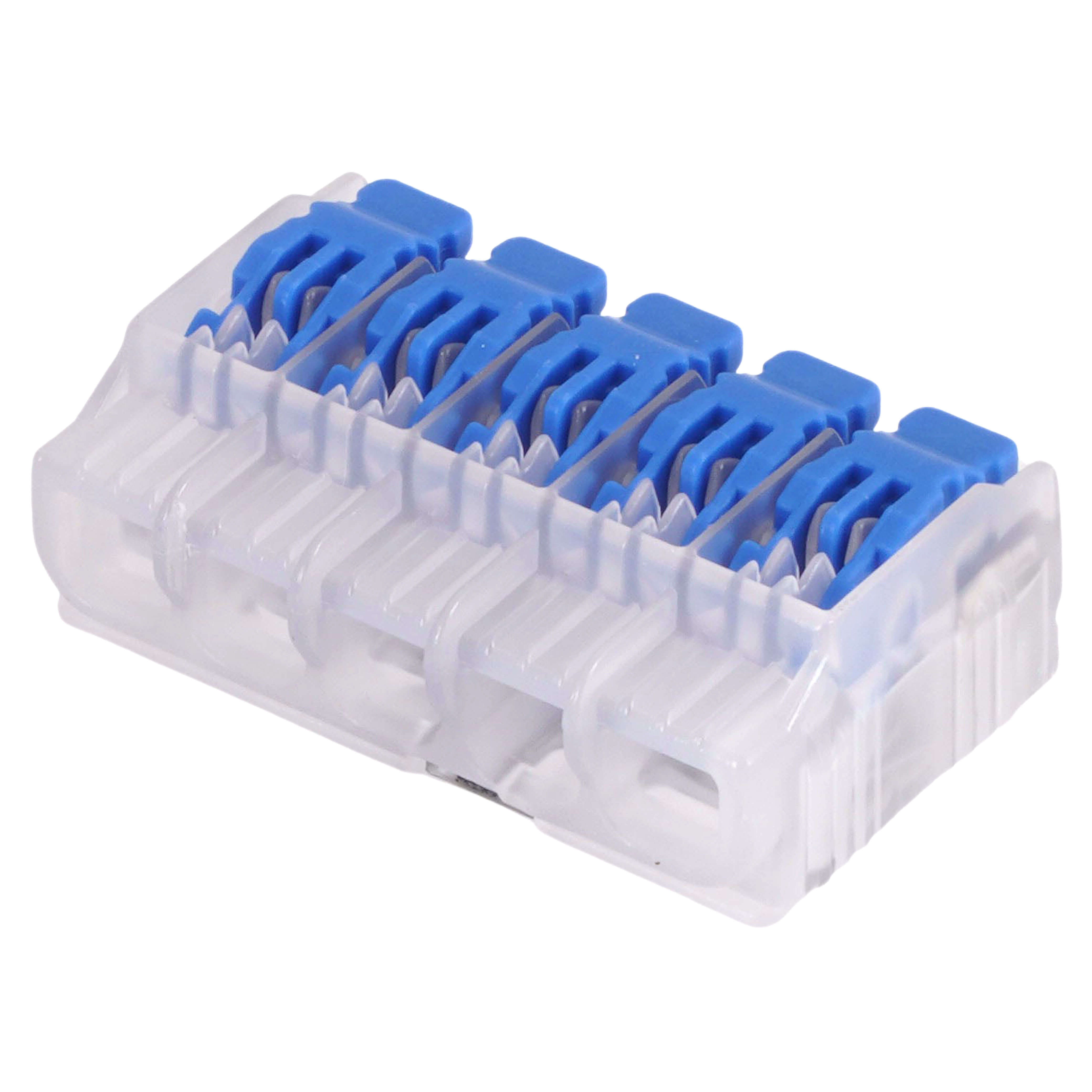

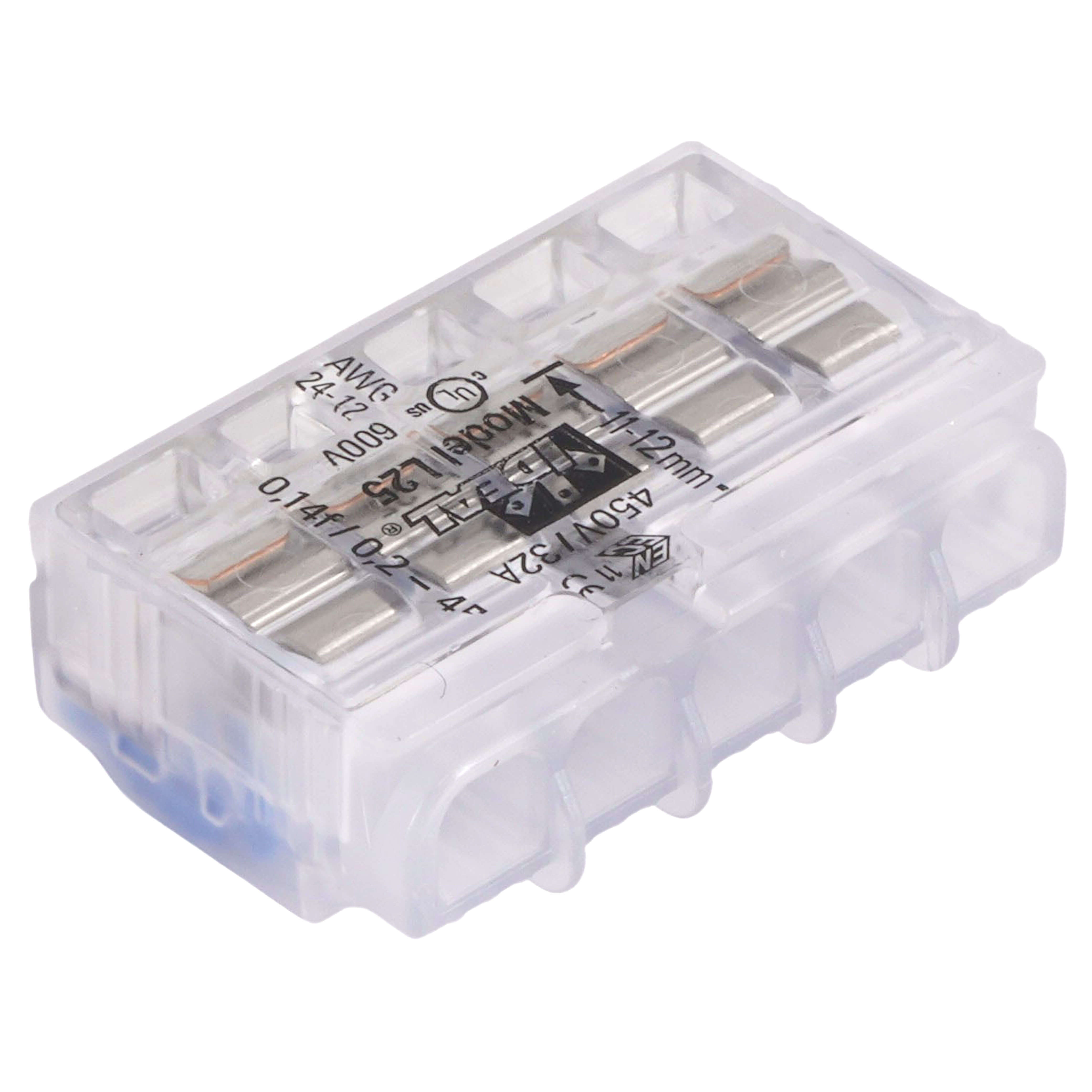

Ideal 30-10L25 In-Sure Lever Wire Connector 5 Port (75/Box)

Product Description

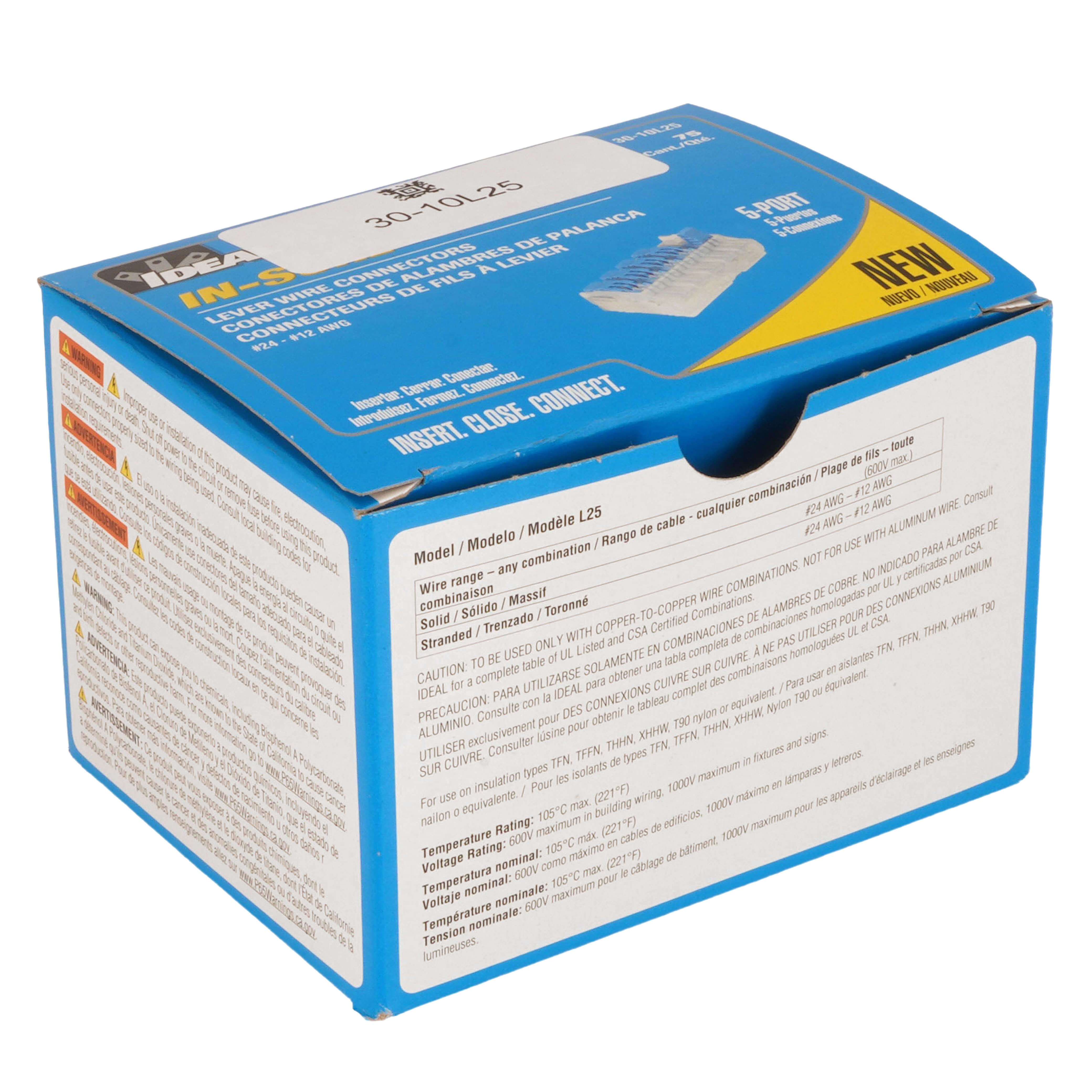

The IDEAL 30-10L25 In-Sure Lever Wire Connector offers a solution for joining solid and stranded wires. These connectors have a compact design, ideal for junction boxes and enclosures. The lever design allows for connecting copper wires in any combination from 24 AWG to 12 AWG. Box of 75 five port connectors.

• Releasable connector for solid & stranded wires.

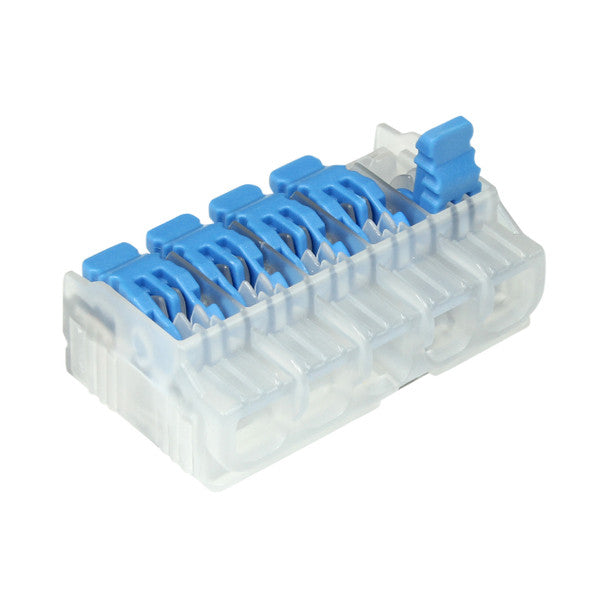

• Two-stage lock for a secure connection.
• Compact design for tight spaces.

Product Highlights

These 5-port lever wire connectors provide a solution for joining solid and stranded wires, offering a compact design for electrical connections.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-10L25
• Country of Origin: Austria

Technical Specifications

• MPN: 30-10L25
• Brand: IDEAL
• Number of Ports: 5
• Wire Range: 24 - 12 AWG
• Termination Method: Push-On
• For use with: Cu/Cu combinations only
• Current: 20 A
• Standards: CE, cUL, IEC/EN, RoHS, UL
• Overall Width: 0.77 in
• Overall Height: 0.41 in
• Overall Length: 1.23 in
• RoHS Compliant: Yes
• Maximum Voltage: 600 V
• Contact Material: Copper
• Housing Material: Polycarbonate
• Maximum Operating Temperature: 221 Degrees F
• Wire Size Range: 24 AWG - 12 AWG
• Conductor Material: Copper
• UL 94 Flammability Rating: V-2
• Strip Length: 7/16 in
• Voltage: 600 V
