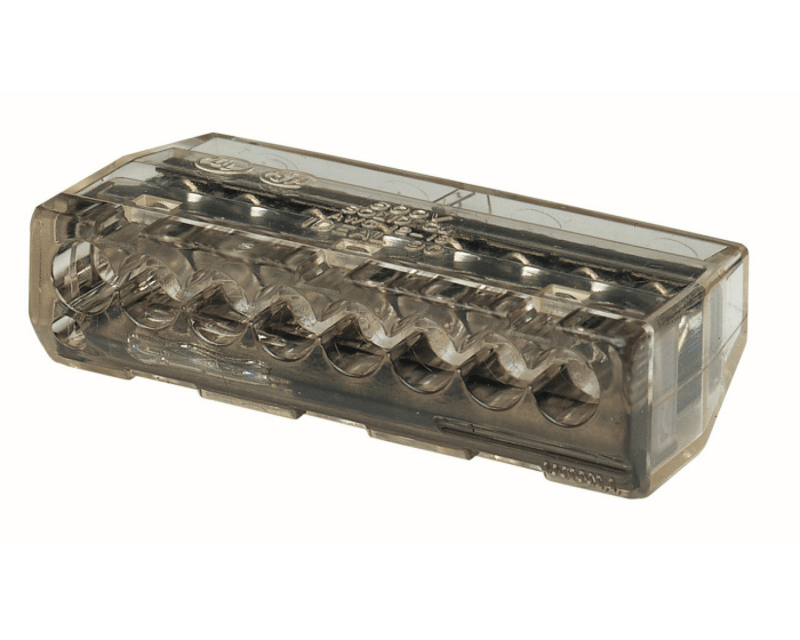

IDEAL 30-1090J Push-In Wire Connector, 12 AWG, 100/Jar

Product Description

The IDEAL 30-1090J is an 8-port push-in wire connector designed for easy installation in various electrical applications. This wire connector is compatible with wire sizes ranging from #12 AWG to #20 AWG. Users can insert wires quickly and securely, making it suitable for residential and light commercial projects.

• Rated for a maximum voltage of 600 volts.
• Compact design ensures fit in tight spaces.
• Clear housing allows for visual inspection of connections.

Product Highlights

The In-Sure Push-In Wire Connector streamlines the wiring process by reducing installation time and improving accuracy.

Product Information

Standard Information

• Brand: IDEAL
• Part Number: 30-1090J

Technical Specifications

• Size: 0.355 inches Length X 1.380 inches Width X 0.717 inches Height
• Connection: 8 Ports
• Wire Size: #12 AWG - #20 AWG Solid; #14 AWG - #16 AWG (19 Strand or Less); #18 AWG (7 Strand or Less) Stranded
• Color: Black
• Voltage Rating: 600 V (Max Building Wire), 1000 V (Max Signs and Lighting)
• Temperature Rating: 105 DEG C
• Wire Type: Solid, Stranded, Stranded (Tin Bonded)
• Sub Brand: In-Sure
