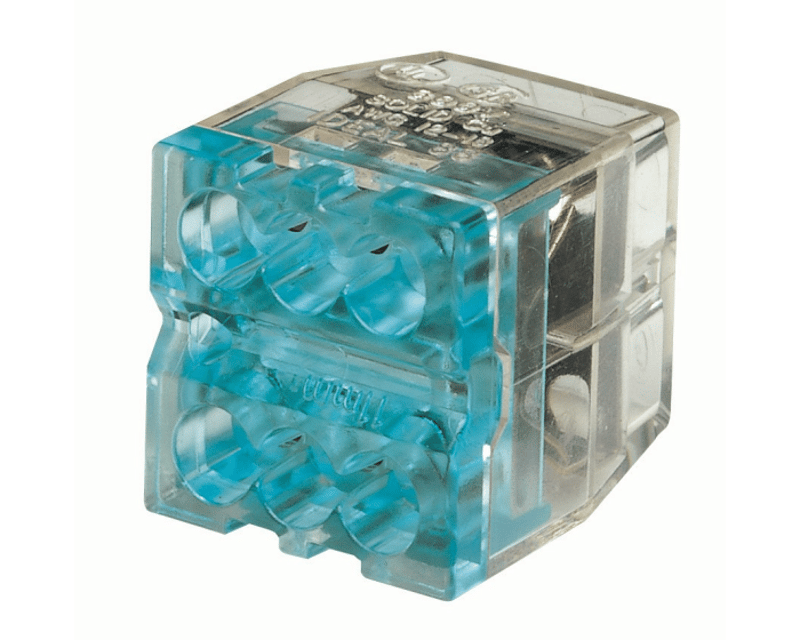

IDEAL 30-1088J 6 Port Push-In Wire Connector Stacked, 200/Jar

Product Description

The IDEAL 30-1088J is a six-port push-in wire connector designed for reliable electrical connections in residential and light commercial applications. This connector is easy to use with a low insertion force, making wire installation quick and efficient. The clear housing allows for visual verification of connections, enhancing safety and functionality in projects.

• Connection Type: Six stacked ports for efficient wiring
• Wire Size Capacity: #12 AWG to #20 AWG (Solid and Stranded)
• Voltage Rating: Rated for 600V maximum

Product Highlights

This connector features a flame-retardant shell rated up to 105 degrees Celsius. Its ergonomic design provides a comfortable grip, facilitating easier installations. Ideal for retrofitting lighting systems or for use in pre-fabricated wiring setups.

Product Information

Standard Information

• Brand: IDEAL
• Model: 30-1088J

Technical Specifications

• Size: 0.607 inches Length x 0.603 inches Width x 0.729 inches Height
• Wire Type: Solid, Stranded
• Color: Blue
• Temperature Rating: 105 degrees Celsius Shell Rated
• Standard Compliance: UL Listed, CSA Certified
• Box Quantity: 200 per jar
• Weight: 2.36 lbs
• Application: Suitable for grounding and bonding
