Product Description

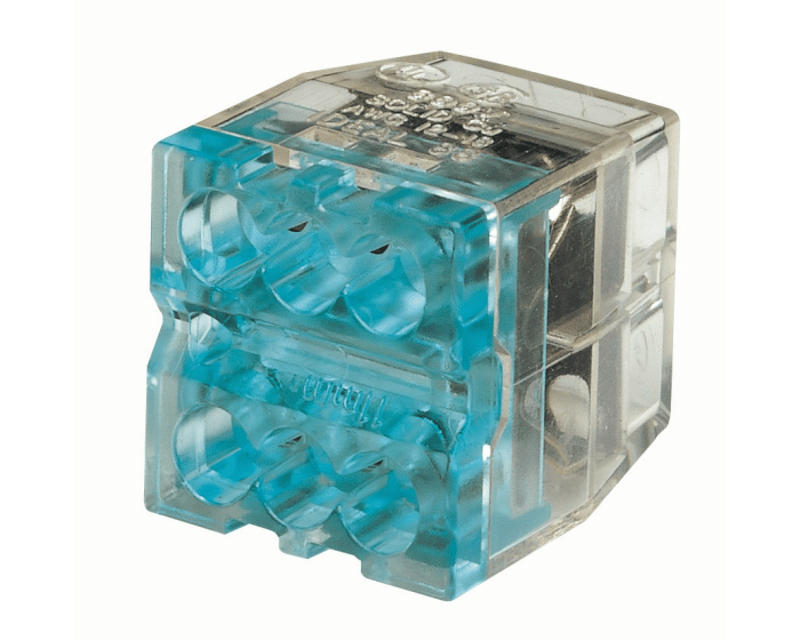

The IDEAL 30-1088J is a six port push-in wire connector designed for efficient electrical connections. It is ideal for use in residential, commercial, lighting retrofits, and any branch circuit wiring settings.
- Low insertion force for ease of use.
- Clear shell for visual verification of connections.
- Flame-retardant housing rated to 105 degrees Celsius.
Product Highlights
This connector is crafted with a no-twist design that reduces repetitive motion fatigue and simplifies installations. With a color-coded shell, it allows for quick identification of connections and wiring configurations.
Product Information
Standard Information
-
Brand: IDEAL
-
Model: 30-1088J
Technical Specifications
-
Size: 0.607 inches Length X 0.603 inches Width X 0.729 inches Height
-
Connection: 6 Stacked Ports
-
Wire Size: #12 AWG - #20 AWG Solid; #14 AWG - #16 AWG Stranded
-
Color: Blue
-
Voltage Rating: 600 V Maximum for Building Wire, 1000 V for Lighting Fixtures
-
Temperature Rating: 105 degrees Celsius
-
Application: Grounding and Bonding Applications
-
Standards: CSA C22.2 #188, UL 486C
