Ideal 30-1087J Push-In Connector 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire Solid/Stranded/Tin-Bonded Wire

Product Description

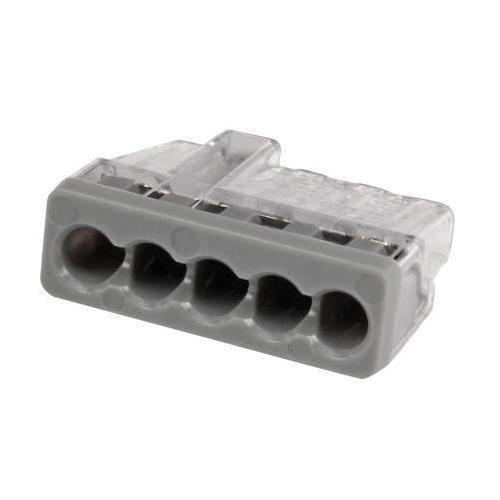

The IDEAL 30-1087J Push-In Connector accepts 20 to 12 AWG, 18 to 12 AWG, and 18 to 14 AWG solid, stranded, and tin-bonded wire. This connector is suitable for residential, light commercial, lighting retrofit, and pre-fab wiring systems. The low insertion force allows for easy wire connection. It features a polycarbonate construction.

• No-Twist connection reduces repetitive motion fatigue
• Low insertion force for fast and easy connections
• Compact size makes installation easy

Product Highlights

This push-in wire connector features a clear shell for visual verification and is UL Listed to 486C and CSA Certified to C22.2 #188.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-1087J

Technical Specifications

• Wire Gauge (AWG): 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG
• Wire Type: Solid/Stranded/Tin-Bonded Wire
• Material: Polycarbonate
• Voltage Rating: 600V (Building Wire), 1000V (Signs and Lighting Fixtures)
• Connection: 5 Ports
• Finish: Tin Plated
• Standard: CSA C22.2 #188, UL 486C, UL 467, RoHS
• Temperature Rating: 105 DEG C Shell Rated
• Type: Push-In
• Wiring Configuration: Solid, Stranded, Stranded (Tin Bonded)
• Termination Method: Push-in
• Number of Ports: 6
