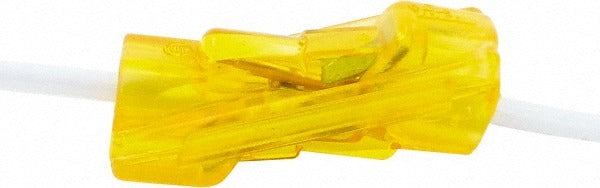

Ideal 30-1042 Push-in Wire Connector 18-12 Awg 100 Pack

Product Description

The IDEAL 30-1042 is a 2-port push-in wire connector designed for fast, tool-free termination of copper conductors ranging from 18 to 12 AWG. The push-in mechanism allows conductors to be inserted and locked without twisting, making it a practical choice for residential and light commercial wiring work. The orange color coding corresponds to its 18-to-12 AWG wire size range, helping technicians quickly identify the correct connector on the job. Each connector measures 0.97 inches in overall length, 0.4055 inches in width, and 0.43 inches in height. This SKU ships as a pack of 100 connectors.

The 30-1042 is suited for use in electrical panels, junction boxes, outlet boxes, and fixture connections where a compact, reliable splice is needed. Electricians and electrical contractors working on residential new construction, renovation wiring, or light commercial installations will find this connector a time-saving alternative to traditional twist-on wire nuts. The pack quantity of 100 supports volume use across a full project or service truck stock.

Key Features

• Push-in termination — no twisting or tools required for conductor insertion
• Accepts 18 to 12 AWG copper conductors
• Orange color coding identifies compatible wire size range at a glance
• Compact form factor: 0.97 inches long, 0.4055 inches wide, 0.43 inches tall
• CSA Certified and UL Listed for code-compliant installations
• Pack of 100 connectors per package

Compatibility

Designed for use with 18 to 12 AWG copper conductors. Suitable as a push-in wire connector replacement in standard residential and light commercial wiring applications where a 2-port splice is required.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements. Always de-energize the circuit at the breaker and verify zero voltage with a meter before making or breaking any connections. Strip conductors to the manufacturer-recommended strip length before inserting into the push-in ports. Do not exceed the rated AWG range — oversized or undersized conductors may not seat properly and can compromise connection integrity.
